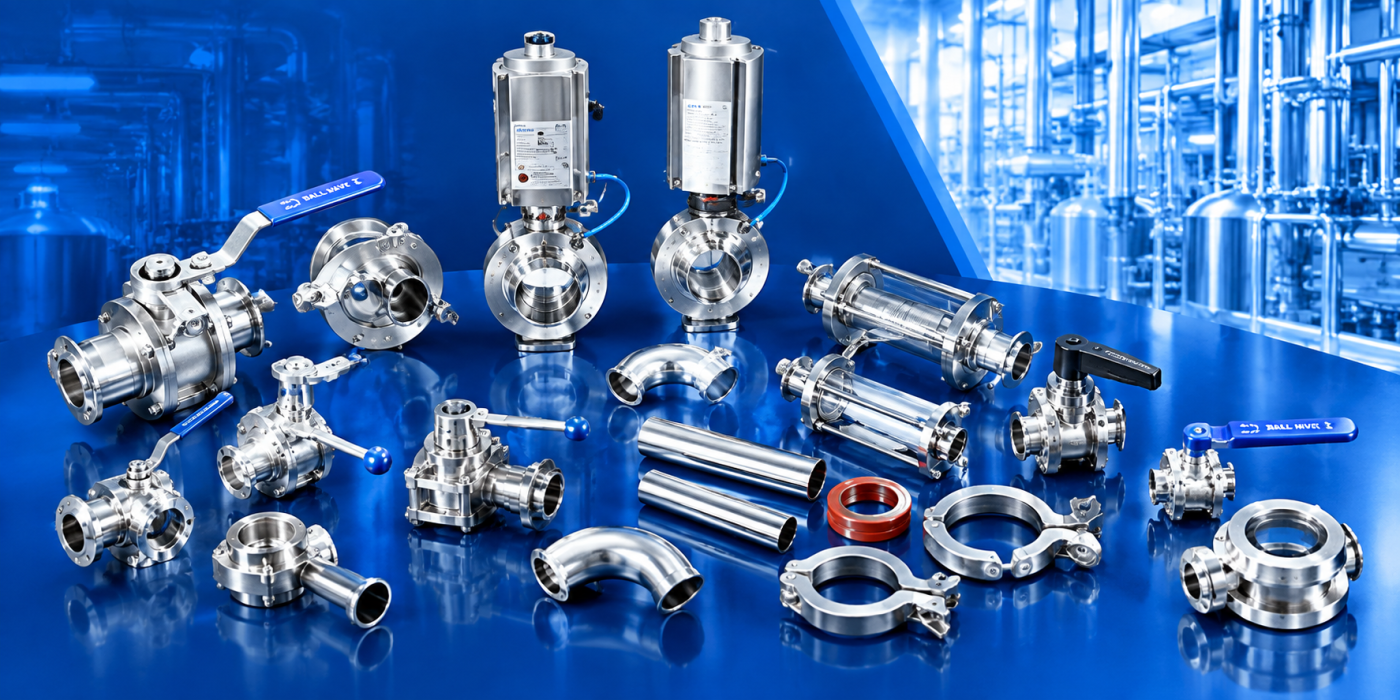

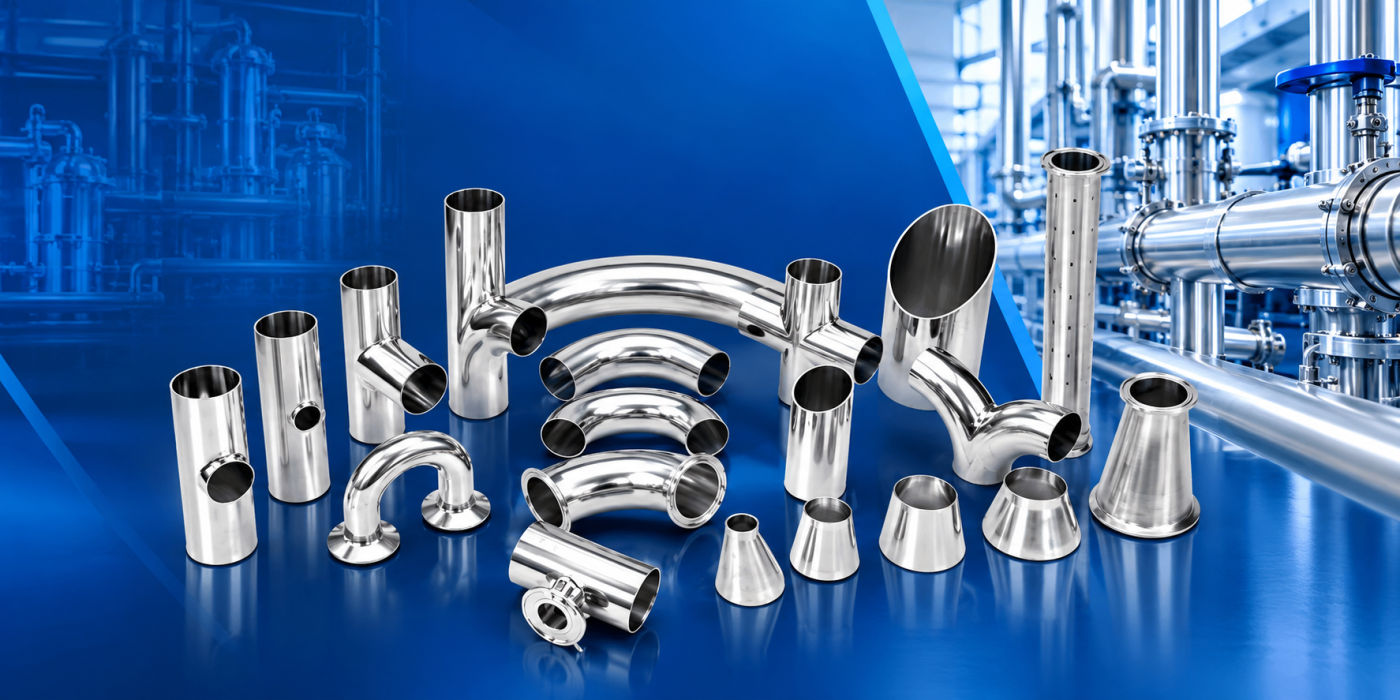

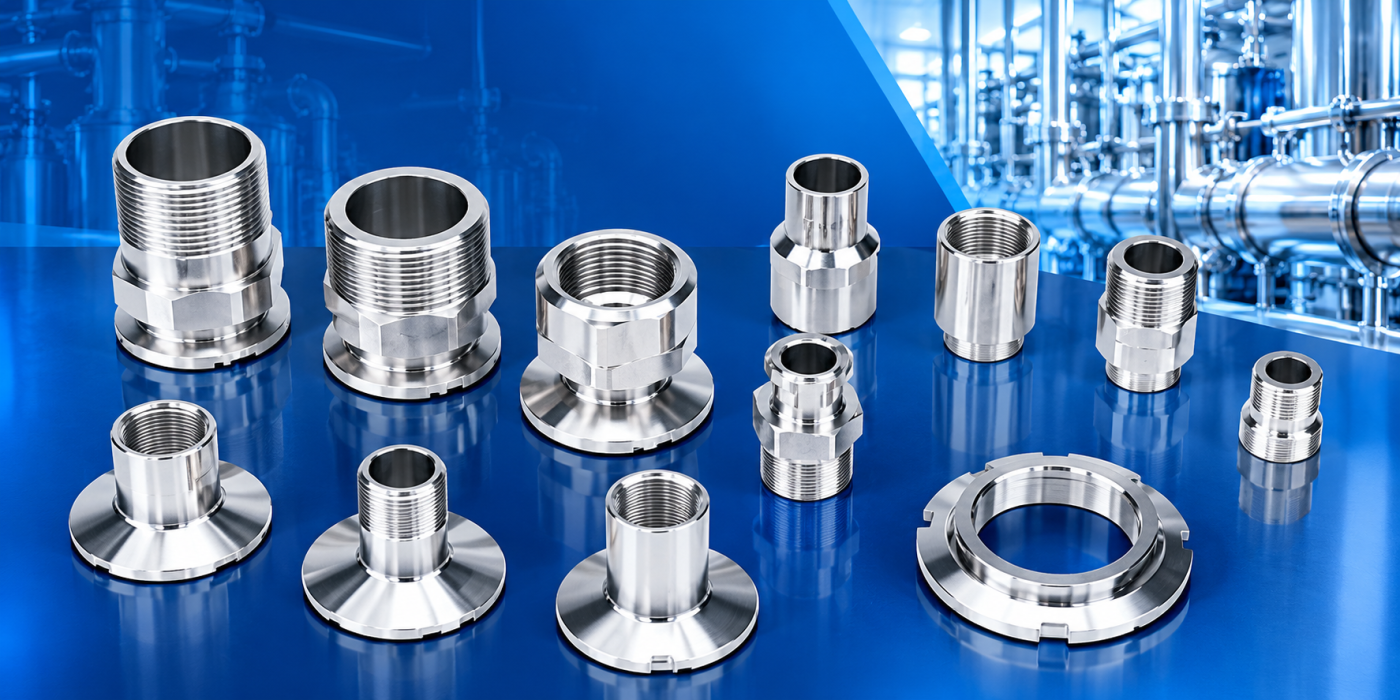

Connectors and accessories
Applications: Suitable for pharmaceutical, biomedical, cosmetic, and food processing applications.
Material: SUS304/316L
Pipeline flow control: DN25-100mm and 1″-4″
Connection methods: Welded, quick-connect, threaded
Manufacturing standards: 3A/ISO/DIN/FDA, etc.

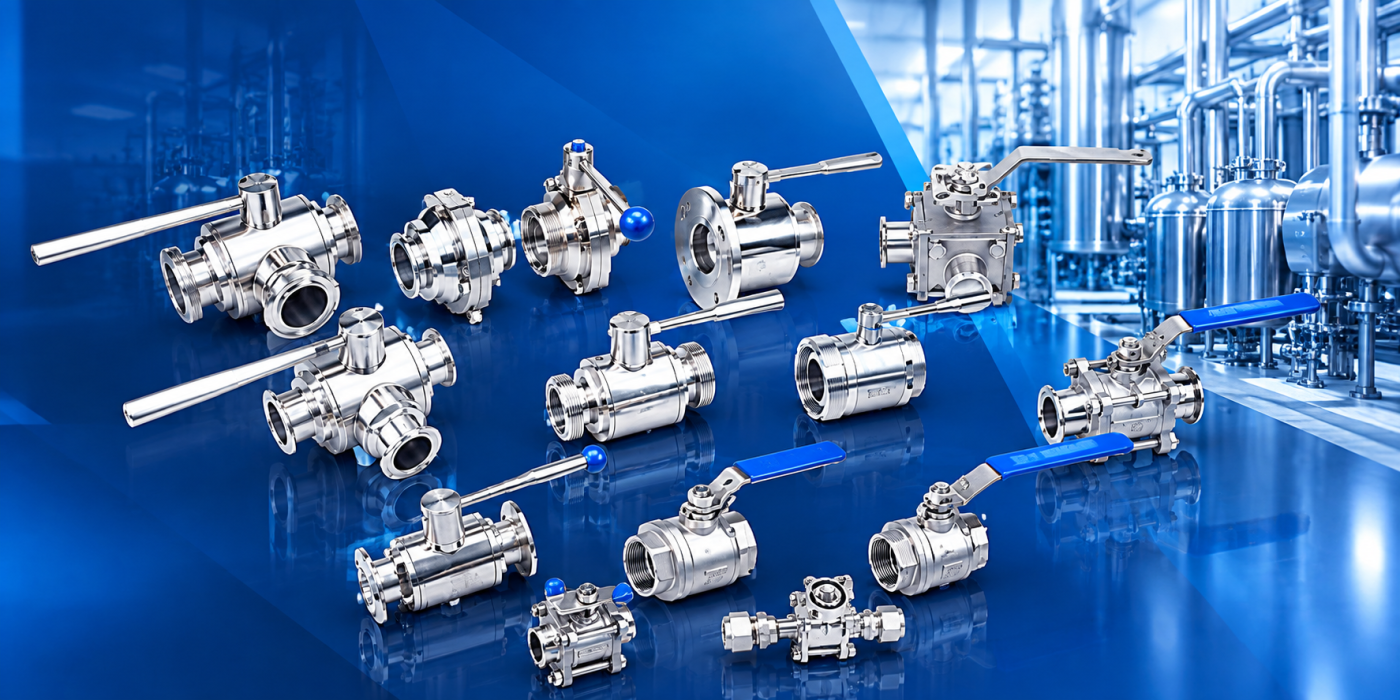

Ball valve
A sanitary ball valve is a valve whose opening and closing element is a ball. The ball rotates around the valve stem axis to open and close the valve, thereby controlling the flow of fluid. When the ball rotates to the position where it is in contact with the valve seat, the passage is closed; when the ball rotates 90° to the position where it is separated from the valve seat, the passage is opened, allowing fluid to pass through.
Product specifications: 1/2″~6″, DN10-DN150
Material: SS304/316L
Connection methods: clamp/welding/threaded

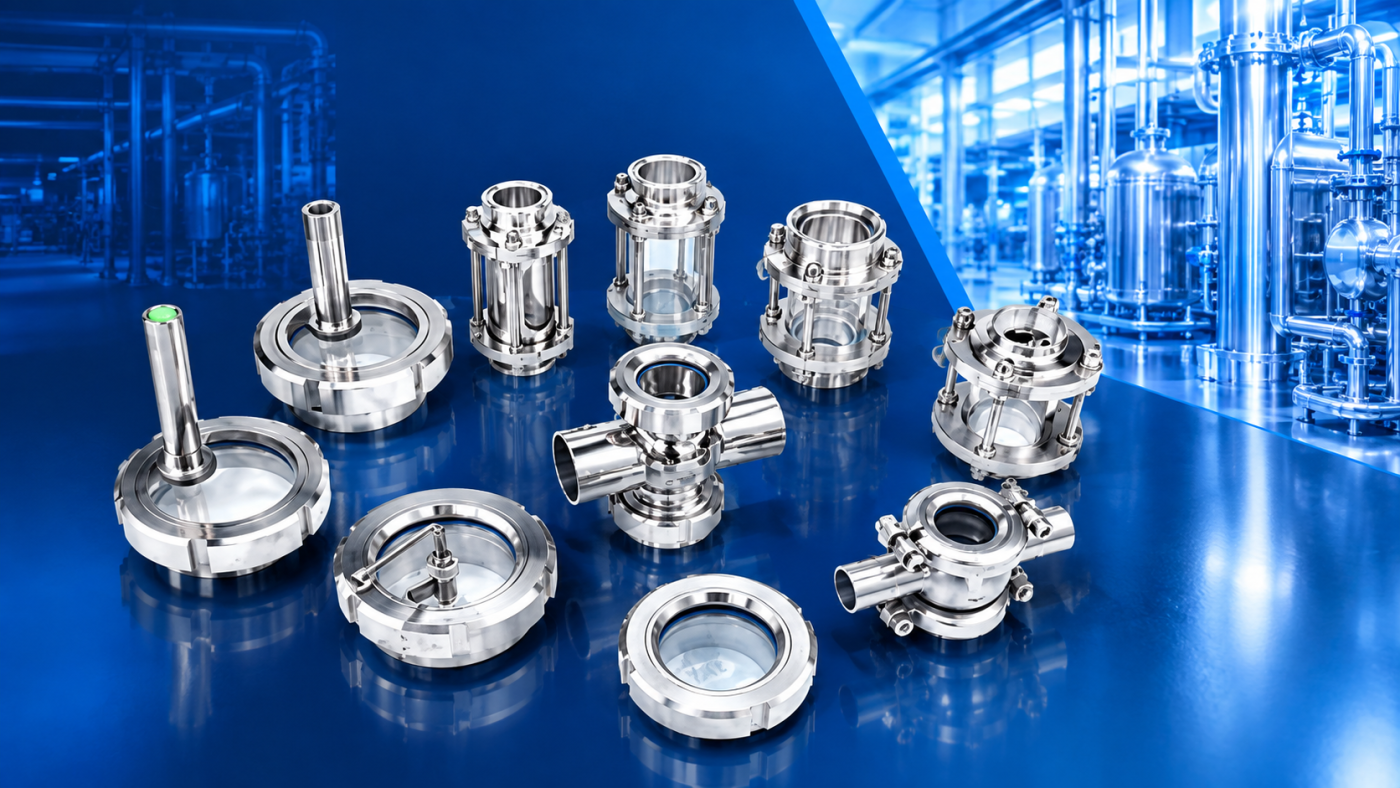

Sight Glasses
A sanitary sight glass is a device used to observe the flow of media such as liquids, gases, and steam. It is widely used in industries with extremely high hygiene requirements, such as food and pharmaceuticals.
Material: SS304/316L
Connection methods: flange/threaded/butt weld/clamp, etc.
Features: The entire surface is mirror-smooth with no dead corners, ensuring cleanliness and hygiene, meeting relevant hygiene standards, and effectively preventing media residue and bacterial growth.

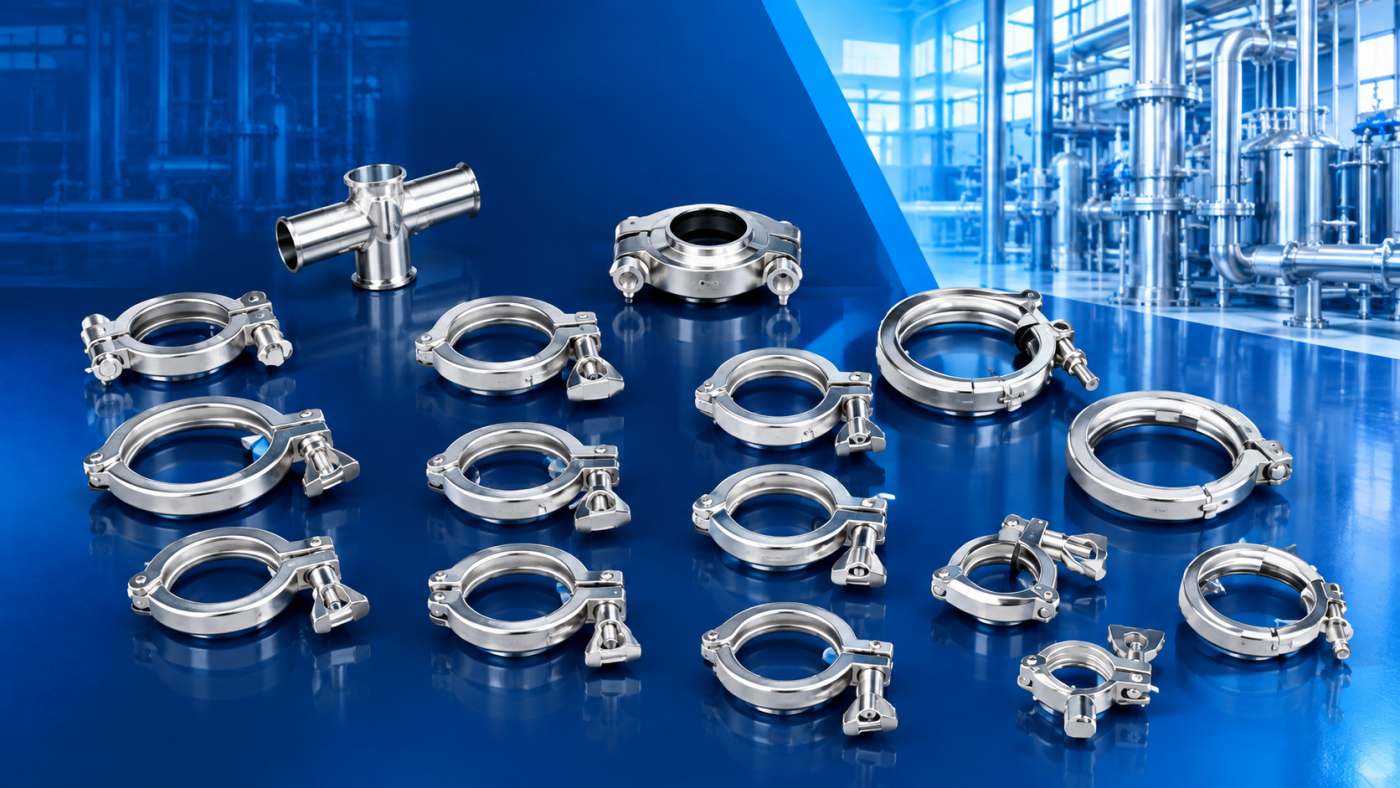

Clamp
The sanitary flange is a type of fastening component specifically designed for industries with strict hygiene requirements such as food, pharmaceuticals, dairy products, and cosmetics. It is mainly used in conjunction with sanitary joints, valves, and pipe fittings to enable rapid disassembly and sealing of the pipeline system.
Nominal diameter: DN15 – DN20
Work pressure: 0.6 – 2.5 MPa
Material: SS304/316L
Manufacturing standards: 3A/DIN/IDF/GB, etc.
Butterfly valve
The sanitary butterfly valve is a type of pipeline on-off control valve specially designed for industries with strict hygiene requirements such as food, pharmaceuticals, dairy products, and cosmetics. It achieves opening and closing by the rotation of the butterfly plate, featuring a compact structure, convenient operation, and easy cleaning. It can be adapted to CIP (Continuous In-Line Cleaning) and SIP (Continuous In-Line Sterilization) processes.
Product specifications: 1/2″ to 8″, DN10 – DN20
Connection method: welding / quick assembly / thread / flange / vacuum
Material: SS304/316L
Manufacturing standards: 3A/ISO/IDF/DIN/SMS/RJT, etc.

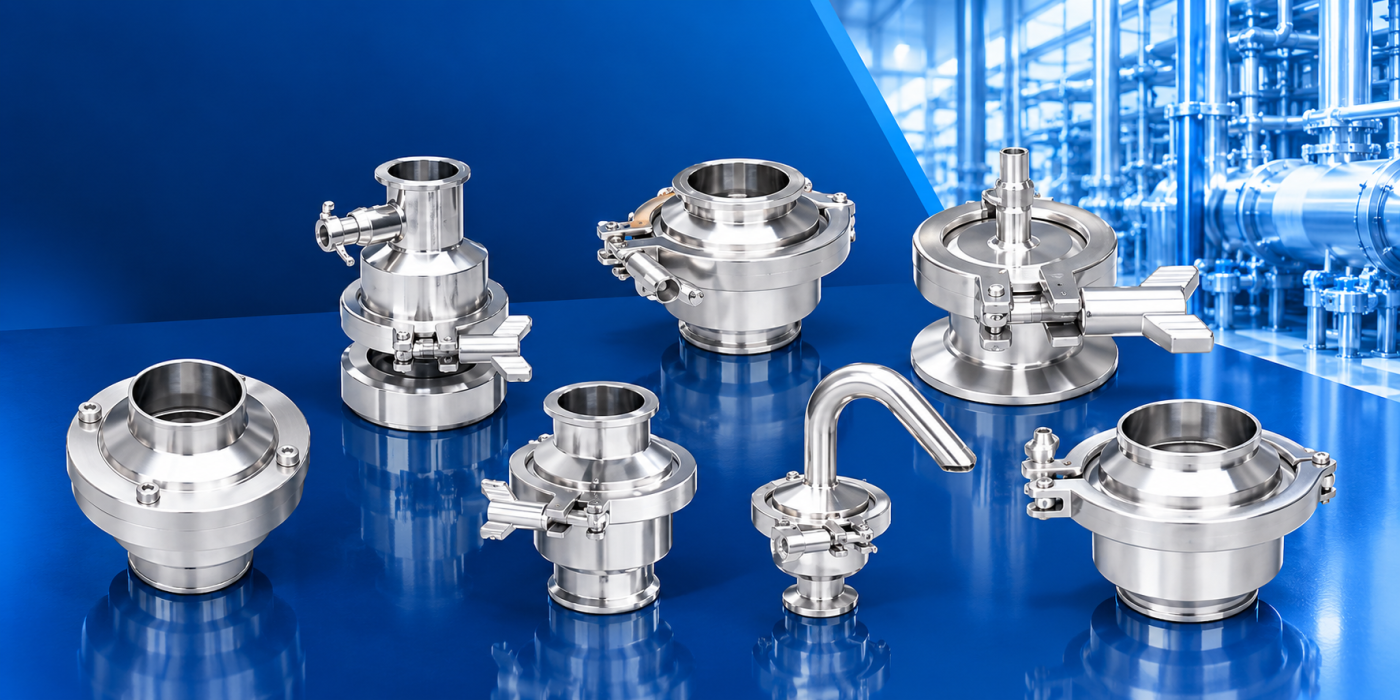

Check valve
The sanitary check valve is an automatic valve specially designed for industries with strict hygiene requirements such as food, pharmaceuticals, dairy products, and cosmetics. It is also known as a one-way valve or reverse flow valve. Its main function is to prevent the backflow of medium in the pipeline, avoiding the contamination, damage to equipment or disruption of the process caused by the backflow of the medium. It is compatible with CIP online cleaning and SIP online sterilization processes.
Material: SS304/316L
Manufacturing standards: ISO/DIN/IDF/SMS/3A, etc.
Connection method: Quick-fit clamp type / Socket welding type / Flange type

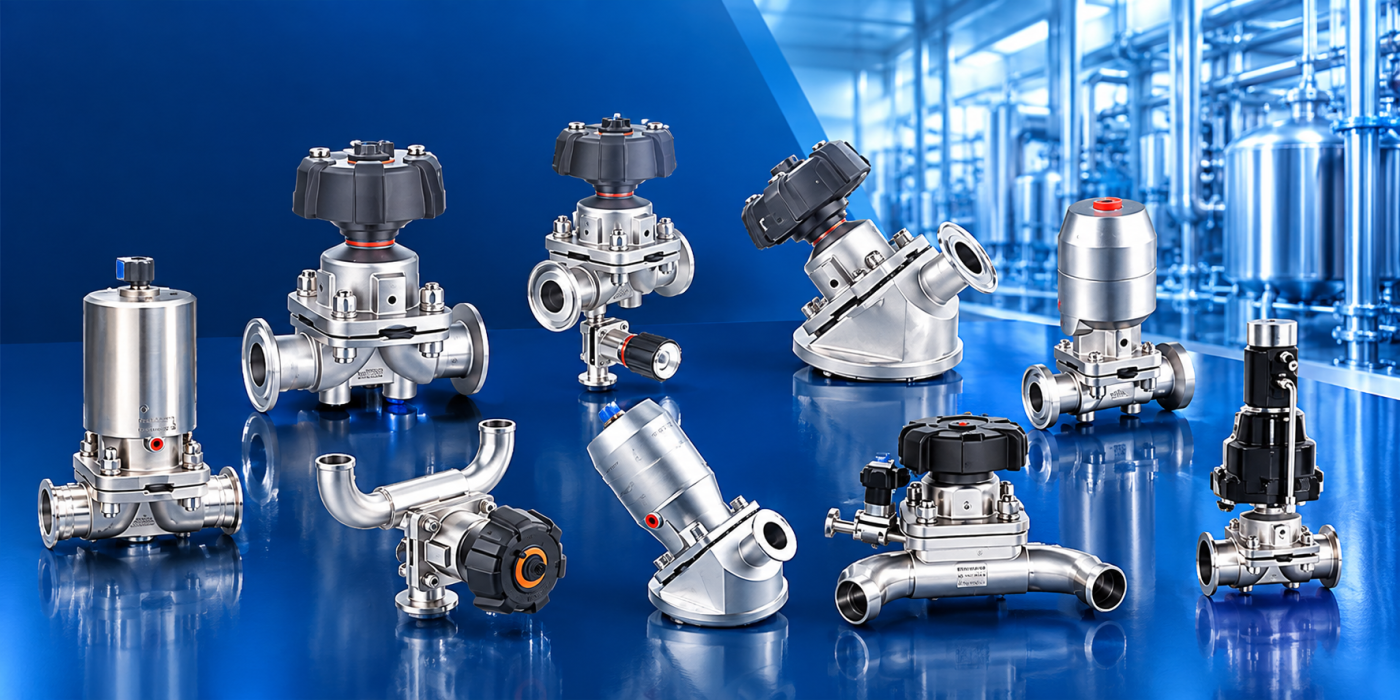

Diaphragm valve
The sanitary diaphragm valve is a type of pipeline control valve specifically designed for industries with extremely high hygiene requirements such as food, pharmaceuticals, dairy products, cosmetics, and biotechnology. Its core feature is to isolate the valve body cavity from the driving components through an elastic diaphragm, enabling non-leaking on-off control of the medium. It is fully compatible with CIP (Clean In Place) online cleaning and SIP (Steam In Place) online sterilization processes, eliminating medium residue and microbial contamination.
Product specifications: 1/2″ to 4″, DN15 – DN10
Connection method: Clamp/welding/Welding thread
Manufacturing standard: 3A/DIN/SMS/IDF/ISO

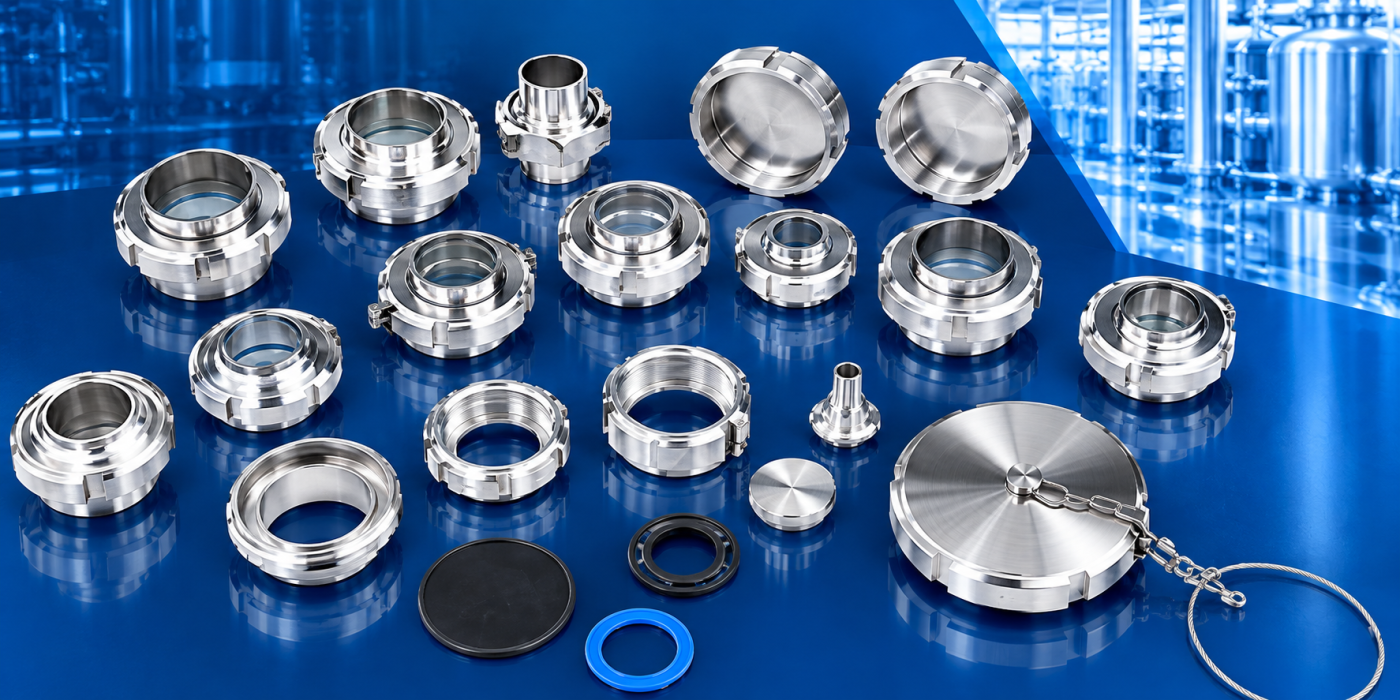

Active Connection
The union fitting, also known as “yinren” or “yunren”, is a commonly used pipe connection component that is convenient for installation and disassembly. It is mainly composed of a nut, a cap, and a straight joint.
Specification: DN15 – DN150 and 1″ – 6″
Manufacturing standards: ISO/DIN/SMS/3A/IDF/RJT, etc.
Material: SS304/316L
Product features: Beautiful appearance, smooth surface, resistant to acid and alkali, anti-corrosion, strong texture performance
Usage: The product is widely applied in various industrial sectors such as dairy products, food and beverage, beer, biopharmaceuticals, and daily chemicals

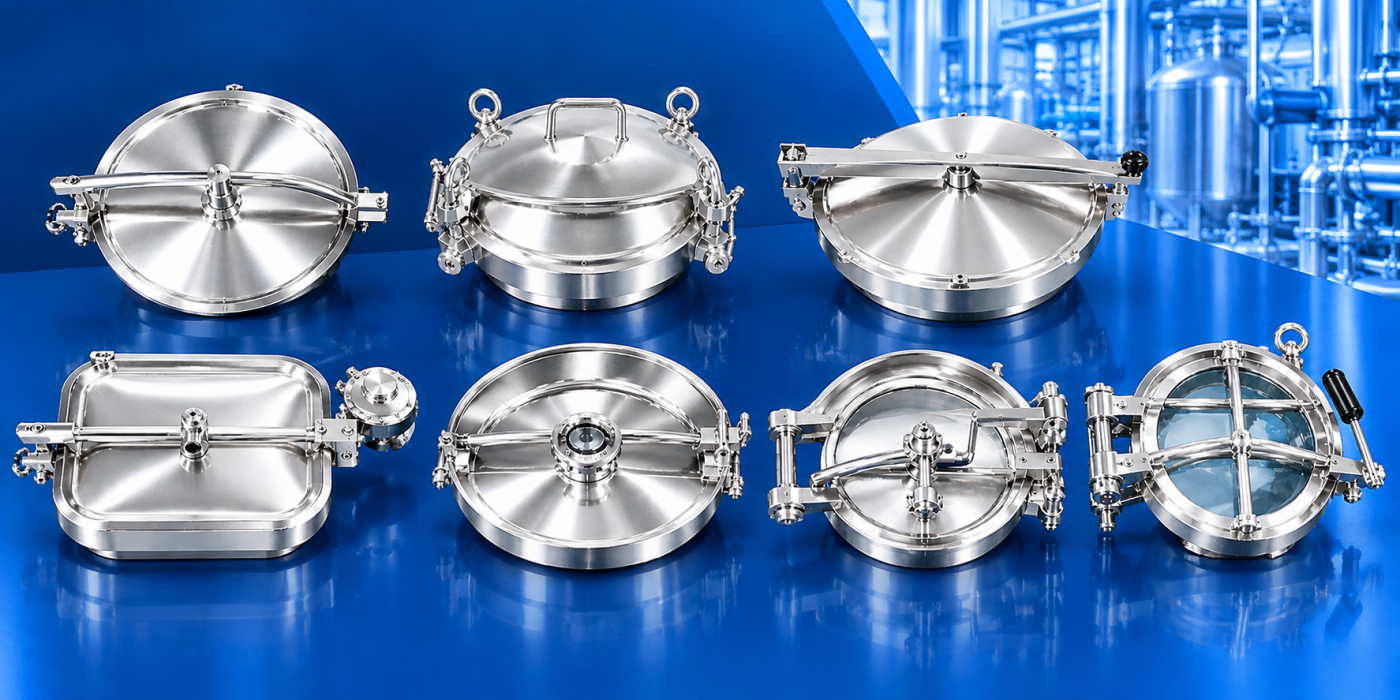

Manhole
Sanitary manhole is a specialized equipment used for pressure vessels and storage tanks in the fields of food, biopharmaceuticals, etc. It is made of SUS304 and 316L stainless steel materials to meet the requirements of special media. This device complies with GMP requirements and FDA quality monitoring standards, with a focus on seamless fluid channels and automatic emptying performance during the manufacturing process, making it suitable for steam cleaning needs.
Material: 304/316L
Internal surface treatment: 0.8 μ m-0.4um
External surface treatment: mirror polishing, matte finish, sandblasting treatment
Usage: Can be applied in industrial fields such as dairy products, beer, food, beverages, pharmaceuticals, biotechnology, etc
Types: atmospheric pressure type, pressure type with mirror, handwheel type, rectangular, elliptical, elliptical with mirror, hand hole, square, etc

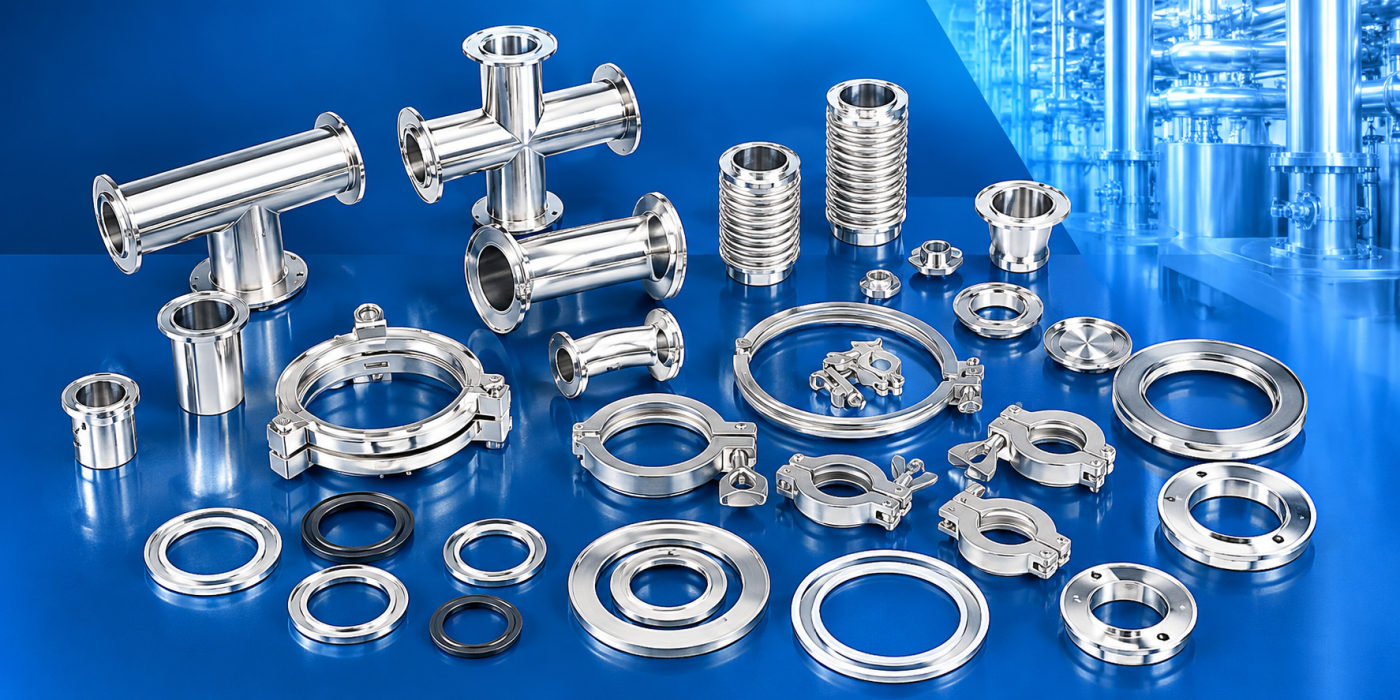

Vacuum valve fittings
Vacuum valve fittings are a set of specialized valves and pipe components designed for vacuum systems (where the pressure is lower than the standard atmospheric pressure). Their core functions include connecting and disconnecting vacuum pipelines, regulating flow, controlling pressure, and achieving pressure isolation. They are widely used in fields such as semiconductor manufacturing, vacuum coating, biomedicine, aerospace, scientific research, and experiments, where strict requirements for air tightness and cleanliness are imposed.
Material: 304/316L
Surface treatment: Electrolytic polishing / mechanical polishing, with surface roughness reaching Ra ≤ 0.8 μm, reducing gas adsorption and retention
Manufacturing standard: ISO/ASTM E159/GB, etc.
Working temperature: -20℃ to 150℃
