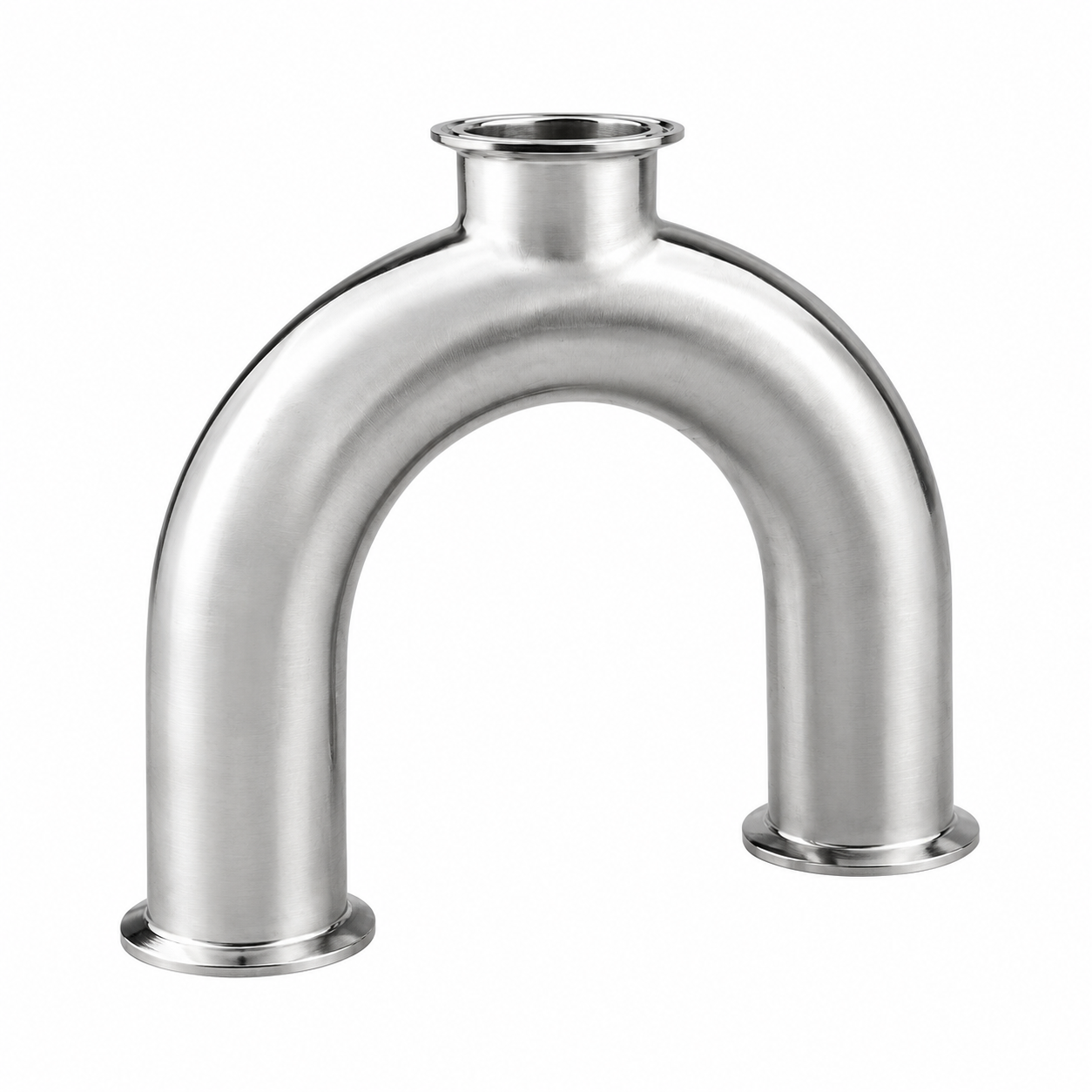

What Is a Card-Type U-Shaped Tee?
A card-type U-shaped tee is a three-way sanitary pipe fitting featuring a curved U-shaped body with a specialized card-type connection.
The U-shaped configuration provides a curved main flow path, while the additional branch connection allows the fitting to connect with another section of process piping.
The card-type connection is designed to provide a convenient method for installation, assembly, and maintenance in sanitary piping systems.
Stainless Steel Card-Type U-Shaped Tee Material
304 Stainless Steel
SS304 stainless steel provides good corrosion resistance, strength, and durability for general sanitary applications.
Typical applications include:
- Food processing
- Beverage production
- Brewing
- Water and liquid processing
- General sanitary piping
316L Stainless Steel
SS316L stainless steel provides enhanced corrosion resistance for demanding hygienic environments.
Typical applications include:
- Pharmaceutical manufacturing
- Biotechnology
- Dairy processing
- High-purity fluid handling
- Hygienic processing equipment
Key Features of Our Card-Type U-Shaped Tee
U-Shaped Curved Design
The curved U-shaped body provides a specialized flow path for sanitary piping layouts.
Card-Type Connection
The card-type connection provides a convenient solution for assembling and connecting sanitary piping components.
Three-Way Configuration
The fitting is designed to connect three sections of piping within a sanitary process system.
Hygienic Stainless Steel Construction
Stainless steel construction with smooth surface options supports hygienic fluid-handling applications.
Easy Installation and Maintenance
The card-type connection can make installation, disassembly, and maintenance more convenient compared with permanent welded connections.
SS304 and SS316L Options
Available in 304 and 316L stainless steel for different process requirements.
Customizable Specifications
Pipe diameter, branch size, connection configuration, surface finish, and other specifications can be customized.
Applications of Card-Type U-Shaped Tees
Card-type U-shaped sanitary tees can be used in:
- Food processing
- Beverage production
- Dairy processing
- Brewing systems
- Pharmaceutical manufacturing
- Biotechnology
- Cosmetics
- Hygienic fluid transfer
- Sanitary process piping
- Stainless steel processing equipment
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Card-Type U-Shaped Tee |
| Product Type | Stainless Steel Sanitary U-Shaped Tee |
| Material | SS304 / SS316L |
| Configuration | U-Shaped / Three-Way |
| Connection Type | Card-Type / Clamp-Type / Customized |
| Main Body | Curved U-Shaped Pipe |
| Surface Finish | Polished / Mirror Polished |
| Application | Food, Beverage, Dairy, Pharmaceutical, Biotechnology |
| Installation | Sanitary Process Piping |
| Customization | Available |
Why Choose Our Card-Type U-Shaped Tee?
Our card-type U-shaped tees combine a specialized curved configuration with a convenient sanitary connection design.
Key advantages include:
- U-shaped curved body
- Card-type connection
- Three-way pipeline configuration
- Convenient installation
- Easy maintenance and disassembly
- SS304 and SS316L material options
- Hygienic stainless steel construction
- Good corrosion resistance
- Polished surface options
- Custom specifications available
Card-Type U-Shaped Tee FAQ
What is a card-type U-shaped tee?
A card-type U-shaped tee is a stainless steel sanitary three-way fitting featuring a curved U-shaped body and a card-type connection.
What is a card-type U-shaped tee used for?
It is used to connect and route sanitary process pipelines where a curved U-shaped configuration and convenient connection method are required.
What materials are available?
Common materials include SS304 and SS316L stainless steel.
What are the benefits of a card-type connection?
A card-type connection can provide convenient assembly, disassembly, installation, and maintenance for compatible sanitary piping systems.
Can the card-type U-shaped tee be customized?
Yes. Pipe diameter, branch size, connection configuration, material, surface finish, and other dimensions can be customized according to project requirements.
Get a Quote for Card-Type U-Shaped Tees
Looking for a stainless steel card-type U-shaped tee for your sanitary piping system?
We can supply SS304 and SS316L sanitary U-shaped tees for food, beverage, dairy, pharmaceutical, biotechnology, and other hygienic process applications.
Contact us today for product dimensions, connection options, customization, and quotation.
