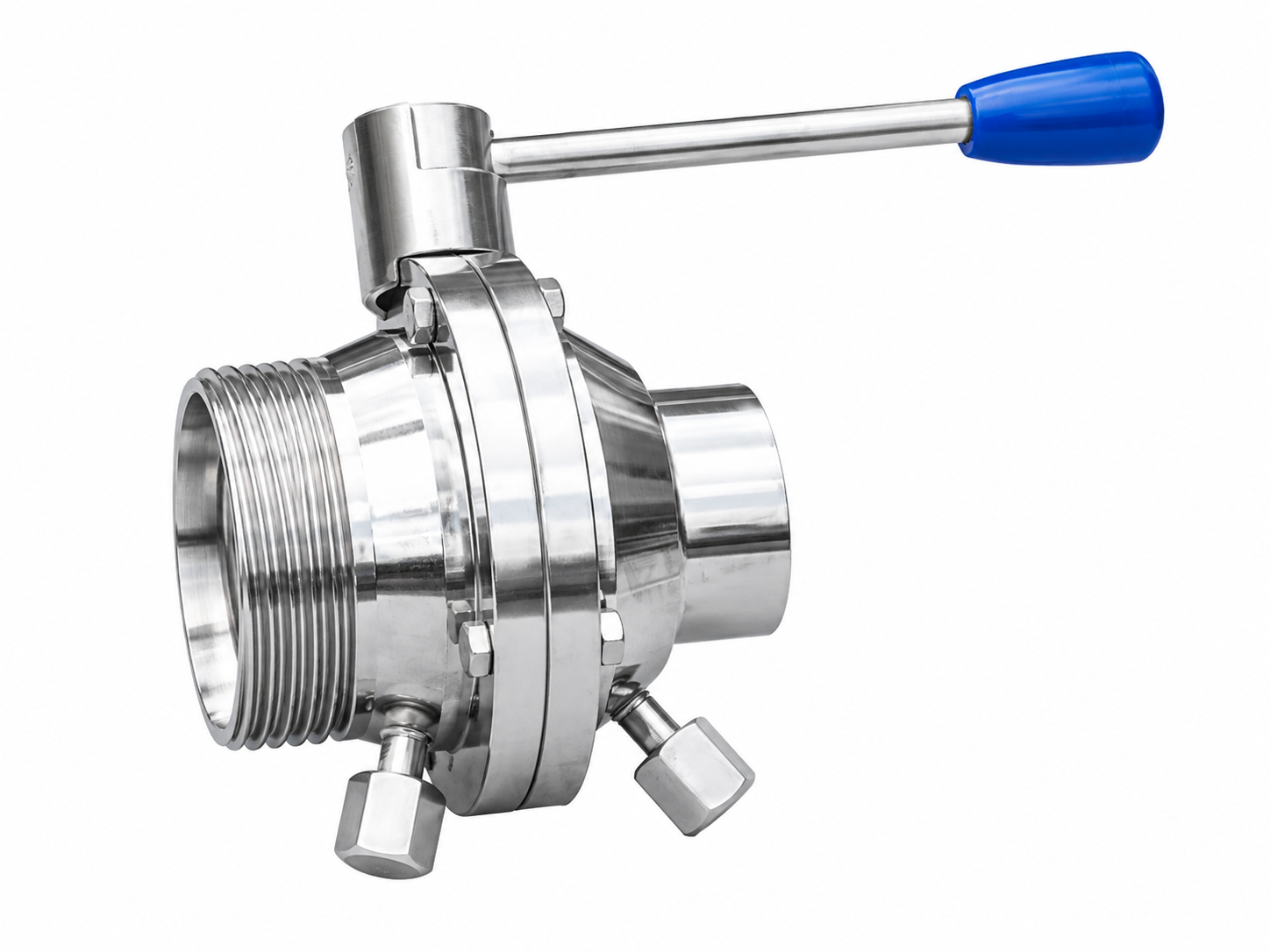

What Is a Non-Standard Butterfly Ball Valve?
A non-standard butterfly ball valve is a custom-engineered sanitary valve developed for applications requiring a special valve structure or configuration that differs from conventional butterfly or ball valves.
Because “non-standard” can refer to different construction details, the exact valve configuration should be confirmed according to the customer’s drawings, dimensions, connection requirements, and application.
304 Stainless Steel
SS304 offers good corrosion resistance and is suitable for general food, beverage, dairy, and sanitary process applications.
316L Stainless Steel
SS316L provides higher corrosion resistance and is commonly selected for pharmaceutical, biotechnology, chemical, and more demanding process environments.
Key Features
- Customized non-standard valve configuration
- Stainless steel SS304 or SS316L construction
- Compact valve structure
- Suitable for customized piping layouts
- Multiple connection configurations available
- Smooth and hygienic surface options
- Manual or actuated operation depending on design
- Suitable for special installation requirements
- Custom dimensions and specifications available
Applications
The non-standard butterfly ball valve can be used in:
- Food processing
- Beverage production
- Dairy processing
- Brewing systems
- Pharmaceutical manufacturing
- Biotechnology
- Cosmetics production
- Chemical process systems
- Hygienic process piping
- Customized industrial piping systems
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Non-Standard Butterfly Ball Valve |
| Product Type | Customized Stainless Steel Sanitary Valve |
| Material | SS304 / SS316L |
| Valve Configuration | Non-Standard / Customized |
| Valve Function | Flow Control / Shut-Off |
| Operation | Manual / Actuated, Depending on Configuration |
| Connection | Customized |
| Surface Finish | Polished / Sanitary Finish |
| Size | Customized |
| Application | Hygienic & Process Piping |
| Industries | Food, Beverage, Dairy, Brewing, Pharmaceutical, Biotechnology |
| Customization | Available |
Why Choose a Non-Standard Butterfly Ball Valve?
Standard sanitary valves are not suitable for every piping layout. A non-standard butterfly ball valve allows the valve structure, connection arrangement, dimensions, and operating configuration to be adapted to specific equipment or piping requirements.
For custom projects, technical drawings and application parameters should be confirmed before production to ensure proper fit and valve performance.
FAQ
What does “non-standard” mean for this valve?
It means the valve is manufactured according to a customized structure, dimension, connection, or operating requirement rather than a standard off-the-shelf configuration.
Is this valve available in SS304 and SS316L?
Yes. The valve can be manufactured using SS304 or SS316L stainless steel, depending on the application.
Can the connection be customized?
Yes. Connection dimensions and configurations can be customized according to the customer’s piping or equipment requirements.
Can I provide a drawing for customization?
Yes. A technical drawing, sample, dimensions, or installation requirements can be used to determine the appropriate customized valve configuration.
Is this valve suitable for sanitary applications?
Yes, when manufactured with appropriate sanitary materials, surface finishes, sealing components, and connections, it can be used in hygienic process systems.
Request a Quote
Looking for a non-standard butterfly ball valve for a special sanitary piping application?
Send us your drawing, dimensions, connection requirements, material, process medium, temperature, and pressure, and we can evaluate the customized configuration.
