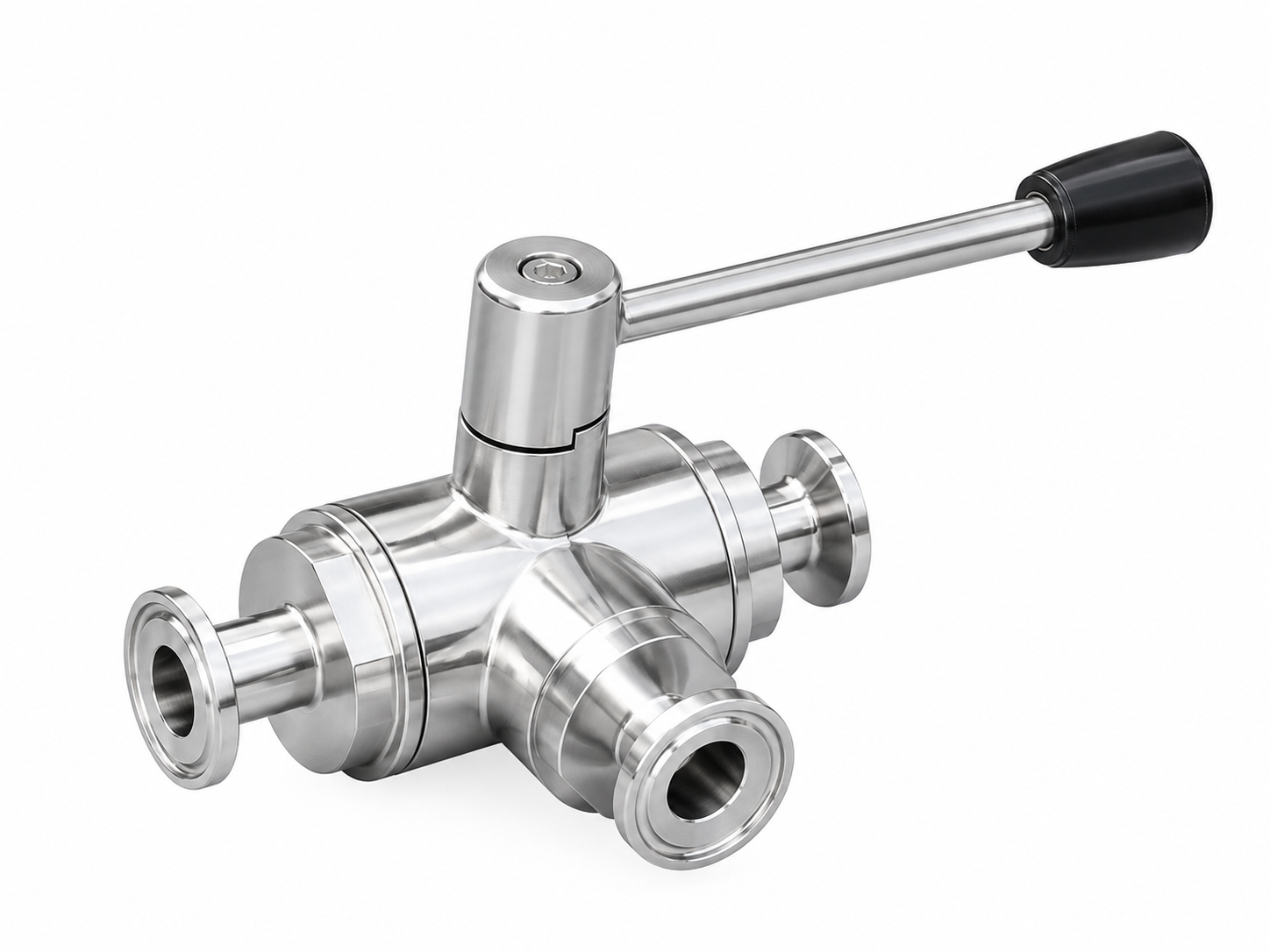

What Is a Vacuum Three-Way Ball Valve?
A vacuum three-way ball valve combines a three-way flow-control configuration with a design intended for vacuum applications.
The valve uses a rotating ball to control the connection between its three ports. Depending on the internal port arrangement, it can be used to switch, divert, or isolate flow between different sections of a process system.
For vacuum applications, the sealing components and valve configuration should be selected according to the required vacuum level and process conditions.
Material Options
SS304 Stainless Steel
SS304 provides good corrosion resistance and durability for general sanitary processing applications, including food, beverage, dairy, and brewing systems.
SS316L Stainless Steel
SS316L offers enhanced corrosion resistance and is commonly selected for pharmaceutical, biotechnology, and demanding hygienic process environments.
Key Features
- Three-way flow-control configuration
- Designed for vacuum process applications
- Three-port valve structure
- Stainless steel sanitary construction
- SS304 and SS316L material options
- Reliable ball-type shutoff and switching
- Suitable for flow diversion and isolation
- Polished or sanitary surface finish available
- Suitable for hygienic process piping
- Custom configurations available
Applications
Vacuum three-way ball valves can be used in:
- Vacuum processing systems
- Food processing equipment
- Beverage production
- Dairy processing
- Brewing equipment
- Pharmaceutical processing
- Biotechnology systems
- Vacuum tanks and vessels
- Hygienic fluid-transfer systems
- Stainless steel process piping
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Vacuum Three-Way Ball Valve |
| Product Type | Stainless Steel Sanitary Vacuum Ball Valve |
| Material | SS304 / SS316L |
| Valve Type | Three-Way Ball Valve |
| Configuration | Three-Way / Three-Port |
| Service | Vacuum / Hygienic Process |
| Connection | According to configuration |
| Surface Finish | Polished / Sanitary Finish |
| Operation | Manual / Compatible Actuation |
| Application | Food, Beverage, Dairy, Brewing, Pharmaceutical, Biotechnology |
| Customization | Available |
Why Choose a Vacuum Three-Way Ball Valve?
The combination of vacuum service capability and three-way flow control makes this valve suitable for process systems that require switching or diverting flow under vacuum conditions.
Its stainless steel construction provides durability and corrosion resistance, while the three-way configuration offers additional flexibility compared with a conventional two-way ball valve.
For vacuum systems, the actual vacuum rating and sealing configuration should be matched to the operating requirements of the equipment.
FAQ
1. What is a vacuum three-way ball valve?
It is a stainless steel three-way ball valve designed for flow control, switching, or isolation in vacuum and hygienic process systems.
2. What is the function of the three-way configuration?
The three-way design allows the valve to connect or isolate different piping routes and can be used for flow diversion or switching between process lines.
3. Is it suitable for sanitary applications?
Yes. With an appropriate hygienic design and surface finish, it can be used in food, beverage, dairy, pharmaceutical, and biotechnology process systems.
4. Is the valve available in SS304 and SS316L?
Yes. SS304 and SS316L stainless steel options can be supplied according to the application.
5. Can the vacuum specifications be customized?
Yes. Valve size, connection configuration, sealing materials, surface finish, and vacuum-service requirements can be specified according to the project.
Get a Quote
Looking for a stainless steel vacuum three-way ball valve?
Contact us for SS304 / SS316L options, valve sizes, three-way configurations, vacuum-service requirements, connection types, customization, and bulk pricing.
