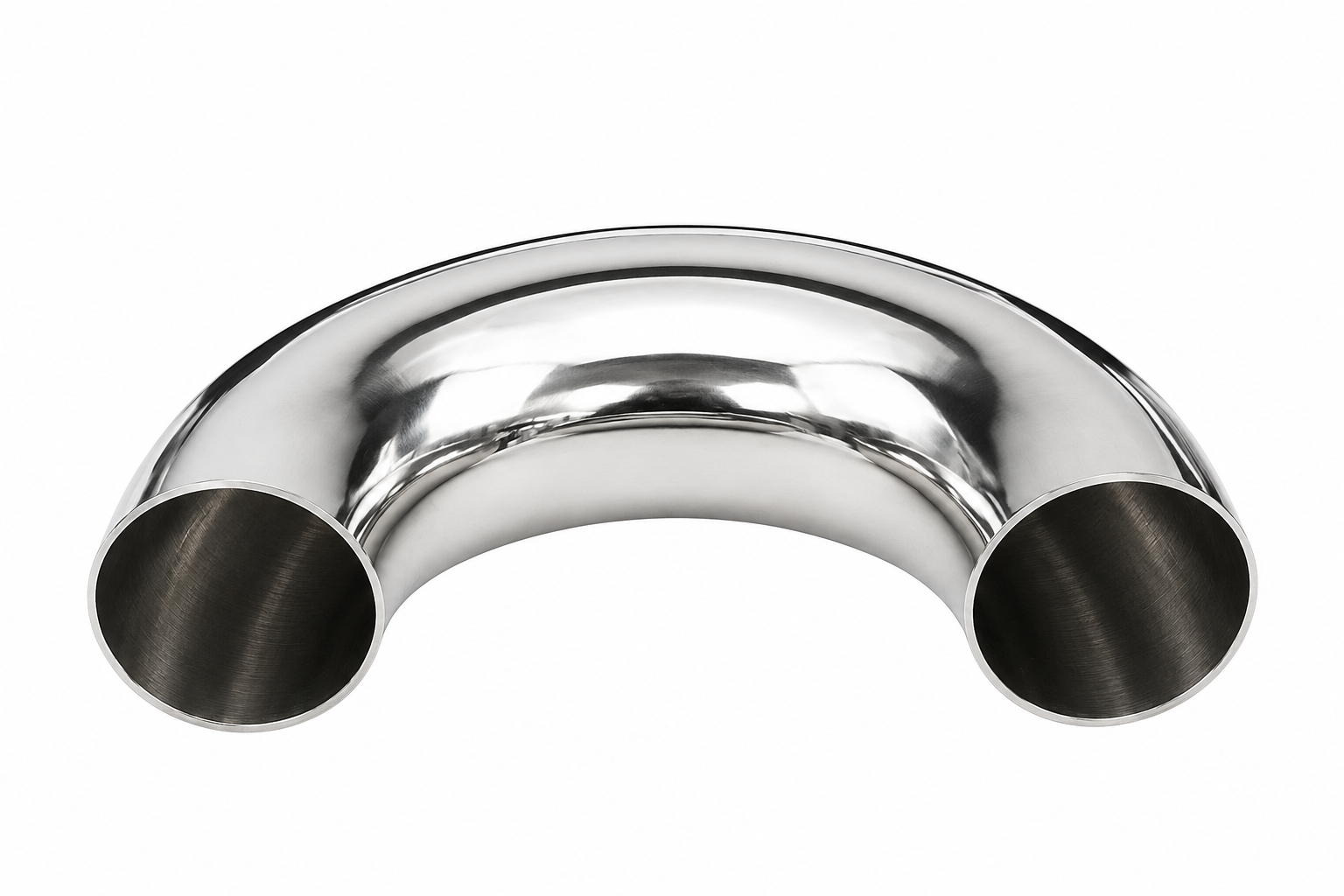

What Is a 180° Elbow?
A 180° Elbow is a sanitary pipe fitting used when a pipeline needs to make a complete 180-degree directional change.
The curved configuration allows two pipe sections to return in the same general direction, making it useful for return lines, circulation piping, and compact equipment layouts.
304 Stainless Steel
SS304 stainless steel provides good corrosion resistance and mechanical strength for general sanitary applications.
Typical uses include:
- Food processing
- Beverage production
- Dairy equipment
- Brewing systems
- General hygienic piping
316L Stainless Steel
SS316L stainless steel provides enhanced corrosion resistance for more demanding sanitary environments.
Typical applications include:
- Pharmaceutical processing
- Biotechnology
- High-purity process systems
- Chemical processing
- Hygienic process equipment
Key Features of 180° Elbow
- 180-degree directional change
- Curved U-shaped configuration
- Available in SS304 and SS316L stainless steel
- Smooth internal surface for hygienic applications
- Suitable for return and circulation piping
- Space-efficient piping configuration
- Easy integration with other sanitary pipe fittings
- Custom dimensions and connection configurations available
Applications
The 180° Elbow can be used in various hygienic process piping systems, including:
- Food processing
- Beverage production
- Dairy processing
- Brewing
- Pharmaceutical manufacturing
- Biotechnology
- Cosmetics
- Fluid circulation systems
- Return piping systems
- Stainless steel sanitary process equipment
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | 180° Elbow |
| Product Type | Stainless Steel Sanitary 180° Elbow |
| Angle | 180° |
| Configuration | U-Shaped / Return Bend |
| Material | SS304 / SS316L |
| Connection | Available according to configuration |
| Surface Finish | Polished / Mirror Polished |
| Application | Food, Beverage, Dairy, Brewing, Pharmaceutical, Biotechnology |
| Customization | Dimensions and connection options available |
Why Choose a 180° Elbow?
The 180° Elbow provides a practical solution for applications requiring a complete change in flow direction. Its curved return configuration can help create compact piping arrangements and is particularly useful for circulation and return lines.
The stainless steel construction and hygienic surface finish make it suitable for sanitary processing environments where cleanliness, corrosion resistance, and reliable fluid transfer are important.
180° Elbow vs. 90° Elbow
| Feature | 180° Elbow | 90° Elbow |
|---|---|---|
| Direction Change | 180° | 90° |
| Configuration | U-Shaped / Return | Curved 90° |
| Typical Use | Return and circulation lines | Directional change |
| Layout | Creates a return path | Changes pipeline direction |
| Application | Sanitary process and circulation systems | General sanitary piping |
FAQ
What is a 180° Elbow?
A 180° Elbow is a stainless steel sanitary pipe fitting that redirects a pipeline by 180 degrees, creating a U-shaped return path.
What materials are available?
The 180° Elbow can be supplied in SS304 and SS316L stainless steel.
Where are 180° Elbows used?
They are commonly used in food, beverage, dairy, brewing, pharmaceutical, biotechnology, and other hygienic process piping systems.
What is the main purpose of a 180° Elbow?
It is primarily used to create a complete directional return in a piping system, such as for circulation or return lines.
Can the 180° Elbow be customized?
Yes. Dimensions, connection configurations, surface finish, and other specifications can be customized according to project requirements.
Get a Quote for 180° Elbow
Looking for SS304 or SS316L 180° Elbows for your sanitary piping system?
Contact us for product specifications, dimensions, connection options, customization, and bulk pricing.
