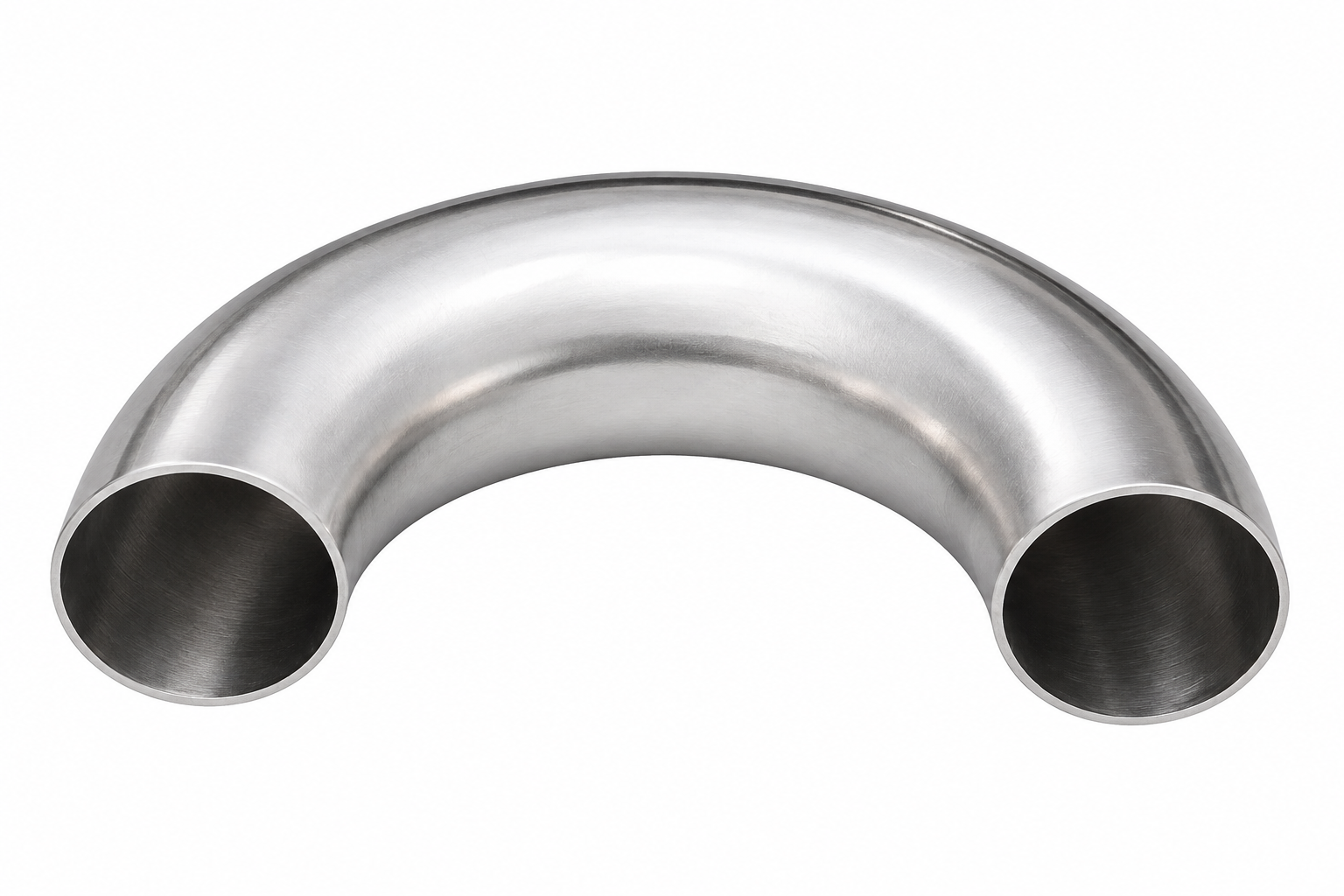

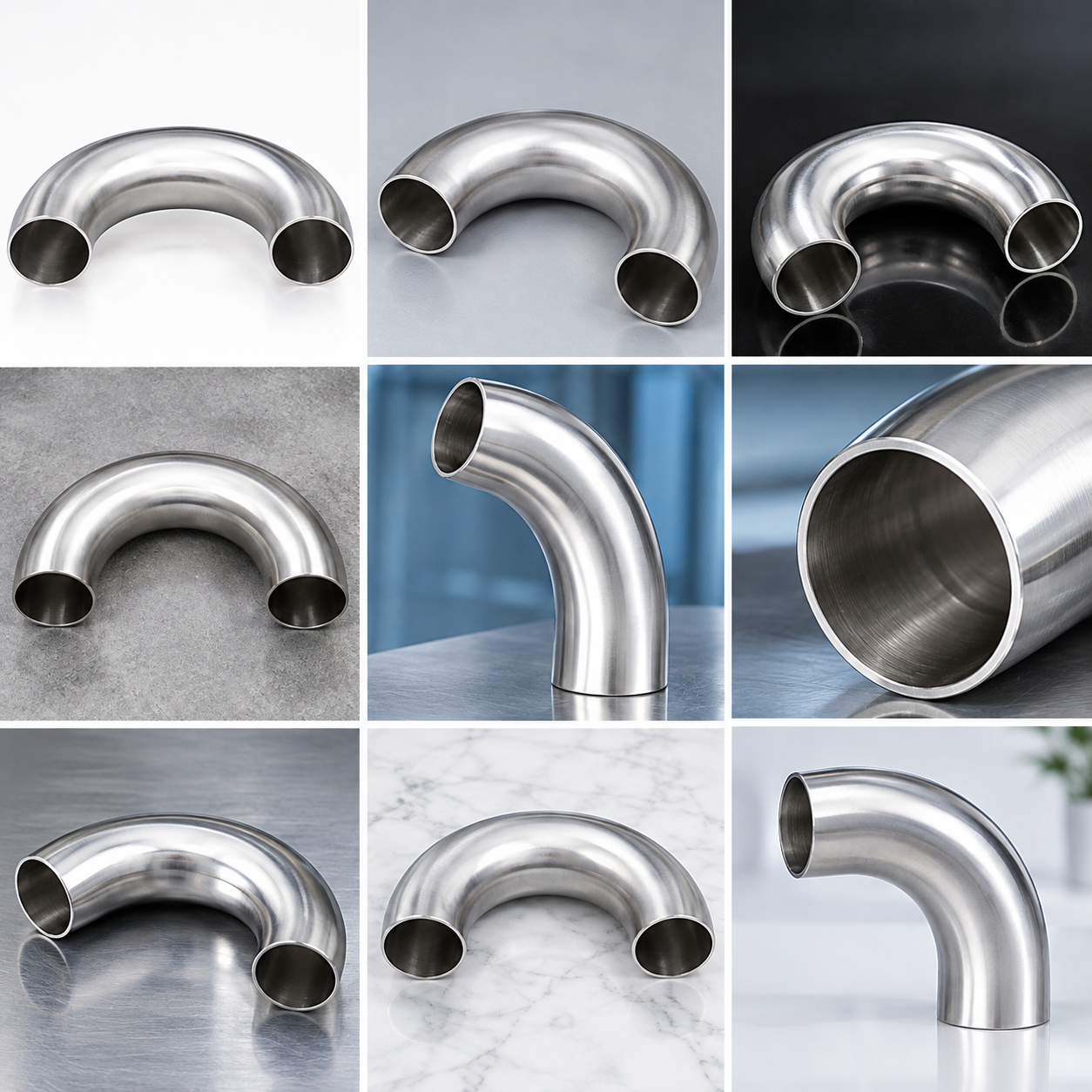

What Is a 180 Degree Elbow?
A 180 degree elbow is a pipe fitting designed to reverse the direction of a piping system by 180 degrees. It is commonly used to create a return path or U-shaped configuration within a process piping system.
The 180-degree design allows a pipeline to return in the opposite direction while maintaining a compact and organized piping layout. In hygienic processing applications, the fitting can be combined with stainless steel sanitary tubing, valves, pumps, tanks, and other process equipment.
Our sanitary 180 degree elbows are available with suitable sanitary connection options, including Tri-Clamp and Butt Weld connections, depending on the application and piping requirements.
Stainless Steel 180 Degree Elbow Material
Our 180 degree elbows are available in different stainless steel grades according to application requirements.
304 Stainless Steel
304 stainless steel sanitary elbows offer good corrosion resistance, durability, and cost efficiency. They are commonly used in food processing, beverage production, water systems, and general hygienic piping applications.
316L Stainless Steel
316L stainless steel sanitary elbows provide enhanced corrosion resistance and are commonly selected for demanding applications such as pharmaceutical manufacturing, biotechnology, chemical processing, and high-purity fluid systems.
The appropriate material should be selected according to the fluid, operating conditions, cleaning process, and application requirements.
Key Features of Our 180 Degree Elbow
180-Degree Return Design
The 180-degree configuration allows the pipeline to reverse direction, making it suitable for return lines and U-shaped sanitary piping layouts.
Hygienic Design
The smooth internal surface and sanitary construction help reduce product buildup and facilitate cleaning and maintenance.
High-Quality Stainless Steel
Available in SS304 and SS316L, our stainless steel sanitary pipe fittings provide durability and corrosion resistance for a wide range of hygienic applications.
Reliable Pipeline Connection
The fitting can be integrated with stainless steel sanitary tubing and other hygienic components to create a reliable process piping system.
Multiple Connection Options
Depending on the application, the 180 degree elbow can be supplied with:
- Tri-Clamp Connection
- Butt Weld Connection
- Sanitary Clamp Connection
- Customized Connections
Flexible Specifications
Different sizes, wall thicknesses, surface finishes, connection configurations, and other specifications can be supplied according to project requirements.
Applications of 180 Degree Elbows
Stainless steel 180 degree elbows are widely used in hygienic process piping systems, including:
- Food Processing
- Beverage Processing
- Dairy Processing
- Brewing and Brewery Systems
- Pharmaceutical Manufacturing
- Biotechnology and Bioprocessing
- Cosmetic Manufacturing
- Hygienic Process Piping
- High-Purity Fluid Processing
These sanitary pipe fittings can be used for return lines, circulation systems, equipment connections, and other applications where a 180-degree change in pipeline direction is required.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | 180 Degree Elbow |
| Product Type | Stainless Steel Sanitary Pipe Fitting |
| Material | SS304 / SS316L |
| Elbow Angle | 180° |
| Connection | Tri-Clamp / Butt Weld |
| Surface Finish | Polished / Mirror Polished |
| Application | Food, Beverage, Dairy, Pharmaceutical, Biotechnology |
| Customization | Available |
Dimensions, standards, surface roughness, connection types, and other specifications can be customized according to project requirements.
Why Choose Our Stainless Steel 180 Degree Elbow?
Choosing the right sanitary pipe fitting is important for maintaining the hygiene, reliability, and efficiency of a process piping system.
Our stainless steel 180 degree elbows are designed for hygienic process applications and provide a practical solution for creating return sections and compact piping configurations.
With SS304 and SS316L stainless steel options, smooth sanitary surfaces, and flexible connection configurations, these fittings can be integrated into a wide range of food, beverage, dairy, pharmaceutical, and biotechnology process piping systems.
For projects requiring 316L sanitary pipe fittings, stainless steel 180 degree elbows, sanitary return elbows, Tri-Clamp fittings, or welded sanitary fittings, contact us for product specifications, dimensions, technical information, and customized solutions.
Frequently Asked Questions
What is a 180 degree elbow?
A 180 degree elbow is a pipe fitting used to reverse the direction of a pipeline by 180 degrees. It is commonly used to create return lines and U-shaped piping configurations.
What is a sanitary 180 degree elbow used for?
A sanitary 180 degree elbow is used in hygienic process piping systems where a pipeline needs to return in the opposite direction. It is commonly found in food, beverage, dairy, pharmaceutical, and biotechnology applications.
What material is used for stainless steel 180 degree elbows?
Stainless steel 180 degree elbows are commonly manufactured from 304 stainless steel or 316L stainless steel. The appropriate grade depends on the application and operating environment.
Are 180 degree elbows available with Tri-Clamp connections?
Yes. Tri-Clamp 180 degree elbows can be supplied for hygienic process piping applications where convenient installation, cleaning, inspection, and maintenance are required.
Can the 180 degree elbow be customized?
Yes. Product dimensions, material grades, connection types, surface finishes, and other specifications can be customized according to project requirements.
Get a Quote for 180 Degree Elbows
Looking for reliable stainless steel sanitary pipe fittings for your next project?
Contact us for 180 degree elbow specifications, product dimensions, material options, connection types, surface finishes, and customized sanitary piping solutions.
