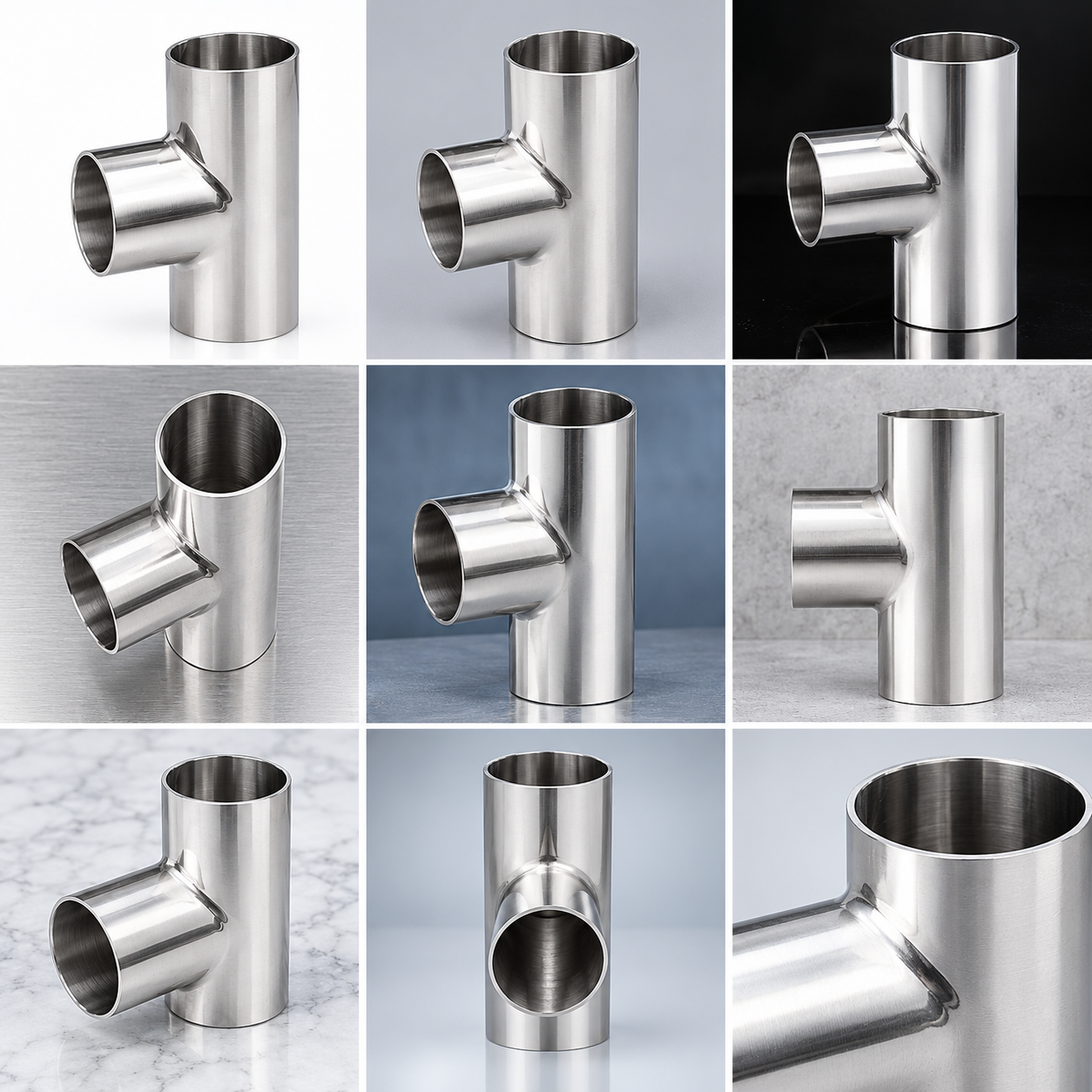

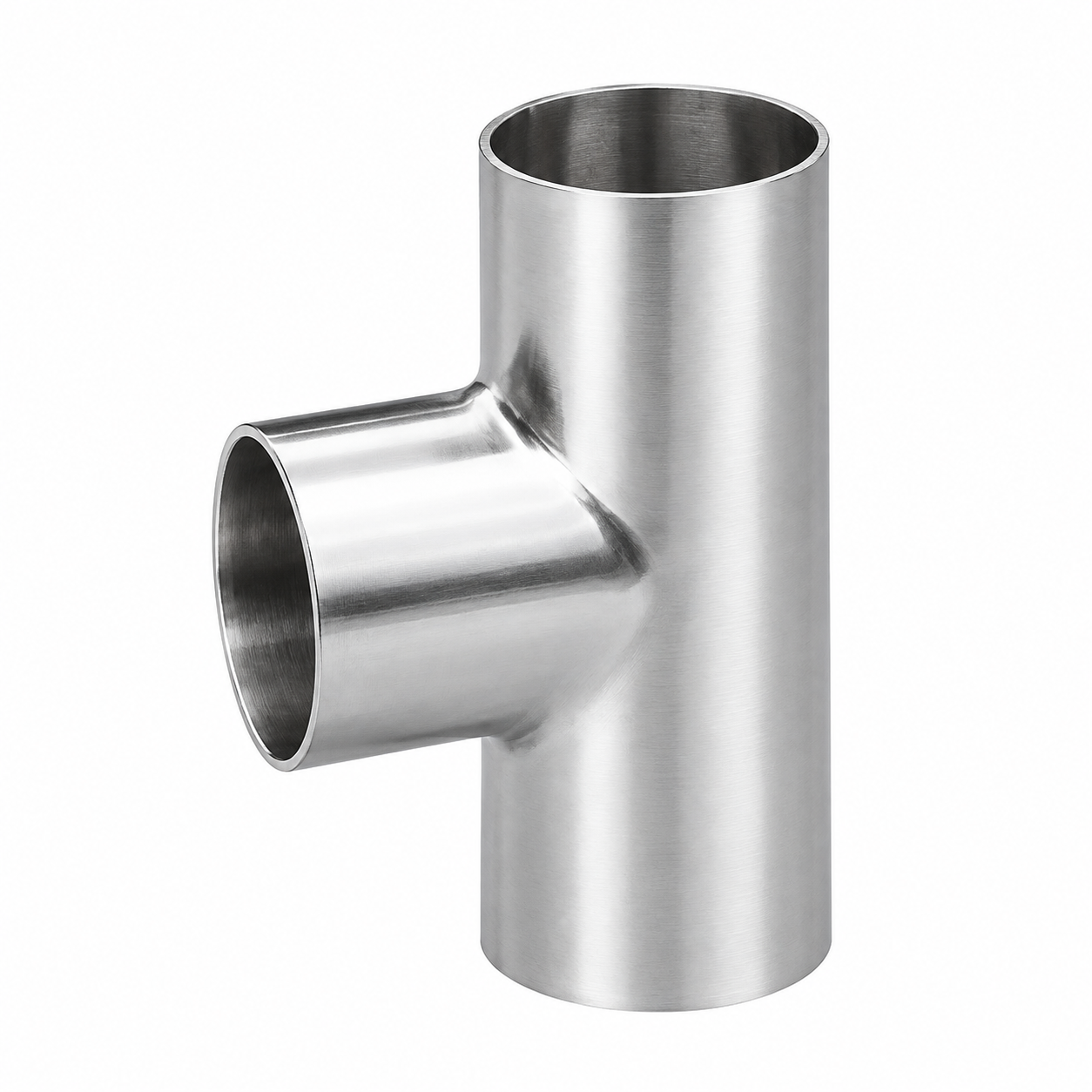

What Is a T-Shaped Three-Way Junction?
A T-shaped three-way junction is a pipe fitting with three connection points arranged in a T-shaped configuration. It is designed to connect three sections of piping and is commonly used to divide, combine, or redirect fluid flow within a sanitary process piping system.
The three-way configuration provides flexibility when designing complex piping layouts. Depending on the system design, a sanitary tee can be used as a branch connection for process lines, equipment connections, circulation systems, and fluid distribution applications.
Our sanitary three-way tee fittings feature smooth internal surfaces and can be supplied with different sanitary connection options, including Tri-Clamp and Butt Weld connections.
Stainless Steel T-Shaped Three-Way Junction Material
Our T-shaped three-way junctions are available in different stainless steel grades according to application requirements.
304 Stainless Steel
304 stainless steel sanitary tees provide good corrosion resistance, durability, and cost efficiency. They are commonly used in food processing, beverage production, water systems, and general hygienic piping applications.
316L Stainless Steel
316L stainless steel sanitary tees provide enhanced corrosion resistance and are commonly selected for demanding applications such as pharmaceutical manufacturing, biotechnology, chemical processing, and high-purity fluid systems.
The appropriate material should be selected according to the fluid, operating conditions, cleaning process, and application requirements.
Key Features of Our T-Shaped Three-Way Junction
T-Shaped Three-Way Design
The T-shaped configuration provides three connection points, making the fitting suitable for branching, distributing, or combining pipelines within a sanitary process system.
Hygienic Design
The smooth internal surface and sanitary construction help reduce product buildup and facilitate cleaning and maintenance.
High-Quality Stainless Steel
Available in SS304 and SS316L, our stainless steel sanitary pipe fittings provide durability and corrosion resistance for a wide range of hygienic applications.
Flexible Pipeline Configuration
The three-way design allows process piping systems to be arranged efficiently and provides flexibility when connecting multiple pipelines or pieces of processing equipment.
Multiple Connection Options
Depending on the application, the T-shaped three-way junction can be supplied with:
- Tri-Clamp Connection
- Butt Weld Connection
- Sanitary Clamp Connection
- Customized Connections
Flexible Specifications
Different sizes, wall thicknesses, surface finishes, connection configurations, and other specifications can be supplied according to project requirements.
Applications of T-Shaped Three-Way Junctions
Stainless steel sanitary tee fittings are widely used in hygienic process piping systems, including:
- Food Processing
- Beverage Processing
- Dairy Processing
- Brewing and Brewery Systems
- Pharmaceutical Manufacturing
- Biotechnology and Bioprocessing
- Cosmetic Manufacturing
- Hygienic Process Piping
- High-Purity Fluid Processing
These sanitary three-way fittings can be used to create branch lines, distribute process fluids, connect equipment, and build efficient hygienic piping systems.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | T-Shaped Three-Way Junction |
| Product Type | Stainless Steel Sanitary Tee Fitting |
| Material | SS304 / SS316L |
| Configuration | T-Shaped / Three-Way |
| Connection | Tri-Clamp / Butt Weld |
| Surface Finish | Polished / Mirror Polished |
| Application | Food, Beverage, Dairy, Pharmaceutical, Biotechnology |
| Customization | Available |
Dimensions, standards, surface roughness, connection types, and other specifications can be customized according to project requirements.
Why Choose Our Stainless Steel Sanitary Tee?
Choosing the right sanitary pipe fitting is important for maintaining the hygiene, reliability, and efficiency of a process piping system.
Our stainless steel sanitary tee fittings combine high-quality stainless steel construction with a practical three-way design, providing a reliable solution for branching and connecting sanitary process pipelines.
With SS304 and SS316L stainless steel options, smooth sanitary surfaces, and flexible connection configurations, these fittings can be integrated into a wide range of food, beverage, dairy, pharmaceutical, and biotechnology process piping systems.
For projects requiring 316L sanitary tees, stainless steel sanitary pipe fittings, sanitary three-way junctions, Tri-Clamp fittings, or welded sanitary fittings, contact us for product specifications, dimensions, technical information, and customized solutions.
Frequently Asked Questions
What is a T-shaped three-way junction?
A T-shaped three-way junction is a pipe fitting with three connection points arranged in a T-shaped configuration. It is used to connect three pipelines and distribute, combine, or redirect fluid flow.
What is a sanitary tee fitting used for?
A sanitary tee fitting is used to create a branch connection within hygienic process piping systems. It is commonly used in food, beverage, dairy, pharmaceutical, and biotechnology applications.
What material is used for stainless steel sanitary tees?
Stainless steel sanitary tees are commonly manufactured from 304 stainless steel or 316L stainless steel. The appropriate grade depends on the application and operating environment.
Are sanitary tee fittings available with Tri-Clamp connections?
Yes. Tri-Clamp sanitary tee fittings are commonly used in hygienic process piping systems because they provide convenient installation, disassembly, cleaning, and maintenance.
Can the T-shaped three-way junction be customized?
Yes. Product dimensions, material grades, connection types, surface finishes, and other specifications can be customized according to project requirements.
