What Is a U-Shaped Tee?

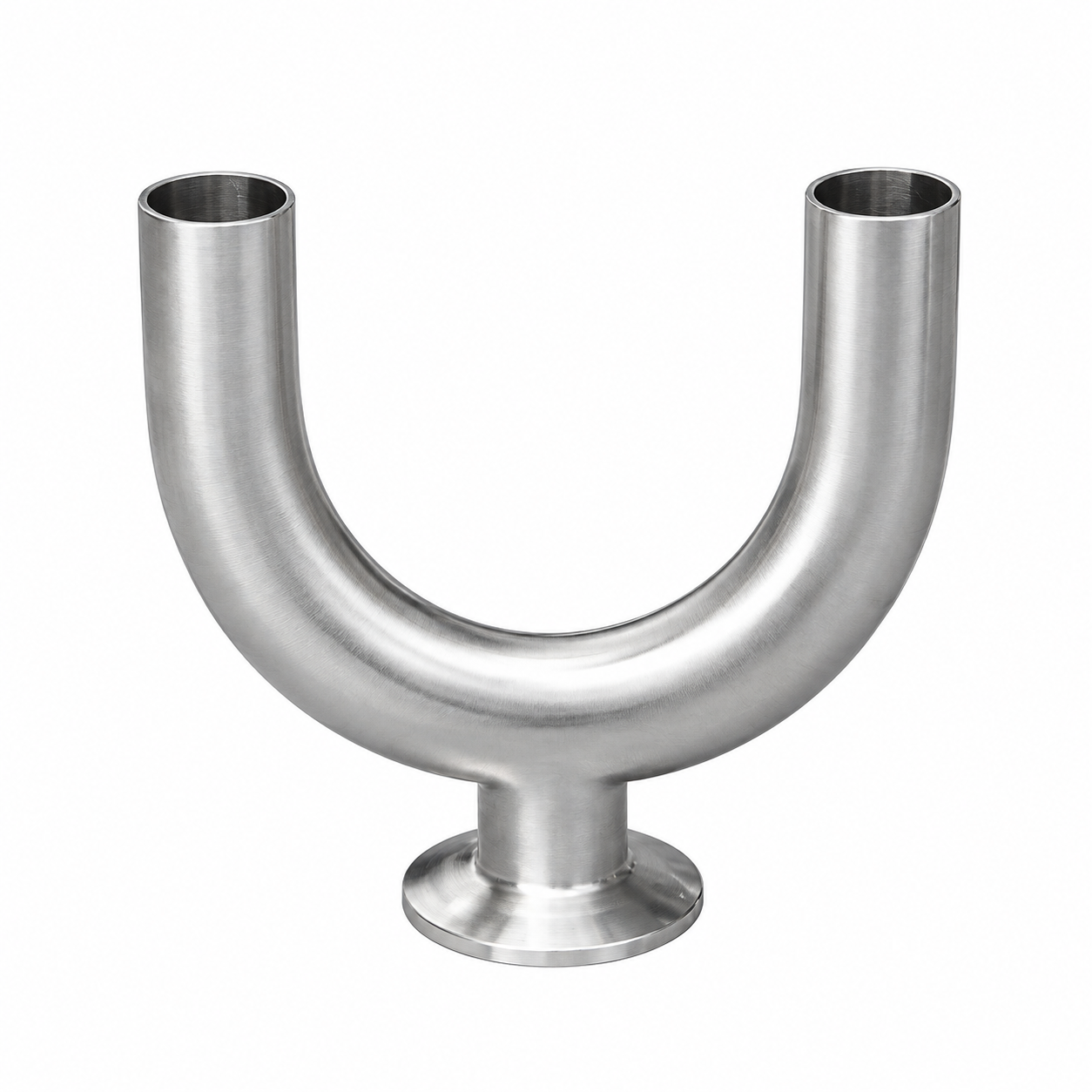

A U-shaped tee is a specialized three-way sanitary pipe fitting with a curved U-shaped main body and a branch connection located at the bottom.

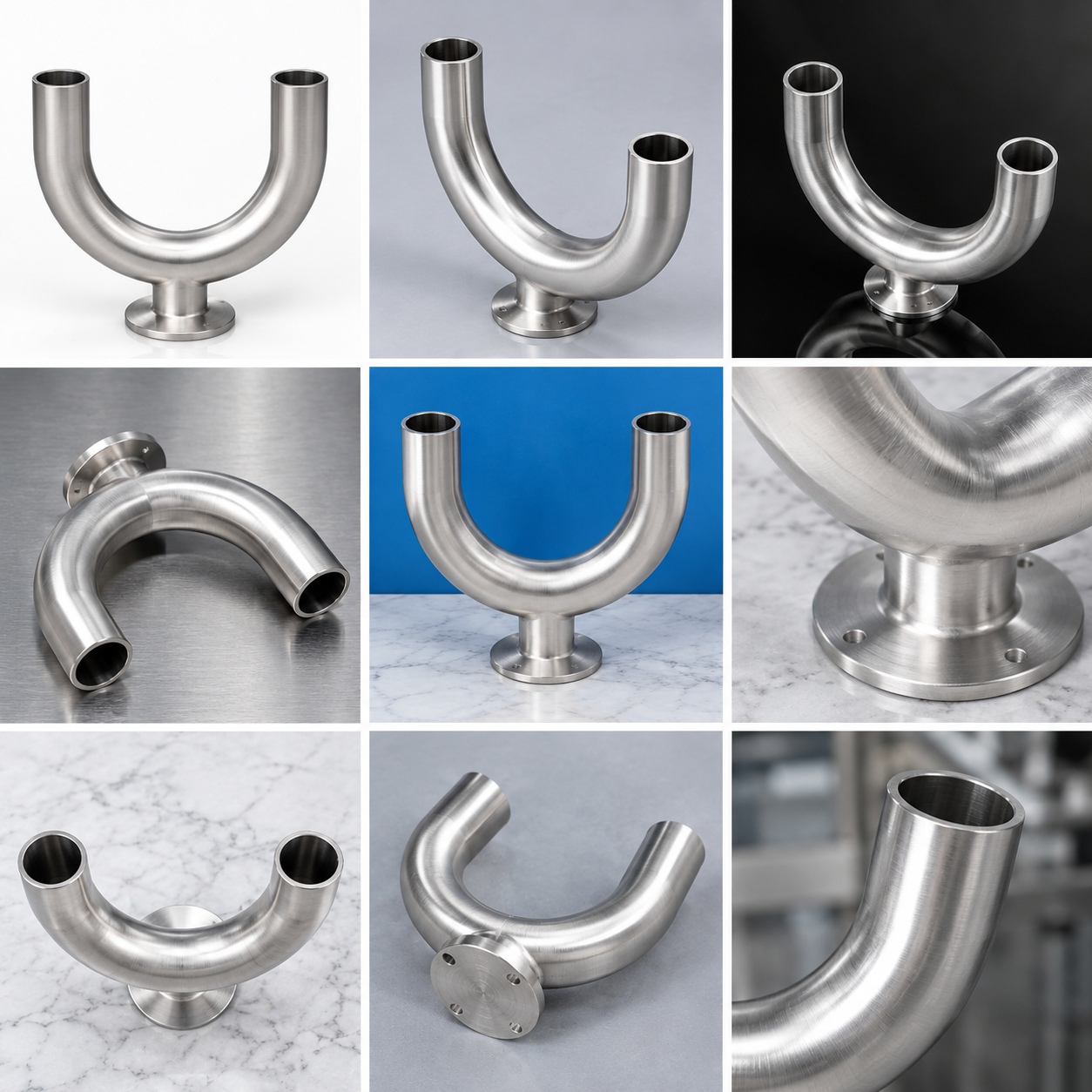

As shown in the product design, the fitting has:
- Two upper pipe openings
- One lower branch outlet
- A curved U-shaped main body
- A flanged connection at the bottom branch
The two upper openings form the main curved flow path, while the lower branch provides an additional connection point for sanitary process piping.
Stainless Steel U-Shaped Tee Material
304 Stainless Steel
SS304 stainless steel provides good corrosion resistance, mechanical strength, and durability for general sanitary applications.
Typical applications include:
- Food processing
- Beverage production
- Brewing
- Water and liquid processing
- General sanitary piping
316L Stainless Steel
SS316L stainless steel provides enhanced corrosion resistance for more demanding hygienic processing environments.
It is commonly used in:
- Pharmaceutical manufacturing
- Biotechnology
- Dairy processing
- High-purity fluid systems
- Hygienic processing equipment
Key Features of Our U-Shaped Tee
U-Shaped Curved Body
The U-shaped main body provides a smooth curved pipeline configuration for specialized sanitary piping layouts.
Three-Way Connection
The fitting provides two main pipe connections and one bottom branch connection, allowing three sections of piping to be connected.
Bottom Flanged Branch
The bottom outlet features a flanged connection, providing a secure and practical connection method for compatible sanitary piping components.
Smooth Flow Path
The curved U-shaped body provides a gradual transition through the main flow path, helping create a smooth internal piping configuration.
Hygienic Stainless Steel Construction
Manufactured from stainless steel with smooth surfaces suitable for hygienic processing environments.
SS304 and SS316L Options
Available in 304 and 316L stainless steel for different processing and corrosion-resistance requirements.
Customizable Specifications
Pipe diameter, branch size, flange configuration, surface finish, and other dimensions can be customized according to project requirements.
Applications of U-Shaped Sanitary Tees
Stainless steel U-shaped tees can be used in:
- Food processing equipment
- Beverage production systems
- Dairy processing
- Brewing systems
- Pharmaceutical manufacturing
- Biotechnology
- Cosmetic production
- Sanitary fluid transfer
- Hygienic process piping
- Stainless steel processing equipment
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | U-Shaped Tee |
| Product Type | Stainless Steel Sanitary U-Shaped Tee |
| Material | SS304 / SS316L |
| Configuration | U-Shaped / Three-Way |
| Main Body | Curved U-Shaped Pipe |
| Main Connections | Two Upper Pipe Ends |
| Branch Connection | Bottom Flanged Outlet |
| Connection | Flanged / Customized |
| Surface Finish | Polished / Mirror Polished |
| Application | Food, Beverage, Dairy, Pharmaceutical, Biotechnology |
| Installation | Sanitary Process Piping |
| Customization | Available |
Why Choose Our Stainless Steel U-Shaped Tee?
Our U-shaped sanitary tee is designed for specialized hygienic piping systems requiring a curved main body and a bottom flanged branch connection.
Key advantages include:
- U-shaped curved body
- Three-way piping configuration
- Bottom flanged branch outlet
- Smooth curved flow path
- SS304 and SS316L material options
- Hygienic stainless steel construction
- Polished surface options
- Durable and corrosion-resistant
- Custom dimensions available
- Suitable for sanitary process piping
U-Shaped Tee FAQ
What is a U-shaped tee?
A U-shaped tee is a specialized three-way sanitary pipe fitting featuring a curved U-shaped body with two main pipe openings and a bottom branch outlet.
What is the bottom connection on this U-shaped tee?
The product shown features a flanged bottom branch connection, which can be connected to compatible sanitary piping components.
What is a U-shaped tee used for?
It is used to connect and route three sections of sanitary piping where a curved main flow path and bottom branch connection are required.
What materials are available?
The U-shaped tee can be manufactured from SS304 or SS316L stainless steel.
Can the flange size be customized?
Yes. Pipe diameter, branch diameter, flange dimensions, material, surface finish, and other specifications can be customized according to project requirements.
Get a Quote for U-Shaped Tees
Looking for a stainless steel U-shaped tee with a flanged branch connection?
We can supply SS304 and SS316L sanitary U-shaped tees for food, beverage, dairy, pharmaceutical, biotechnology, and other hygienic process applications.
Contact us today for product dimensions, material options, customization, and quotation.
