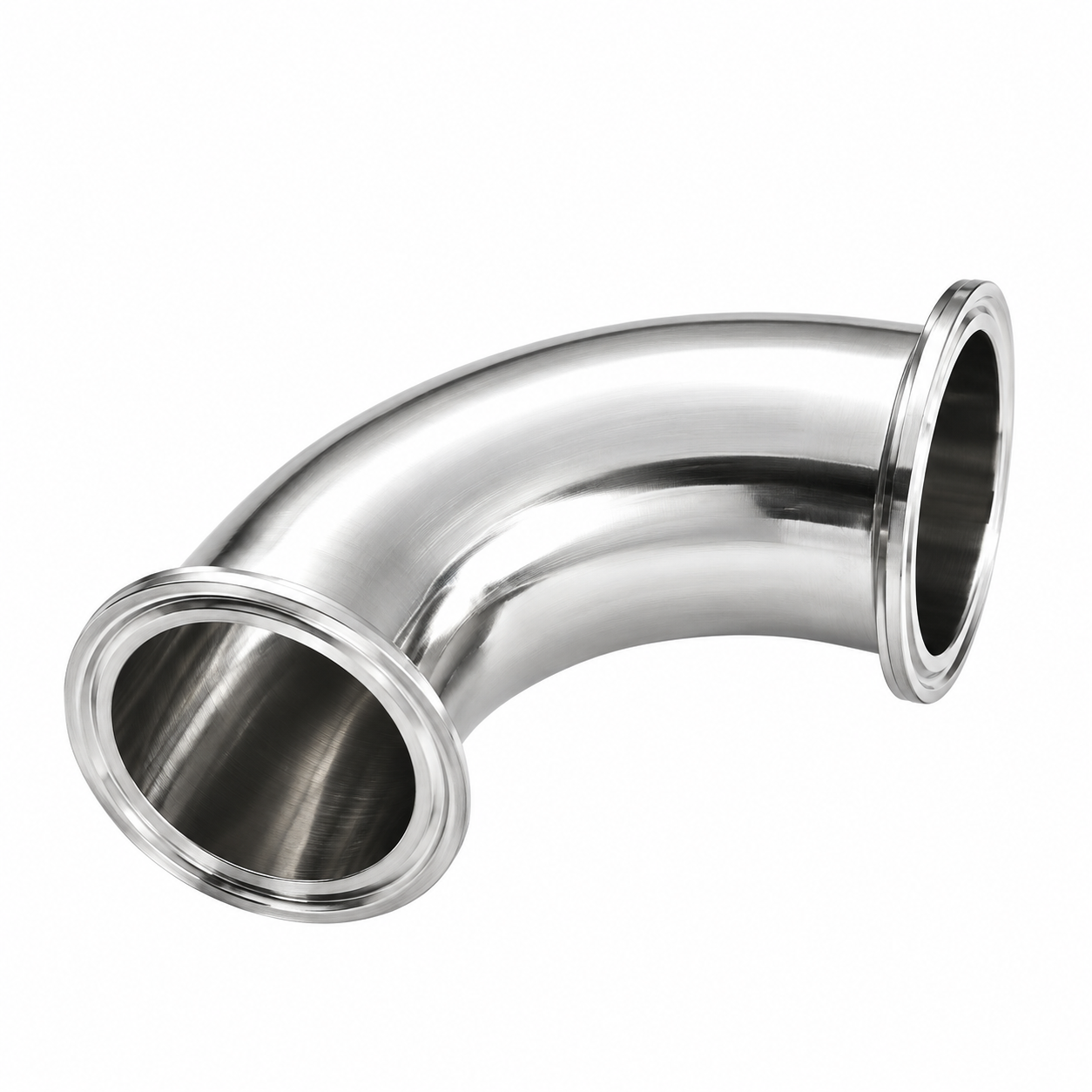

What Is a Quick-Connect Elbow Pipe?
A Quick-Connect Elbow Pipe is a sanitary elbow fitting used to redirect a pipeline while allowing convenient connection and removal.
Compared with permanently welded elbows, its quick-connect design is particularly useful in piping systems where components need to be frequently inspected, cleaned, maintained, or replaced.
304 Stainless Steel
SS304 stainless steel provides good corrosion resistance, strength, and durability for general sanitary applications.
Typical uses include:
- Food processing
- Beverage production
- Dairy equipment
- Brewing systems
- General hygienic piping
316L Stainless Steel
SS316L stainless steel offers enhanced corrosion resistance for demanding sanitary and high-purity environments.
Typical applications include:
- Pharmaceutical processing
- Biotechnology
- High-purity process systems
- Hygienic production equipment
- Corrosive processing environments
Key Features of Quick-Connect Elbow Pipe
- Quick-connect installation for convenient assembly
- Easy disassembly for cleaning and maintenance
- Stainless steel construction in SS304 and SS316L
- Designed for sanitary directional changes
- Smooth internal surface for hygienic applications
- Suitable for compact process piping layouts
- Easy integration with other sanitary pipe fittings
- Custom sizes and connection configurations available
Applications
The Quick-Connect Elbow Pipe is commonly used in:
- Food processing
- Beverage production
- Dairy processing
- Brewing
- Pharmaceutical manufacturing
- Biotechnology
- Cosmetics
- Hygienic fluid transfer
- Sanitary process equipment
- Stainless steel process piping
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Quick-Connect Elbow Pipe |
| Product Type | Stainless Steel Sanitary Quick-Connect Elbow |
| Configuration | Elbow / Directional Connection |
| Material | SS304 / SS316L |
| Installation | Quick-Connect / Removable |
| Connection | According to configuration |
| Surface Finish | Polished / Mirror Polished |
| Application | Food, Beverage, Dairy, Brewing, Pharmaceutical, Biotechnology |
| Customization | Dimensions and connection options available |
Why Choose a Quick-Connect Elbow Pipe?
The Quick-Connect Elbow Pipe combines directional pipe connection with convenient installation and removal. This makes it suitable for sanitary systems where regular cleaning, inspection, maintenance, or equipment reconfiguration is required.
Its stainless steel construction provides durability and corrosion resistance, while the hygienic surface finish supports clean process environments.

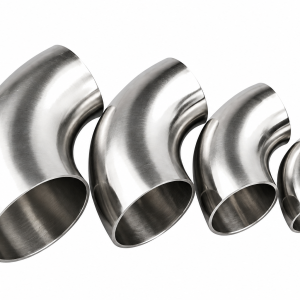

Quick-Connect Elbow vs. Welded Elbow
| Feature | Quick-Connect Elbow | Welded Elbow |
|---|---|---|
| Connection | Quick / Removable | Welded / Permanent |
| Installation | Fast | Requires welding |
| Disassembly | Convenient | More involved |
| Maintenance | Easier | Requires additional work |
| Typical Use | Serviceable sanitary systems | Fixed piping systems |
FAQ
What is a Quick-Connect Elbow Pipe?
It is a stainless steel sanitary elbow fitting designed to change pipe direction while allowing convenient connection and removal.
What materials are available?
The fitting can be supplied in SS304 and SS316L stainless steel.
What is the advantage of a quick-connect elbow?
It allows faster assembly and convenient disassembly, which can simplify cleaning, inspection, maintenance, and component replacement.
Where is it used?
It is commonly used in food, beverage, dairy, brewing, pharmaceutical, biotechnology, cosmetics, and other hygienic process piping systems.
Can the Quick-Connect Elbow Pipe be customized?
Yes. Dimensions, connection configurations, surface finish, and other specifications can be customized according to project requirements.
Get a Quote for Quick-Connect Elbow Pipe
Looking for SS304 or SS316L Quick-Connect Elbow Pipes for your sanitary piping system?
Contact us for specifications, dimensions, connection options, customization, and bulk pricing.
