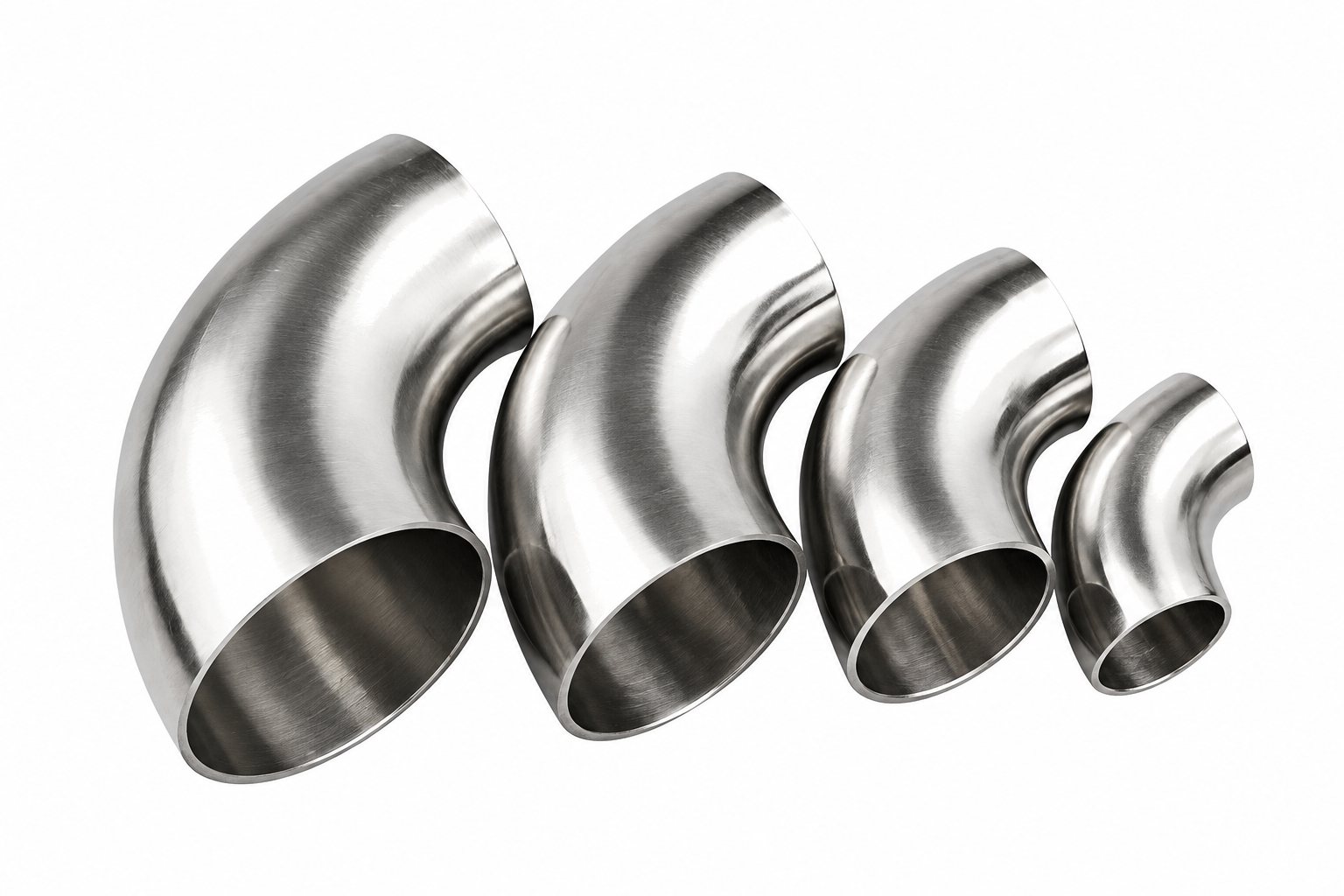

What Is a Welded Elbow?
A Welded Elbow is a sanitary pipe fitting used to redirect a pipeline at a specified angle, commonly 45° or 90°, through a welded connection.
Compared with detachable clamp fittings, welded elbows are intended for permanent installation and are commonly used in fixed sanitary process piping systems.
304 Stainless Steel
SS304 stainless steel provides good corrosion resistance, strength, and durability for general sanitary applications.
Typical uses include:
- Food processing
- Beverage production
- Dairy equipment
- Brewing systems
- General hygienic piping
316L Stainless Steel
SS316L stainless steel offers enhanced corrosion resistance for more demanding sanitary environments.
Typical applications include:
- Pharmaceutical processing
- Biotechnology
- High-purity systems
- Chemical processing
- Hygienic process equipment
Key Features of Welded Elbow
- Designed for permanent welded installation
- Available in SS304 and SS316L stainless steel
- Suitable for directional changes in sanitary piping
- Smooth internal surface for hygienic applications
- Strong and stable welded connection
- Suitable for fixed process piping systems
- Available in different elbow angles and sizes
- Custom specifications available according to project requirements
Applications
The Welded Elbow is commonly used in:
- Food processing
- Beverage production
- Dairy processing
- Brewing
- Pharmaceutical manufacturing
- Biotechnology
- Cosmetics
- Hygienic fluid transfer
- Stainless steel process piping
- Sanitary processing equipment
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Welded Elbow |
| Product Type | Stainless Steel Sanitary Welded Elbow |
| Material | SS304 / SS316L |
| Elbow Angle | Available according to configuration |
| Connection Type | Welded |
| Design | Sanitary / Hygienic |
| Surface Finish | Polished / Mirror Polished |
| Application | Food, Beverage, Dairy, Brewing, Pharmaceutical, Biotechnology |
| Customization | Sizes, angles and configurations available |
Why Choose a Welded Elbow?
The Welded Elbow is designed for sanitary piping systems where a permanent connection is preferred. Welding creates an integrated connection that can help maintain a clean and stable piping layout.
Its stainless steel construction and hygienic surface finish make it suitable for demanding processing environments where corrosion resistance, cleanliness, and reliable operation are important.
Welded Elbow vs. Clamp Elbow
| Feature | Welded Elbow | Clamp Elbow |
|---|---|---|
| Connection | Welded | Clamp |
| Installation | Permanent | Removable |
| Maintenance | Requires welding work | Easy disassembly |
| Connection Structure | Integrated | Detachable |
| Typical Use | Fixed process piping | Systems requiring frequent maintenance |
FAQ
What is a Welded Elbow?
A Welded Elbow is a stainless steel sanitary pipe fitting used to change the direction of a pipeline through a permanent welded connection.
What materials are available?
The Welded Elbow can be supplied in SS304 and SS316L stainless steel.
What angles are available?
Elbow angles depend on the specific configuration. Common sanitary elbow configurations include 45° and 90°.
Where are Welded Elbows used?
They are commonly used in food, beverage, dairy, brewing, pharmaceutical, biotechnology, and other hygienic process piping systems.
Can the Welded Elbow be customized?
Yes. Dimensions, angles, pipe sizes, surface finishes, and other specifications can be customized according to project requirements.
Get a Quote for Welded Elbow
Looking for SS304 or SS316L Welded Elbows for your sanitary piping system?
Contact us for product specifications, dimensions, connection options, customization, and bulk pricing.
