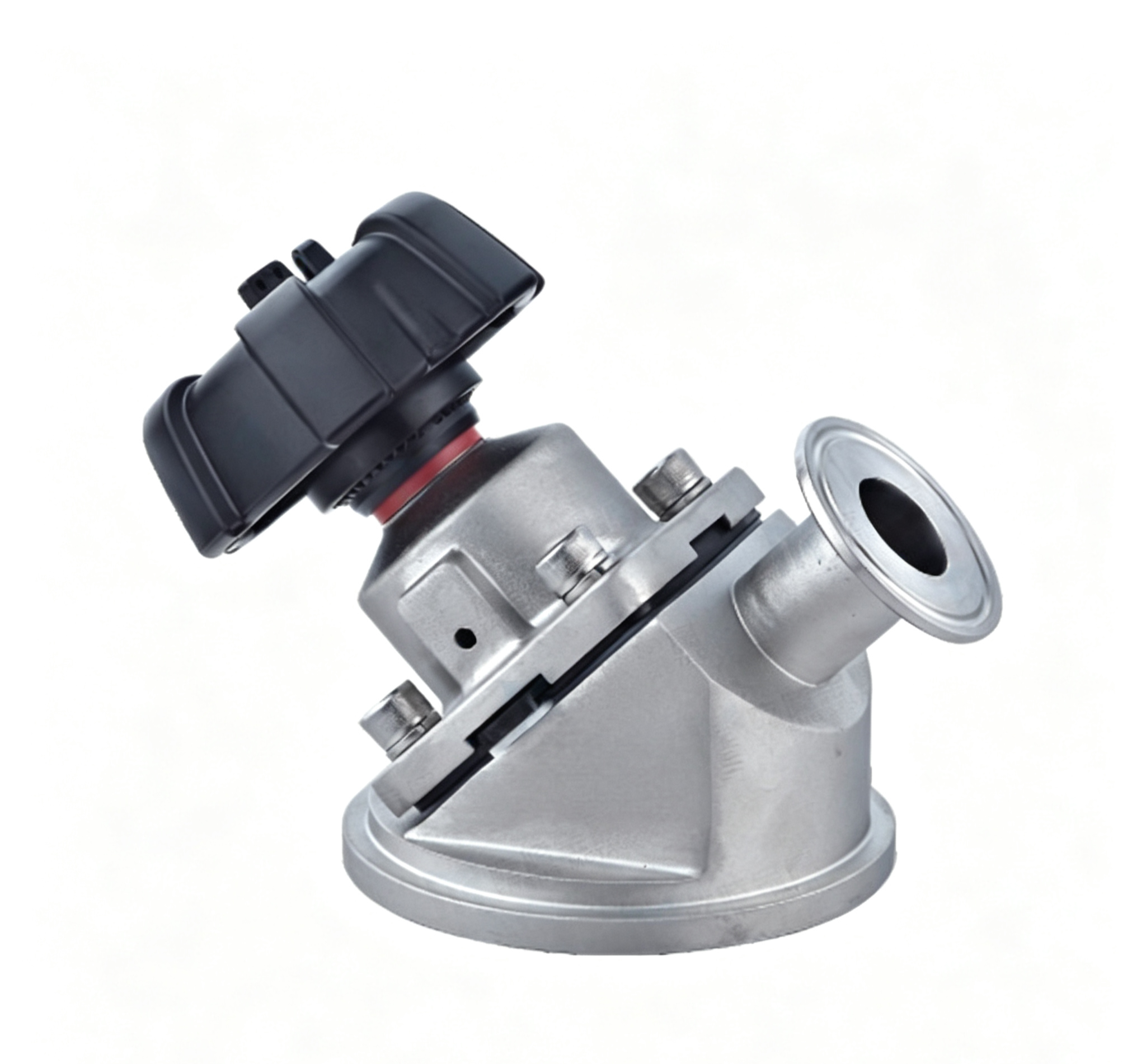

What Is a Bottom Diaphragm Valve?
A bottom diaphragm valve is a sanitary diaphragm valve designed for bottom-mounted installation, typically at the outlet or lower section of a tank or vessel.
Its bottom-mounted configuration can help facilitate tank discharge, fluid drainage, process isolation, and hygienic flow control. The diaphragm mechanism provides controlled shut-off while keeping the operating mechanism separated from the process fluid.
This type of valve is particularly useful where sanitary process equipment requires controlled discharge from the lowest point of a vessel.
Stainless Steel Material
304 Stainless Steel
SS304 bottom diaphragm valves provide good corrosion resistance and durability for general hygienic applications, including food, beverage, dairy, and water-related processing.
316L Stainless Steel
SS316L bottom diaphragm valves offer enhanced corrosion resistance and are commonly selected for pharmaceutical, biotechnology, high-purity, and more demanding process environments.
Material selection should be based on the process medium, cleaning procedure, temperature, and operating conditions.
Key Features of the Bottom Diaphragm Valve
Bottom-Mounted Installation
The valve is designed for installation at the bottom or lower outlet of a tank, vessel, or process system.
Hygienic Diaphragm Design
The diaphragm provides controlled flow isolation and helps separate the valve operating components from the process medium.
Efficient Tank Discharge
The bottom installation makes the valve suitable for controlled discharge and drainage of process fluids from tanks and vessels.
Stainless Steel Construction
Available in SS304 and SS316L, providing corrosion resistance and durability for hygienic process applications.
Suitable for Process Isolation
The valve can be used to isolate tanks, vessels, and process lines during production, cleaning, maintenance, or equipment servicing.
Multiple Connection Options
Depending on the configuration, the valve can be supplied with:
- Sanitary Clamp Connection
- Butt Weld Connection
- Welded Connection
- Customized Connections
Applications
Stainless steel bottom diaphragm valves are commonly used in:
- Food Processing
- Beverage Processing
- Dairy Processing
- Brewing Systems
- Pharmaceutical Manufacturing
- Biotechnology
- Cosmetic Manufacturing
- High-Purity Fluid Processing
- Sanitary Tank Systems
- Hygienic Process Piping
Typical applications include tank outlet control, product discharge, process isolation, drainage, and hygienic fluid handling.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Bottom Diaphragm Valve |
| Product Type | Stainless Steel Sanitary Diaphragm Valve |
| Material | SS304 / SS316L |
| Valve Type | Diaphragm Valve |
| Installation Position | Tank Bottom / Vessel Outlet |
| Valve Function | Flow Control / Discharge / Isolation |
| Operating Method | Manual / Pneumatic / Customized |
| Connection | Clamp / Welded / Customized |
| Diaphragm | Sanitary Process Diaphragm |
| Surface Finish | Polished / Sanitary Finish |
| Application | Hygienic Process Piping and Tank Systems |
| Customization | Available |
Dimensions, port configuration, pressure rating, temperature range, diaphragm material, connection specifications, and installation details can be customized according to the actual valve model.
Why Choose Our Bottom Diaphragm Valve?
Our stainless steel bottom diaphragm valves are designed for sanitary tank and process applications where reliable bottom discharge and process isolation are required.
The combination of a bottom-mounted configuration, diaphragm valve mechanism, and stainless steel sanitary construction makes this valve suitable for a wide range of hygienic processing systems.
For applications involving food, dairy, beverage, pharmaceutical, biotechnology, and other sanitary process equipment, the valve can be configured according to specific piping and tank requirements.
Frequently Asked Questions
What is a bottom diaphragm valve?
A bottom diaphragm valve is a sanitary diaphragm valve designed to be installed at the bottom or lower outlet of a tank, vessel, or process system for flow control, discharge, and isolation.
What materials are available?
The valve can be supplied in SS304 or SS316L stainless steel. SS316L is commonly selected for applications requiring enhanced corrosion resistance.
Where is a bottom diaphragm valve installed?
It is typically installed at the bottom outlet or lower section of a tank or vessel, depending on the process equipment design.
Can a bottom diaphragm valve be used for tank discharge?
Yes. Its bottom-mounted configuration makes it suitable for controlled tank discharge, drainage, and process isolation.
Is the bottom diaphragm valve available with pneumatic operation?
Depending on the model, pneumatic actuation can be supplied for automated flow control and process operation.
Can the valve be customized?
Yes. Material, dimensions, connection type, actuation method, diaphragm configuration, surface finish, and other specifications can be customized according to project requirements.
Get a Quote for Bottom Diaphragm Valves
Looking for a reliable stainless steel bottom diaphragm valve for your sanitary tank or process piping system?
Contact us for SS304/SS316L material options, dimensions, connection configurations, diaphragm specifications, technical drawings, and customized sanitary valve solutions.
