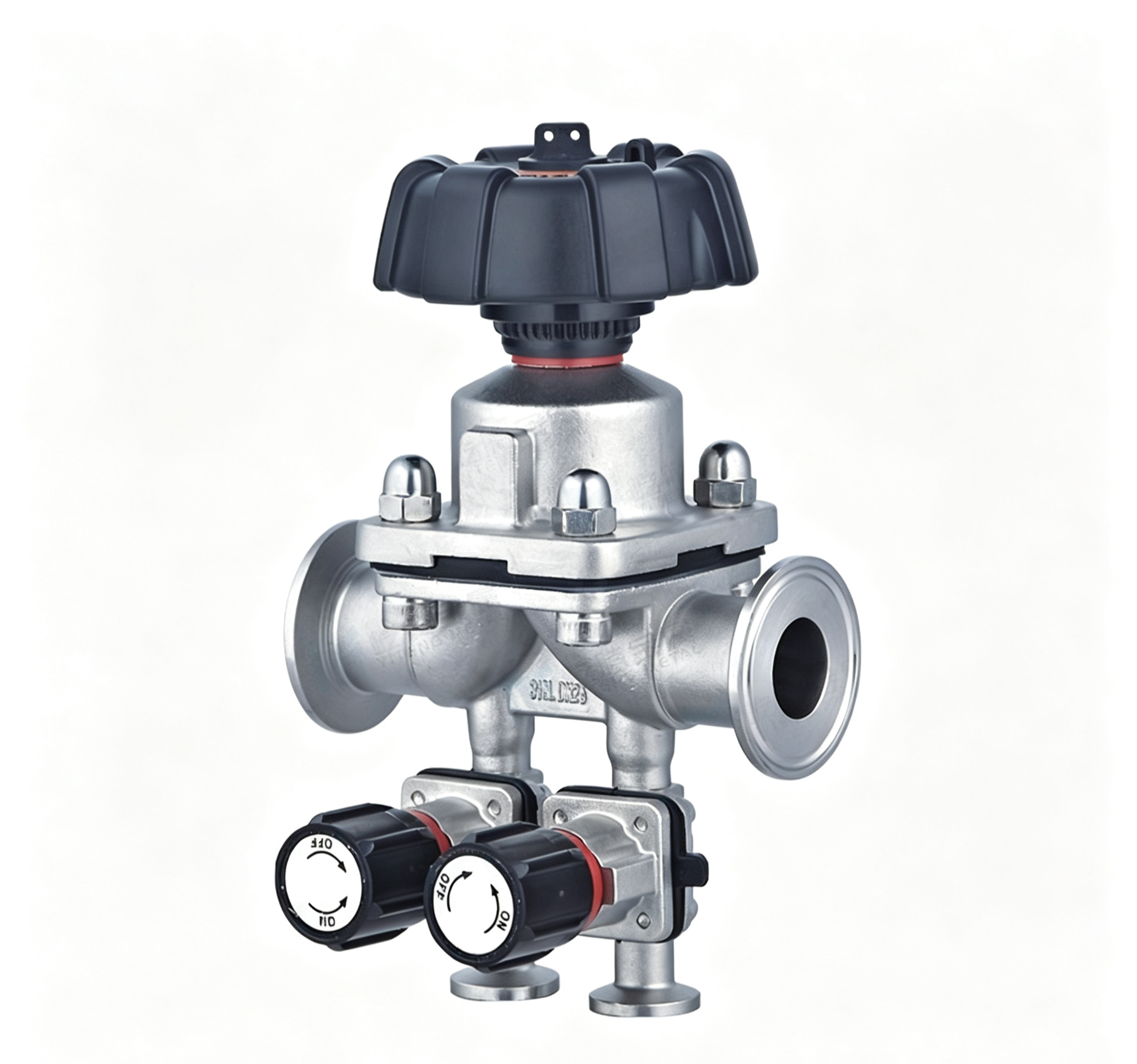

What Is a Double-Headed Sterilization Diaphragm Valve?
A double-headed sterilization diaphragm valve is a sanitary diaphragm valve featuring a double-head configuration and diaphragm-based flow-control mechanism.
The diaphragm helps separate the valve operating components from the process medium, supporting hygienic operation and reducing the potential for process contamination.
The double-headed structure can be used in specialized sanitary piping and process equipment where the valve configuration requires multiple operating or control components.
Stainless Steel Material
304 Stainless Steel
SS304 double-headed diaphragm valves provide good corrosion resistance and durability for general hygienic applications, including food, beverage, and dairy processing.
316L Stainless Steel
SS316L double-headed diaphragm valves provide enhanced corrosion resistance and are commonly selected for pharmaceutical, biotechnology, high-purity, and demanding sanitary applications.
Material selection should be based on the process medium, cleaning procedure, sterilization conditions, temperature, and operating requirements.
Key Features
Double-Headed Configuration
The double-headed structure provides a specialized configuration for sanitary process systems requiring dual-head valve construction or control.
Hygienic Diaphragm Design
The diaphragm separates the operating mechanism from the process medium, supporting sanitary flow control and process isolation.
Sterilization-Suitable Construction
The valve can be used in hygienic systems where cleaning and sterilization procedures are required, subject to the actual valve materials and operating specifications.
Stainless Steel Construction
Available in SS304 and SS316L stainless steel for corrosion resistance, durability, and hygienic processing.
Reliable Flow Isolation
The valve provides controlled opening and shut-off for sanitary process lines and equipment.
Flexible Connections
Depending on the actual model, connection options may include:
- Sanitary Clamp Connection
- Butt Weld Connection
- Welded Connection
- Customized Connection
Applications
Stainless steel double-headed sterilization diaphragm valves can be used in:
- Pharmaceutical Manufacturing
- Biotechnology and Bioprocessing
- Food Processing
- Beverage Production
- Dairy Processing
- Brewing Systems
- Cosmetic Manufacturing
- High-Purity Fluid Processing
- Sterile Process Systems
- Hygienic Process Piping
Typical applications include process isolation, sanitary flow control, sterile fluid handling, and hygienic process equipment.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Double-Headed Sterilization Diaphragm Valve |
| Product Type | Stainless Steel Sanitary Diaphragm Valve |
| Material | SS304 / SS316L |
| Valve Type | Diaphragm Valve |
| Configuration | Double-Headed |
| Operating Method | Manual / Pneumatic / Customized |
| Valve Function | Flow Control / Shut-Off / Isolation |
| Connection | Clamp / Welded / Customized |
| Diaphragm | Sanitary Process Diaphragm |
| Sterilization | Suitable for Applicable Sanitary Sterilization Processes |
| Surface Finish | Polished / Sanitary Finish |
| Application | Hygienic and Sterile Process Piping |
| Customization | Available |
Dimensions, head configuration, diaphragm material, sterilization temperature, pressure rating, connection specifications, and other technical parameters should be confirmed according to the actual valve model.
Why Choose Our Double-Headed Sterilization Diaphragm Valve?
Our stainless steel double-headed sterilization diaphragm valves combine a specialized double-headed configuration with hygienic diaphragm valve technology.
The diaphragm design supports sanitary process isolation, while the stainless steel body provides corrosion resistance and durability. The valve can be configured for different sanitary process piping and equipment requirements.
With SS304 and SS316L options, the valve can be used across a variety of food, beverage, pharmaceutical, biotechnology, and high-purity processing systems.
Frequently Asked Questions
What is a double-headed sterilization diaphragm valve?
A double-headed sterilization diaphragm valve is a sanitary diaphragm valve featuring a double-head configuration for specialized hygienic flow control and process isolation applications.
What materials are available?
The valve is commonly available in SS304 and SS316L stainless steel.
Is it suitable for pharmaceutical applications?
Yes. Properly configured sanitary diaphragm valves can be used in pharmaceutical and biotechnology process systems. Material, diaphragm, surface finish, and sterilization requirements should be selected according to the application.
What is the advantage of the double-headed configuration?
The double-headed configuration provides a specialized valve structure that can be used for applications requiring dual-head construction or control. The exact function depends on the valve’s internal design and port configuration.
Can the valve be pneumatically operated?
Depending on the model, pneumatic actuation can be supplied for automated process control.
Can the valve be customized?
Yes. Material, dimensions, head configuration, connection type, operating method, diaphragm material, surface finish, and other specifications can be customized according to project requirements.
Get a Quote for Double-Headed Sterilization Diaphragm Valves
Looking for a reliable stainless steel double-headed sterilization diaphragm valve for your sanitary or sterile process system?
Contact us for SS304/SS316L material options, valve dimensions, head configuration, diaphragm specifications, connection types, sterilization requirements, technical drawings, and customized sanitary valve solutions.
