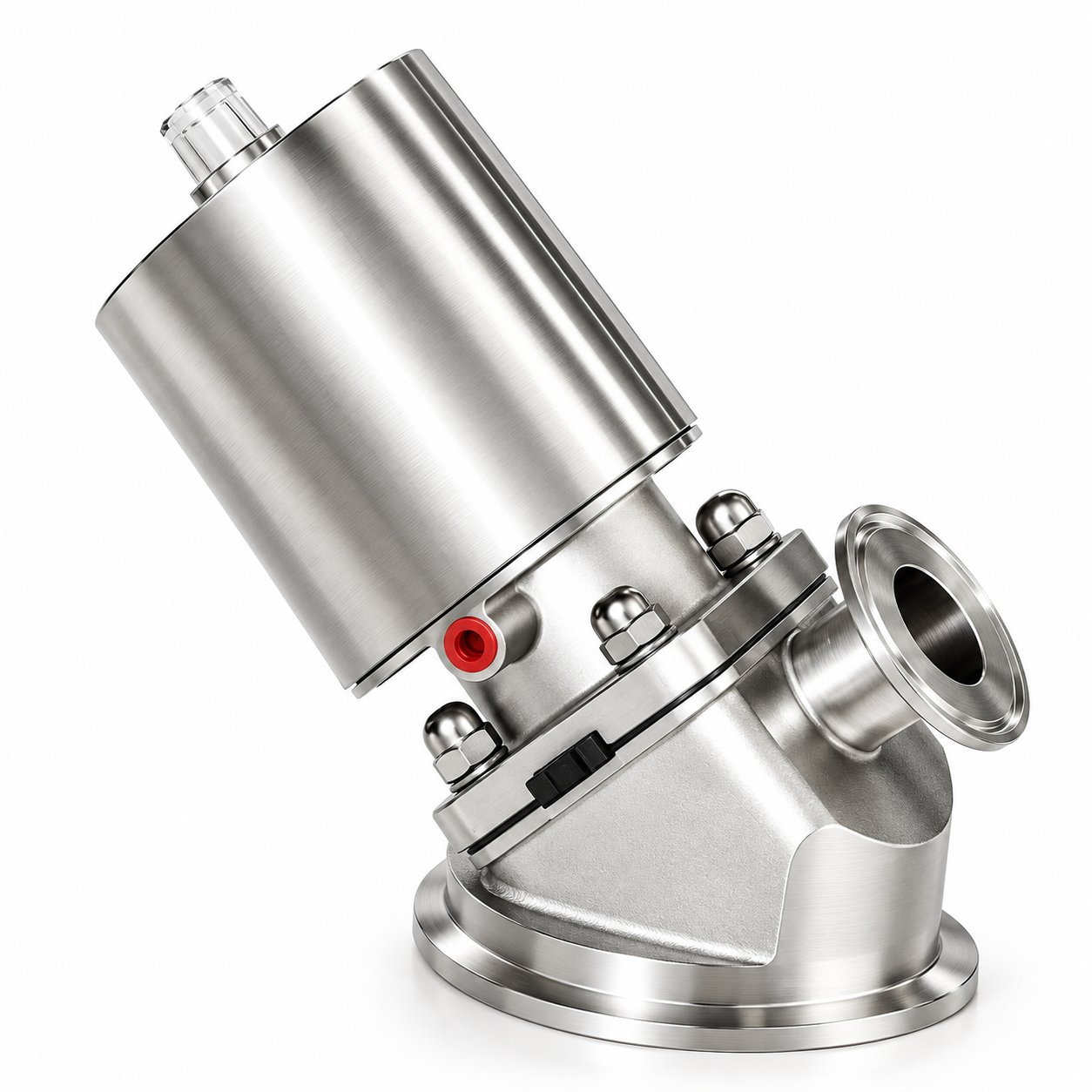

What Is a Pneumatic Tank Bottom Valve?
A pneumatic tank bottom valve is installed at or near the bottom outlet of a process tank or vessel. It is operated using compressed air to control the discharge or isolation of process media.
The tank-bottom configuration helps provide direct control over the outlet of the vessel, while pneumatic actuation allows the valve to be integrated into automated process systems.
Depending on the specific valve design, it can be used for:
- Tank discharge
- Process isolation
- Product transfer
- Drainage
- Automated vessel outlet control
Stainless Steel Material Options
304 Stainless Steel
SS304 stainless steel provides good corrosion resistance and durability for general food, beverage, dairy, and hygienic processing applications.
316L Stainless Steel
SS316L stainless steel provides enhanced corrosion resistance and is commonly selected for pharmaceutical, biotechnology, high-purity, and demanding process environments.
The appropriate material should be selected according to the process medium, temperature, cleaning procedure, and operating conditions.
Key Features of Our Pneumatic Tank Bottom Valve
Pneumatic Actuation
The pneumatic actuator allows automatic or remote operation and can be integrated into process automation systems.
Tank Bottom Installation
The valve is designed for installation at the bottom outlet of tanks or process vessels, providing direct control of the vessel discharge line.
Automated Discharge Control
The valve can be used to automate tank emptying, product transfer, drainage, and process isolation.
Hygienic Stainless Steel Construction
Available in SS304 and SS316L stainless steel for corrosion resistance and hygienic process applications.
Reliable Process Isolation
The valve can provide controlled opening and shut-off of the tank outlet according to the specific valve configuration.
Flexible Connections
Connection types and installation configurations can be supplied according to the tank design and process piping requirements.
Applications
Stainless steel pneumatic tank bottom valves are commonly used in:
- Pharmaceutical Manufacturing
- Biotechnology and Bioprocessing
- Food Processing
- Beverage Production
- Dairy Processing
- Brewing and Brewery Systems
- Cosmetic Manufacturing
- High-Purity Process Systems
- Sanitary Storage Tanks
- Process Vessels
Typical applications include tank discharge, product transfer, drainage, process isolation, and automated vessel outlet control.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Pneumatic Tank Bottom Valve |
| Product Type | Stainless Steel Sanitary Tank Bottom Valve |
| Material | SS304 / SS316L |
| Valve Type | Tank Bottom Valve |
| Operating Method | Pneumatic |
| Actuation | Pneumatic Actuator |
| Installation Position | Tank Bottom / Vessel Outlet |
| Valve Function | Discharge / Flow Control / Isolation |
| Connection | Sanitary / Welded / Customized |
| Surface Finish | Polished / Sanitary Finish |
| Application | Tank and Hygienic Process Piping |
| Automation | Suitable for Automated Systems |
| Customization | Available |
Valve dimensions, tank outlet configuration, connection standards, actuator specifications, pressure ratings, temperature range, sealing materials, and other technical parameters should be confirmed according to the specific model.
Pneumatic Tank Bottom Valve vs. Standard Pneumatic Valve
A standard pneumatic sanitary valve may be installed at different points within a process pipeline.
A pneumatic tank bottom valve is specifically designed for installation at the bottom outlet of a tank or vessel, making it particularly suitable for automated discharge and vessel outlet control.
The appropriate valve should be selected according to the tank design, outlet configuration, process medium, and required operating conditions.
Why Choose Our Stainless Steel Pneumatic Tank Bottom Valve?
Our stainless steel pneumatic tank bottom valves combine tank-outlet installation with pneumatic actuation, providing an efficient solution for automated process control.
With SS304 and SS316L stainless steel options, these valves can be configured for different hygienic processing environments.
They are particularly suitable for systems requiring automated tank discharge, reliable isolation, hygienic construction, and integration with process automation.
Frequently Asked Questions
What is a pneumatic tank bottom valve?
A pneumatic tank bottom valve is a valve installed at the bottom outlet of a process tank or vessel and operated using compressed air to control discharge or isolation.
What is a tank bottom valve used for?
It is commonly used for tank discharge, drainage, product transfer, process isolation, and automated vessel outlet control.
What materials are available?
Common options include SS304 and SS316L stainless steel.
Can the valve be integrated into an automated system?
Yes. The pneumatic actuator can be connected to an automated process control system for remote or automatic operation.
Where are pneumatic tank bottom valves used?
They are commonly used in pharmaceutical, biotechnology, food, beverage, dairy, brewing, cosmetic, and other hygienic processing systems.
Can the tank bottom valve be customized?
Yes. Valve dimensions, connection configuration, actuator specifications, sealing materials, surface finish, and other parameters can be customized according to project requirements.
Get a Quote
Looking for a reliable stainless steel pneumatic tank bottom valve for your process tank or vessel?
Contact us for SS304 and SS316L pneumatic tank bottom valve specifications, dimensions, connection options, actuator configurations, technical parameters, and customized sanitary valve solutions.
