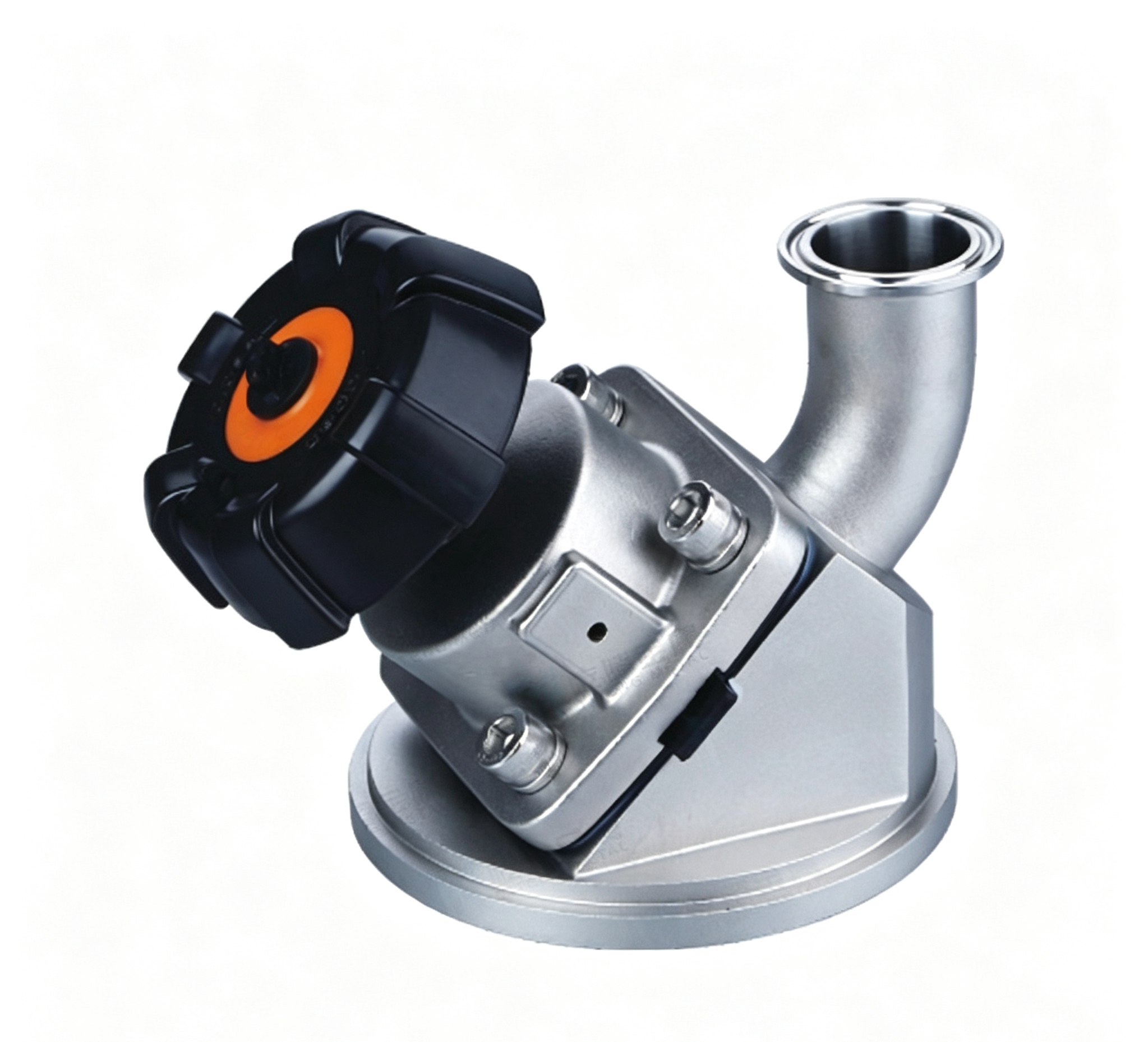

What Is a Tank Bottom Diaphragm Valve?
A tank bottom diaphragm valve is a sanitary diaphragm valve installed directly at the bottom outlet of a tank or vessel.
Its position at the lowest point of the process equipment allows fluids to be discharged efficiently while the diaphragm provides controlled opening and shut-off. This makes the valve suitable for tank drainage, product discharge, process isolation, and hygienic fluid handling.
The diaphragm separates the operating mechanism from the process medium, helping maintain a sanitary process environment.
Stainless Steel Material
304 Stainless Steel
SS304 tank bottom diaphragm valves provide good corrosion resistance and durability for general food, beverage, dairy, and hygienic processing applications.
316L Stainless Steel
SS316L tank bottom diaphragm valves offer enhanced corrosion resistance and are commonly selected for pharmaceutical, biotechnology, high-purity, and demanding process applications.
The appropriate material should be selected according to the process medium, cleaning method, temperature, and operating conditions.
Key Features
Tank Bottom Installation
Designed specifically for installation at the bottom outlet of tanks, vessels, and sanitary process equipment.
Hygienic Diaphragm Design
The diaphragm provides controlled shut-off and separates the operating components from the process medium.
Efficient Tank Discharge
The bottom-mounted design supports efficient product discharge and drainage from process tanks.
Reliable Process Isolation
The valve can isolate the tank from downstream piping during processing, cleaning, maintenance, or servicing.
Stainless Steel Construction
Available in SS304 and SS316L stainless steel for corrosion resistance and long-term durability.
Flexible Connection Options
Depending on the actual configuration, the valve can be supplied with:
- Sanitary Clamp Connection
- Butt Weld Connection
- Welded Connection
- Customized Connections
Applications
Tank bottom diaphragm valves are commonly used in:
- Pharmaceutical Manufacturing
- Biotechnology and Bioprocessing
- Food Processing
- Beverage Production
- Dairy Processing
- Brewing Systems
- Cosmetic Manufacturing
- High-Purity Processing
- Sanitary Storage Tanks
- Process Vessels
- Hygienic Process Piping
Typical applications include tank discharge, product drainage, process isolation, fluid transfer, and sanitary flow control.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Tank Bottom Diaphragm Valve |
| Product Type | Stainless Steel Sanitary Diaphragm Valve |
| Material | SS304 / SS316L |
| Valve Type | Diaphragm Valve |
| Installation Position | Tank Bottom / Vessel Outlet |
| Valve Function | Discharge / Flow Control / Isolation |
| Operating Method | Manual / Pneumatic / Customized |
| Connection | Clamp / Welded / Customized |
| Diaphragm | Sanitary Process Diaphragm |
| Surface Finish | Polished / Sanitary Finish |
| Application | Sanitary Tank and Process Systems |
| Customization | Available |
Dimensions, outlet configuration, connection specifications, diaphragm material, pressure rating, temperature range, and other technical parameters can be customized according to the actual valve model.
Why Choose Our Tank Bottom Diaphragm Valve?
Our stainless steel tank bottom diaphragm valves are designed specifically for hygienic tank and vessel applications where controlled discharge and reliable isolation are required.
The combination of bottom-mounted installation, diaphragm valve technology, and stainless steel construction provides a practical solution for sanitary process systems.
With SS304 and SS316L options and multiple connection configurations, the valve can be adapted to different tank designs and process requirements.
Frequently Asked Questions
What is a tank bottom diaphragm valve?
A tank bottom diaphragm valve is a sanitary diaphragm valve installed at the bottom outlet of a tank or process vessel. It is primarily used for discharge, drainage, flow control, and process isolation.
What is the difference between a bottom diaphragm valve and a tank bottom diaphragm valve?
A bottom diaphragm valve is a broader term describing a diaphragm valve installed in a bottom position. Tank bottom diaphragm valve specifically emphasizes its installation on the bottom outlet of a tank or vessel.
What materials are available?
The valve is commonly available in SS304 and SS316L stainless steel.
Can it be used for pharmaceutical tanks?
Yes. Properly configured stainless steel tank bottom diaphragm valves can be used in pharmaceutical and biotechnology processing systems. The actual diaphragm material, surface finish, connection, and other specifications should match the process requirements.
Can the valve be pneumatically operated?
Depending on the model, a pneumatic actuator can be used for automated tank discharge and process control.
Can the tank bottom diaphragm valve be customized?
Yes. Material, dimensions, connection type, operating method, diaphragm configuration, surface finish, and outlet configuration can be customized according to project requirements.
