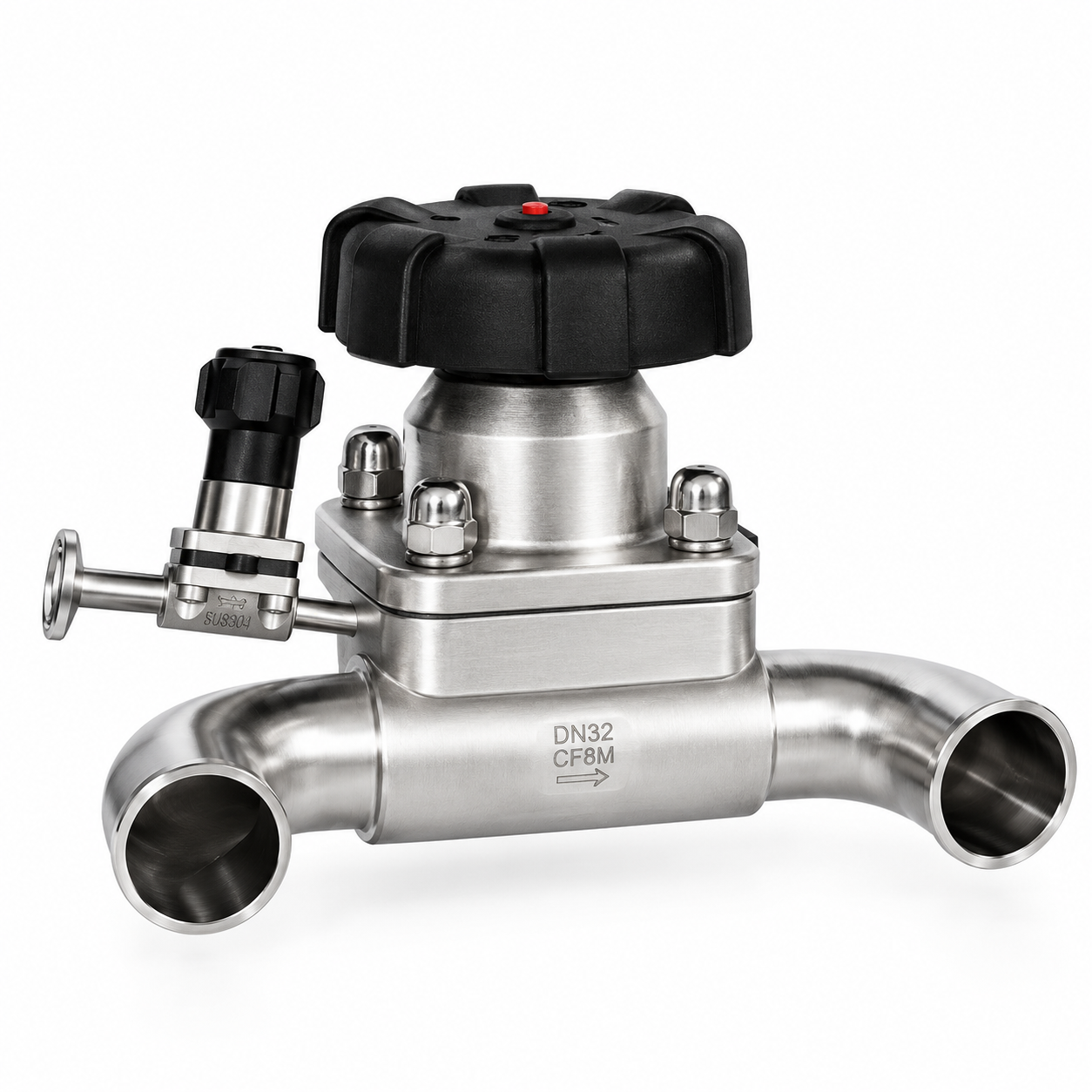

What Is a Manual U-Shaped Three-Way Welded Diaphragm Valve?
A manual U-shaped three-way welded diaphragm valve combines a three-way U-shaped flow configuration with a manually operated diaphragm mechanism.
The three-way configuration allows the valve to manage flow between multiple process lines, while the diaphragm provides hygienic isolation of the process medium.
The welded connection provides a permanent connection to the sanitary piping system, making this valve suitable for installations where a fixed and robust connection is preferred.
Stainless Steel Material Options
304 Stainless Steel
SS304 stainless steel provides good corrosion resistance and durability for general hygienic applications, including food, beverage, dairy, and process piping systems.
316L Stainless Steel
SS316L stainless steel offers enhanced corrosion resistance and is commonly selected for pharmaceutical, biotechnology, high-purity, and demanding processing environments.
Material selection should be based on the process medium, temperature, cleaning procedure, and operating conditions.
Key Features
U-Shaped Three-Way Configuration
The U-shaped configuration provides a three-way flow arrangement for connecting and controlling multiple sanitary process lines.
Manual Operation
The valve is operated manually through its handwheel or operating mechanism, allowing direct control without requiring compressed air or electrical power.
Welded Connection
The welded connection provides a permanent installation and can create a robust connection within the sanitary piping system.
Hygienic Diaphragm Design
The diaphragm separates the process medium from the operating mechanism, supporting hygienic process design and reliable isolation.
Stainless Steel Construction
Available in SS304 and SS316L stainless steel for corrosion resistance and durability.
Suitable for Process Isolation
The valve can be used to control, isolate, or redirect process flow according to the specific three-way configuration.
Applications
Manual U-shaped three-way welded diaphragm valves are commonly used in:
- Pharmaceutical Manufacturing
- Biotechnology and Bioprocessing
- Food Processing
- Beverage Production
- Dairy Processing
- Brewing Systems
- Cosmetic Manufacturing
- High-Purity Process Systems
- Hygienic Process Piping
Typical applications include manual flow control, process isolation, flow switching, and multi-line process piping.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Manual U-Shaped Three-Way Welded Diaphragm Valve |
| Product Type | Stainless Steel Sanitary Diaphragm Valve |
| Material | SS304 / SS316L |
| Valve Type | Diaphragm Valve |
| Configuration | U-Shaped / Three-Way |
| Operating Method | Manual |
| Connection Type | Welded |
| Installation | Permanent Welded Connection |
| Valve Function | Flow Control / Isolation / Flow Switching |
| Diaphragm | Sanitary Process Diaphragm |
| Surface Finish | Polished / Sanitary Finish |
| Application | Hygienic Process Piping |
| Customization | Available |
Dimensions, port arrangement, connection standards, diaphragm materials, pressure ratings, temperature range, and other technical parameters should be confirmed according to the specific valve model.
Manual U-Shaped Three-Way Valve vs. Standard Diaphragm Valve
The main difference is the flow configuration and connection design.
A standard diaphragm valve generally provides a two-way flow path for opening, closing, or controlling a single process line.
The Manual U-Shaped Three-Way Welded Diaphragm Valve provides a three-way U-shaped configuration for connecting multiple process lines and managing flow between them.
Its welded connection also provides a permanent installation rather than a removable quick-install connection.
Why Choose Our Stainless Steel U-Shaped Three-Way Diaphragm Valve?
Our manual U-shaped three-way welded diaphragm valve combines a multi-way sanitary flow configuration with manual operation and permanent welded installation.
The combination of SS304/SS316L stainless steel, diaphragm isolation, three-way flow control, and welded connection makes it suitable for hygienic process systems where reliable operation and fixed installation are required.
Frequently Asked Questions
What is a U-shaped three-way diaphragm valve?
It is a sanitary diaphragm valve with a U-shaped three-way flow configuration designed to connect and control multiple process lines.
Is this valve manually operated?
Yes. The valve uses a manual operating mechanism and does not require pneumatic or electrical actuation.
What is the advantage of the welded connection?
A welded connection provides a permanent and robust connection to the sanitary piping system and is suitable for fixed process installations.
What materials are available?
The valve can be supplied in SS304 or SS316L stainless steel, depending on the process requirements.
Where is this valve used?
It is commonly used in pharmaceutical, biotechnology, food, beverage, dairy, brewing, and other hygienic process systems.
Can the U-shaped three-way diaphragm valve be customized?
Yes. Port arrangement, dimensions, connection specifications, diaphragm material, surface finish, and other parameters can be customized according to project requirements.
Get a Quote
Looking for a reliable manual U-shaped three-way welded diaphragm valve for your sanitary process piping system?
Contact us for SS304 and SS316L valve specifications, dimensions, port configurations, connection options, diaphragm materials, technical parameters, and customized sanitary valve solutions.
