What Is a Pneumatic Diaphragm Valve?
A pneumatic diaphragm valve uses compressed air to operate a flexible diaphragm for controlling or isolating process flow. The pneumatic actuator allows the valve to be integrated into automated process control systems.
The diaphragm provides separation between the process medium and the valve operating mechanism, making this type of valve particularly suitable for applications where hygiene, cleanability, contamination control, and reliable shut-off are important.
The valve can be connected to sanitary tubing, pumps, tanks, process equipment, and automated control systems.
Stainless Steel Pneumatic Diaphragm Valve Material
304 Stainless Steel
SS304 stainless steel provides good corrosion resistance and durability for general hygienic applications, including food, beverage, dairy, and water-related process systems.
316L Stainless Steel
SS316L stainless steel offers enhanced corrosion resistance and is commonly selected for pharmaceutical, biotechnology, high-purity, and other demanding process environments.
Material selection should be based on the process medium, temperature, cleaning procedure, and operating conditions.
Key Features of Our Pneumatic Diaphragm Valve
Pneumatic Actuation
The pneumatic actuator allows the valve to be operated using compressed air and integrated into automated process control systems.
Hygienic Diaphragm Design
The diaphragm separates the process medium from the operating mechanism, supporting hygienic process design and reliable flow isolation.
Stainless Steel Construction
Available in SS304 and SS316L, providing corrosion resistance and durability for sanitary process environments.
Sanitary Connections

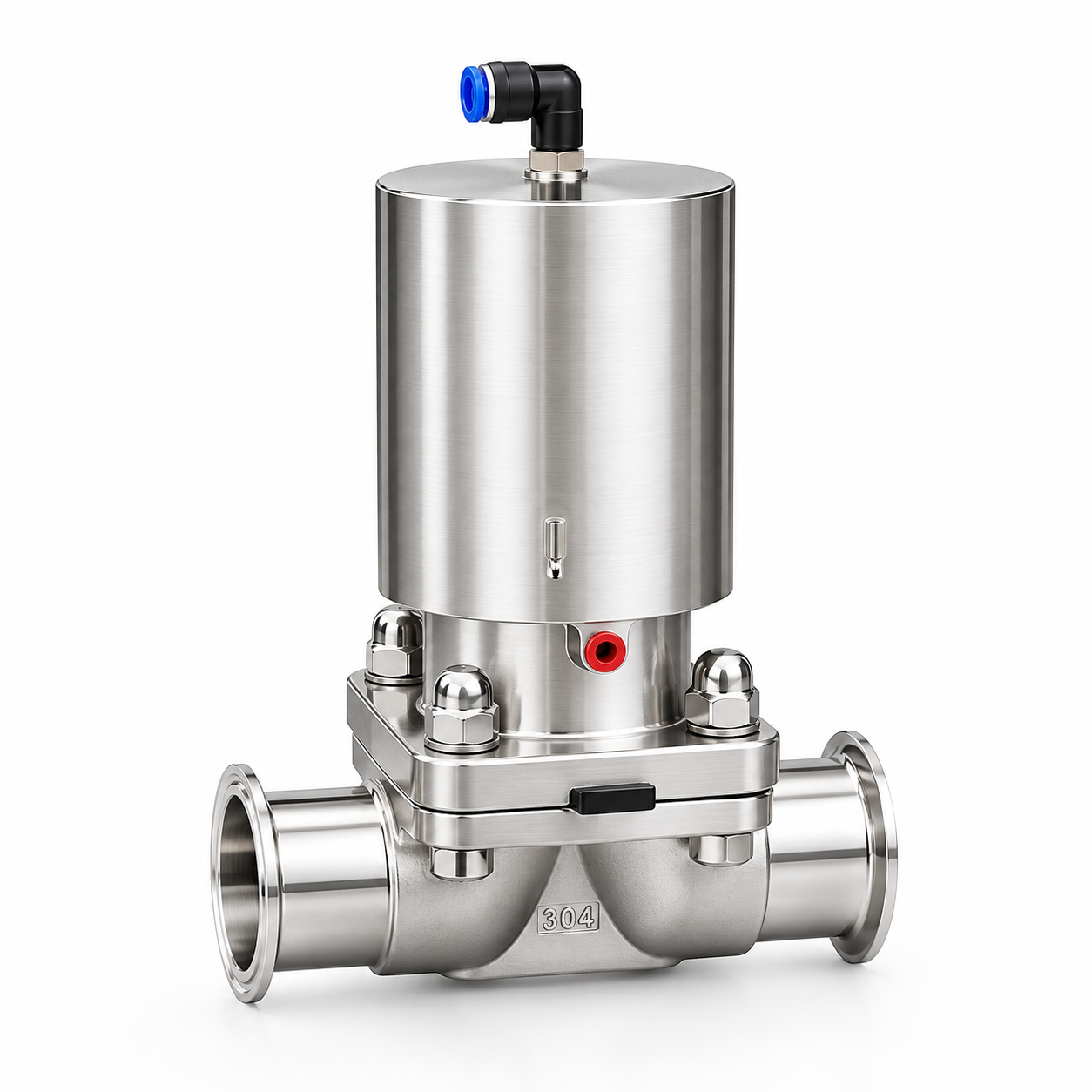

The pictured valve features sanitary clamp-style pipe connections, allowing convenient installation and maintenance. Other connection configurations can be supplied according to requirements.
Automated Flow Control
The pneumatic operating mechanism is suitable for applications requiring automated valve operation, process control, or remote switching.
Easy Maintenance
The valve construction allows maintenance and diaphragm replacement according to the specific valve configuration and operating requirements.
Applications of Pneumatic Diaphragm Valves
Stainless steel pneumatic diaphragm valves are commonly used in:
- Pharmaceutical Manufacturing
- Biotechnology and Bioprocessing
- Food Processing
- Beverage Production
- Dairy Processing
- Brewing and Brewery Systems
- Cosmetic Manufacturing
- High-Purity Process Systems
- Hygienic Process Piping
They can be used for automated flow control, process isolation, shut-off, and fluid handling.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Pneumatic Diaphragm Valve |
| Product Type | Stainless Steel Sanitary Pneumatic Diaphragm Valve |
| Material | SS304 / SS316L |
| Valve Type | Diaphragm Valve |
| Operating Method | Pneumatic |
| Actuation | Pneumatic Actuator |
| Valve Function | Flow Control / Flow Isolation / Shut-Off |
| Connection | Sanitary Clamp / Customized |
| Diaphragm | Sanitary Process Diaphragm |
| Surface Finish | Polished / Sanitary Finish |
| Application | Hygienic Process Piping |
| Automation | Suitable for Automated Systems |
| Customization | Available |
Dimensions, connection standards, pressure ratings, actuator specifications, diaphragm materials, temperature range, and other technical parameters should be confirmed according to the specific valve model.
Pneumatic Diaphragm Valve vs. Manual Diaphragm Valve
The primary difference is the operating method.
A pneumatic diaphragm valve uses compressed air and can be integrated into automated control systems, making it suitable for processes requiring remote or automatic valve operation.
A manual diaphragm valve is operated directly by a handwheel or handle and is generally used where automatic control is not required.
The appropriate configuration depends on the automation level and control requirements of the process system.
Why Choose Our Stainless Steel Pneumatic Diaphragm Valve?
Our stainless steel pneumatic diaphragm valves combine hygienic diaphragm construction with pneumatic actuation for automated process control.
With SS304 and SS316L material options, sanitary connections, and configurable pneumatic operation, the valve can be adapted to a variety of food, beverage, dairy, pharmaceutical, and biotechnology applications.
For systems requiring automated flow control, reliable process isolation, hygienic construction, and easy integration with process automation, this pneumatic diaphragm valve provides a practical sanitary valve solution.
Frequently Asked Questions
What is a pneumatic diaphragm valve?
A pneumatic diaphragm valve is a sanitary valve operated by compressed air. It uses a flexible diaphragm to control or isolate process fluid.
What material is used for pneumatic diaphragm valves?
Common materials include SS304 and SS316L stainless steel. SS316L is often selected for pharmaceutical, biotechnology, and high-purity applications.
Can the pneumatic diaphragm valve be used for automated systems?
Yes. The pneumatic actuator allows the valve to be integrated into automated process control systems.
Does the valve have sanitary clamp connections?
The product shown features sanitary clamp-style connections. Connection configurations should be confirmed according to the specific model.
What industries use pneumatic diaphragm valves?
They are commonly used in pharmaceutical, biotechnology, food, beverage, dairy, brewing, cosmetic, and other hygienic processing industries.
Can the pneumatic diaphragm valve be customized?
Yes. Valve size, connection type, actuator configuration, diaphragm material, surface finish, and other specifications can be customized according to project requirements.
