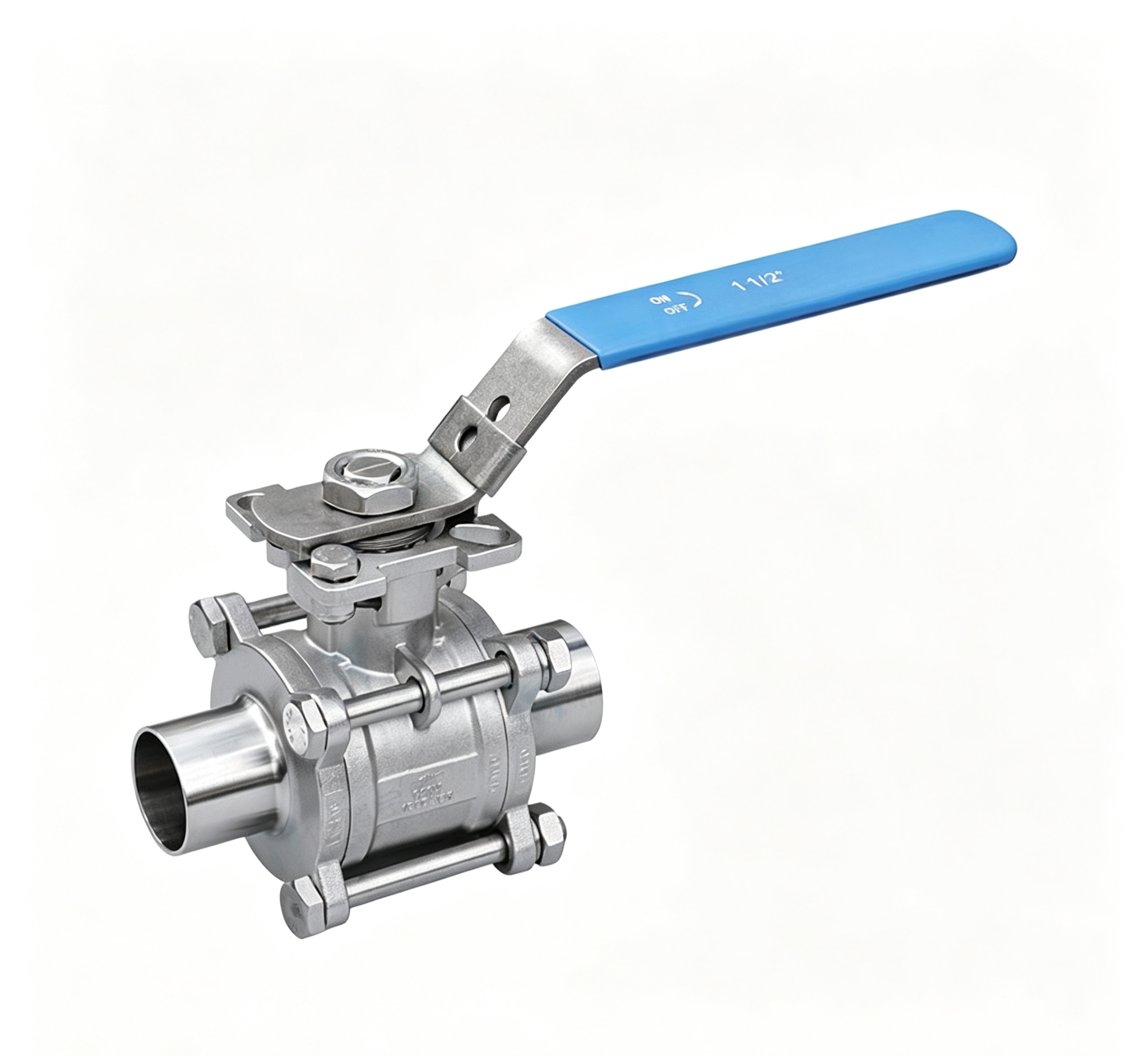

What Is a High Platform All-Inclusive Welded Ball Valve?
A high platform all-inclusive welded ball valve combines a high platform structure, integrated valve configuration, and welded pipe connection in one sanitary valve assembly.
The welded connection provides a permanent connection to the piping system, while the high platform structure can accommodate compatible operating or actuator configurations.
304 Stainless Steel
SS304 provides good corrosion resistance for general food, beverage, dairy, and sanitary process applications.
316L Stainless Steel
SS316L offers enhanced corrosion resistance and is commonly selected for pharmaceutical, biotechnology, and demanding hygienic environments.
Key Features
- High platform valve design
- All-inclusive integrated construction
- Welded pipe connection
- Stainless steel SS304 / SS316L
- Reliable ball-type shut-off
- Compact sanitary configuration
- Suitable for permanent piping installation
- Smooth hygienic surface options
- Manual or actuated configurations available
- Custom specifications available
Applications
The high platform all-inclusive welded ball valve can be used in:
- Food processing
- Beverage production
- Dairy processing
- Brewing systems
- Pharmaceutical manufacturing
- Biotechnology
- Cosmetics production
- Hygienic process piping
- Process equipment
- Stainless steel fluid transfer systems
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | High Platform All-Inclusive Welded Ball Valve |
| Product Type | Stainless Steel Sanitary Ball Valve |
| Material | SS304 / SS316L |
| Valve Type | Ball Valve |
| Structure | High Platform / All-Inclusive |
| Connection | Welded |
| Operation | Manual / Actuated, Depending on Configuration |
| Surface Finish | Polished / Sanitary Finish |
| Installation | Permanent Welded Connection |
| Application | Hygienic Process Piping |
| Industries | Food, Beverage, Dairy, Brewing, Pharmaceutical, Biotechnology |
| Customization | Available |
Why Choose a High Platform All-Inclusive Welded Ball Valve?
This valve combines high platform construction with an integrated welded configuration, making it suitable for sanitary piping systems where a permanent connection and compact valve arrangement are required.
Compared with quick-installation ball valves, the welded design is intended for a more permanent installation. The exact platform structure, actuator compatibility, dimensions, and welding configuration should be confirmed according to the project requirements.
FAQ
What does “high platform” mean?
“High platform” refers to the raised mounting structure of the valve, which can provide a mounting interface for compatible operating or actuation components.
What does “all-inclusive” mean?
In this product name, “all-inclusive” describes an integrated valve configuration. The exact components included should be confirmed according to the specific valve configuration.
Is the connection welded?
Yes. This product is designed with a welded connection for permanent installation in the piping system.
Is it available in SS304 and SS316L?
Yes. Both SS304 and SS316L stainless steel options can be supplied according to application requirements.
Can the valve be customized?
Yes. Size, welded connection dimensions, platform configuration, operating method, surface finish, and other specifications can be customized.
Request a Quote
Looking for a high platform all-inclusive welded ball valve for your sanitary piping system?
Send us your size, material, connection dimensions, operating method, process medium, temperature, and pressure, and we can recommend a suitable configuration.
