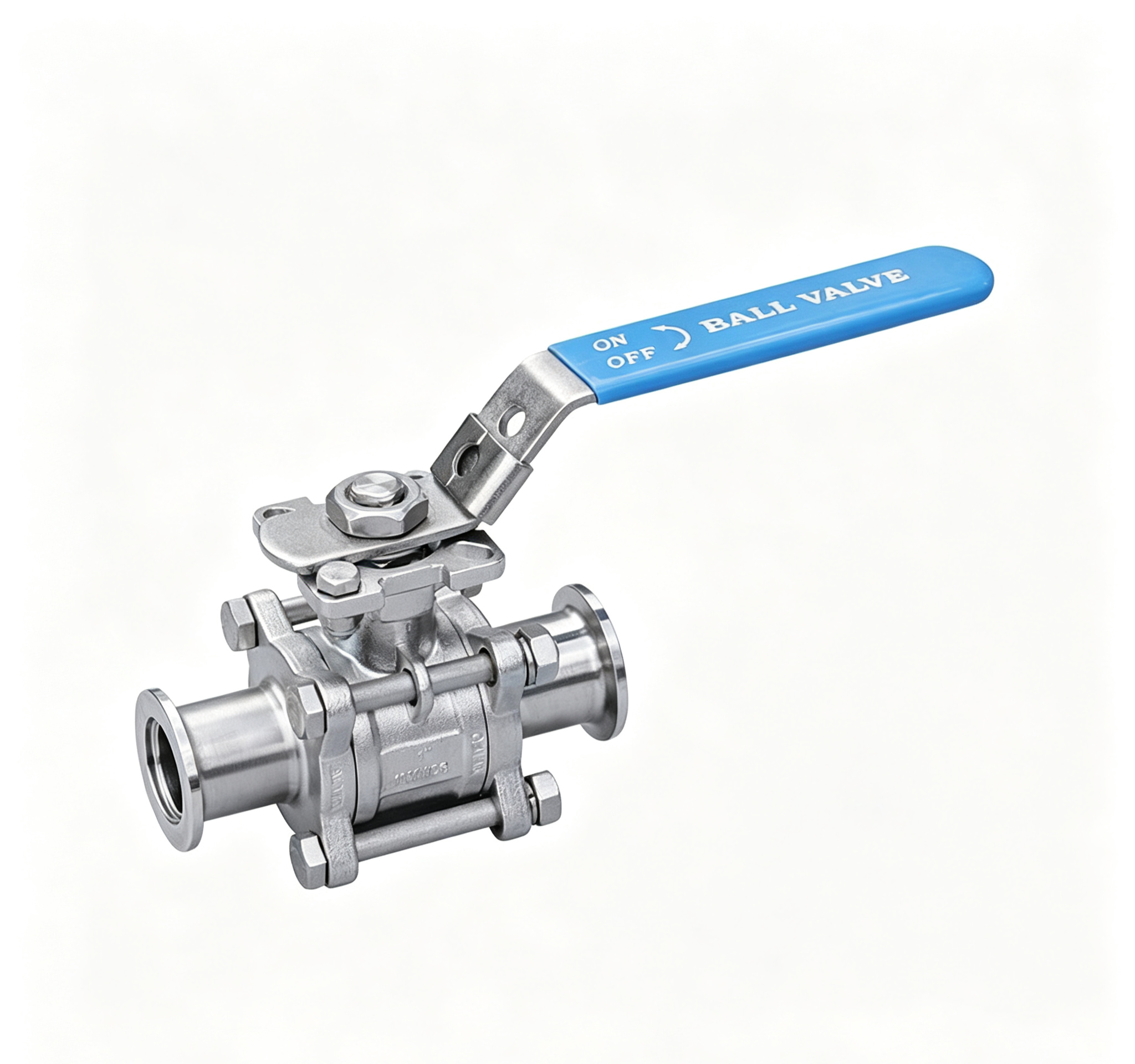

What Is a 3PC Vacuum Ball Valve?
A 3PC Vacuum Ball Valve is a three-piece ball valve designed for vacuum applications. The three-piece body structure provides access to the internal valve components when maintenance or cleaning is required.
For vacuum applications, the sealing materials and valve configuration should be selected according to the required vacuum level, temperature, and process medium.
304 Stainless Steel
SS304 provides good corrosion resistance and is suitable for many general vacuum and sanitary process applications.
316L Stainless Steel
SS316L provides enhanced corrosion resistance and is commonly selected for pharmaceutical, biotechnology, chemical, and more demanding hygienic environments.
Key Features
- Three-piece valve body construction
- Designed for vacuum service
- Stainless steel SS304 / SS316L
- Reliable ball-type shut-off
- Easy disassembly and maintenance
- Replaceable internal components
- Compact process valve design
- Good corrosion resistance
- Suitable for hygienic process systems
- Custom connection and configuration options
Applications
The 3PC vacuum ball valve can be used in:
- Vacuum process systems
- Food processing equipment
- Beverage processing
- Dairy systems
- Pharmaceutical manufacturing
- Biotechnology equipment
- Chemical process systems
- Vacuum transfer systems
- Hygienic process piping
- Process equipment
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | 3PC Vacuum Ball Valve |
| Product Type | Stainless Steel Three-Piece Vacuum Ball Valve |
| Material | SS304 / SS316L |
| Valve Type | Ball Valve |
| Body Construction | Three-Piece |
| Service | Vacuum / Process Fluid |
| Operation | Manual / Actuated, Depending on Configuration |
| Connection | Customized / According to Configuration |
| Surface Finish | Polished / Sanitary Finish |
| Sealing | Selected According to Vacuum & Process Conditions |
| Application | Vacuum & Hygienic Process Piping |
| Customization | Available |
Why Choose a 3PC Vacuum Ball Valve?
The main advantages are the combination of three-piece construction and vacuum service capability.
The three-piece design allows the valve to be disassembled for inspection and maintenance, while the ball mechanism provides straightforward flow isolation. For vacuum applications, proper sealing materials and configuration are particularly important for maintaining the required vacuum performance.
FAQ
What does 3PC mean?
3PC means three-piece construction. The valve body consists of three main sections, allowing easier disassembly and maintenance.
Is this ball valve suitable for vacuum applications?
Yes. It is designed for vacuum service, but the actual vacuum performance depends on the valve configuration, sealing materials, temperature, and required vacuum level.
Is it available in SS304 and SS316L?
Yes. The valve can be supplied in SS304 or SS316L stainless steel.
Can the connection be customized?
Yes. Connection type, dimensions, valve size, and other specifications can be customized according to the piping system.
How should I select a 3PC vacuum ball valve?
Selection should consider the required vacuum level, process medium, operating temperature, pressure conditions, valve size, connection type, and sealing material.
Request a Quote
Looking for a 3PC vacuum ball valve for your vacuum or sanitary process system?
Send us your vacuum level, valve size, material, connection type, process medium, temperature, and operating requirements, and we can recommend a suitable configuration.
