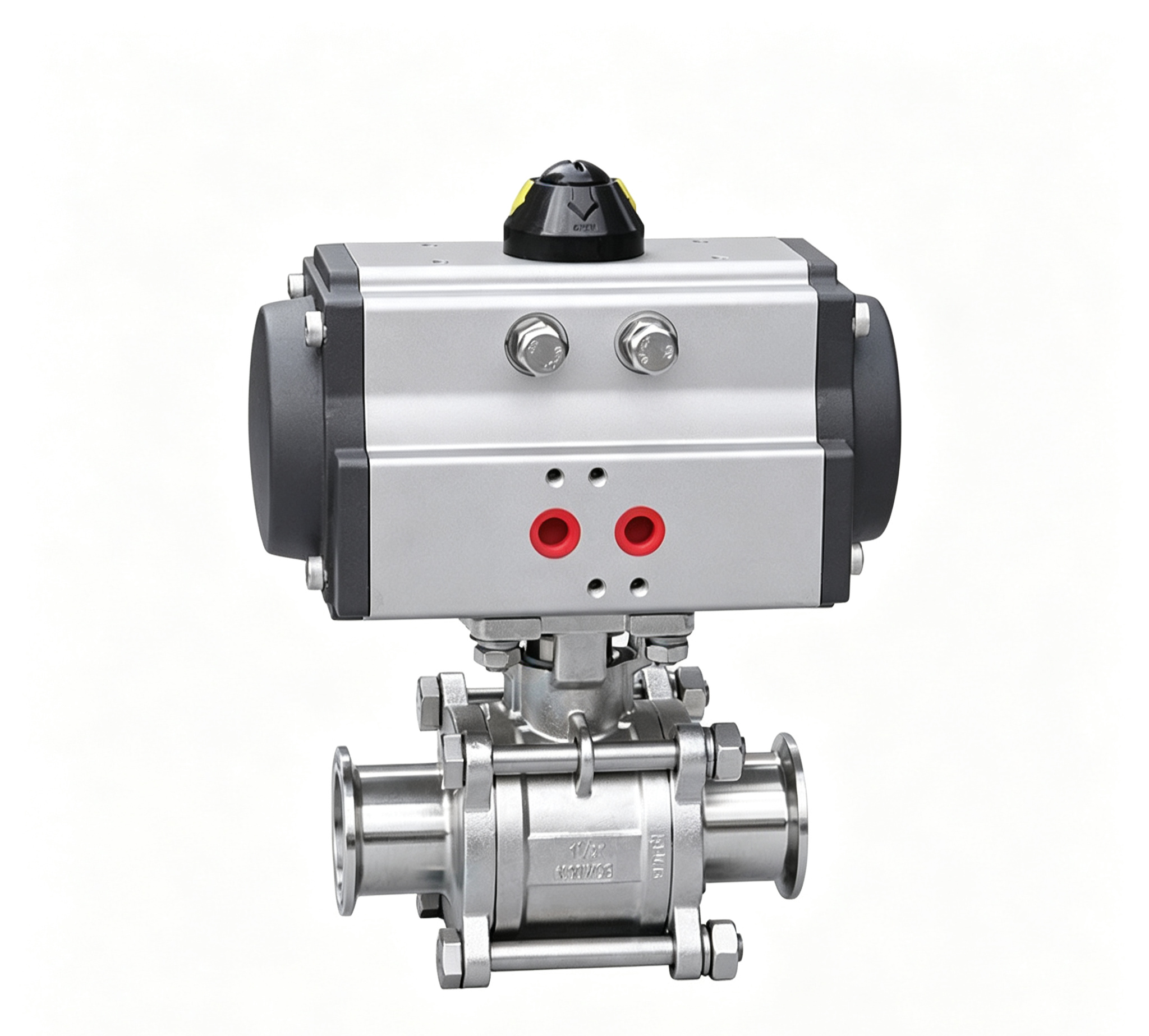

What Is a Pneumatic Quick Installation Ball Valve?
A pneumatic quick installation ball valve is a pneumatically actuated ball valve equipped with a quick-installation connection.
The pneumatic actuator allows the valve to be integrated into automated process-control systems, while the quick-installation design makes the valve convenient to install, remove, inspect, and maintain.
304 Stainless Steel
SS304 provides good corrosion resistance for general sanitary applications, including food, beverage, dairy, and processing equipment.
316L Stainless Steel
SS316L offers enhanced corrosion resistance and is commonly selected for pharmaceutical, biotechnology, and more demanding hygienic process environments.
Key Features
- Pneumatic automatic operation
- Quick installation and removal
- Stainless steel SS304 / SS316L construction
- Ball-type shut-off design
- Suitable for automated process control
- Convenient maintenance and inspection
- Compact sanitary valve structure
- Good corrosion resistance
- Suitable for frequent operating cycles
- Customized configurations available
Applications
The pneumatic quick installation ball valve can be used in:
- Food processing
- Beverage production
- Dairy processing
- Brewing systems
- Pharmaceutical manufacturing
- Biotechnology
- Cosmetics production
- Automated process piping
- Hygienic fluid transfer
- Process equipment
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Pneumatic Quick Installation Ball Valve |
| Product Type | Stainless Steel Pneumatic Sanitary Ball Valve |
| Material | SS304 / SS316L |
| Valve Type | Ball Valve |
| Actuation | Pneumatic |
| Installation | Quick Installation / Removable |
| Connection | Quick Installation / Customized |
| Operation | Automated |
| Surface Finish | Polished / Sanitary Finish |
| Size | Customized |
| Application | Automated Hygienic Process Piping |
| Industries | Food, Beverage, Dairy, Brewing, Pharmaceutical, Biotechnology |
| Customization | Available |
Why Choose a Pneumatic Quick Installation Ball Valve?
This valve combines two important functions: automated pneumatic operation and quick installation.
The pneumatic actuator allows the valve to work with automated control systems, while the removable connection simplifies installation and routine maintenance. This makes it suitable for process lines where automated flow control and convenient servicing are both required.
The actuator, sealing components, connection type, and other specifications should be selected according to the actual operating conditions.
FAQ
What is a pneumatic quick installation ball valve?
It is a stainless steel ball valve equipped with a pneumatic actuator and a quick-installation connection for automated flow shut-off and convenient maintenance.
What are the advantages of pneumatic operation?
Pneumatic actuation allows the valve to be operated remotely and integrated into automated process-control systems.
Is it available in SS304 and SS316L?
Yes. The valve can be supplied in SS304 or SS316L stainless steel, depending on the application.
Is the valve easy to remove?
The quick-installation connection is designed to make installation and removal more convenient for inspection, cleaning, and maintenance.
Can the valve be customized?
Yes. Valve size, connection configuration, actuator requirements, surface finish, and other specifications can be customized according to project requirements.
Request a Quote
Looking for a pneumatic quick installation ball valve for an automated sanitary piping system?
Send us your required size, material, connection type, operating pressure, process medium, and pneumatic control requirements, and we can recommend a suitable configuration.
