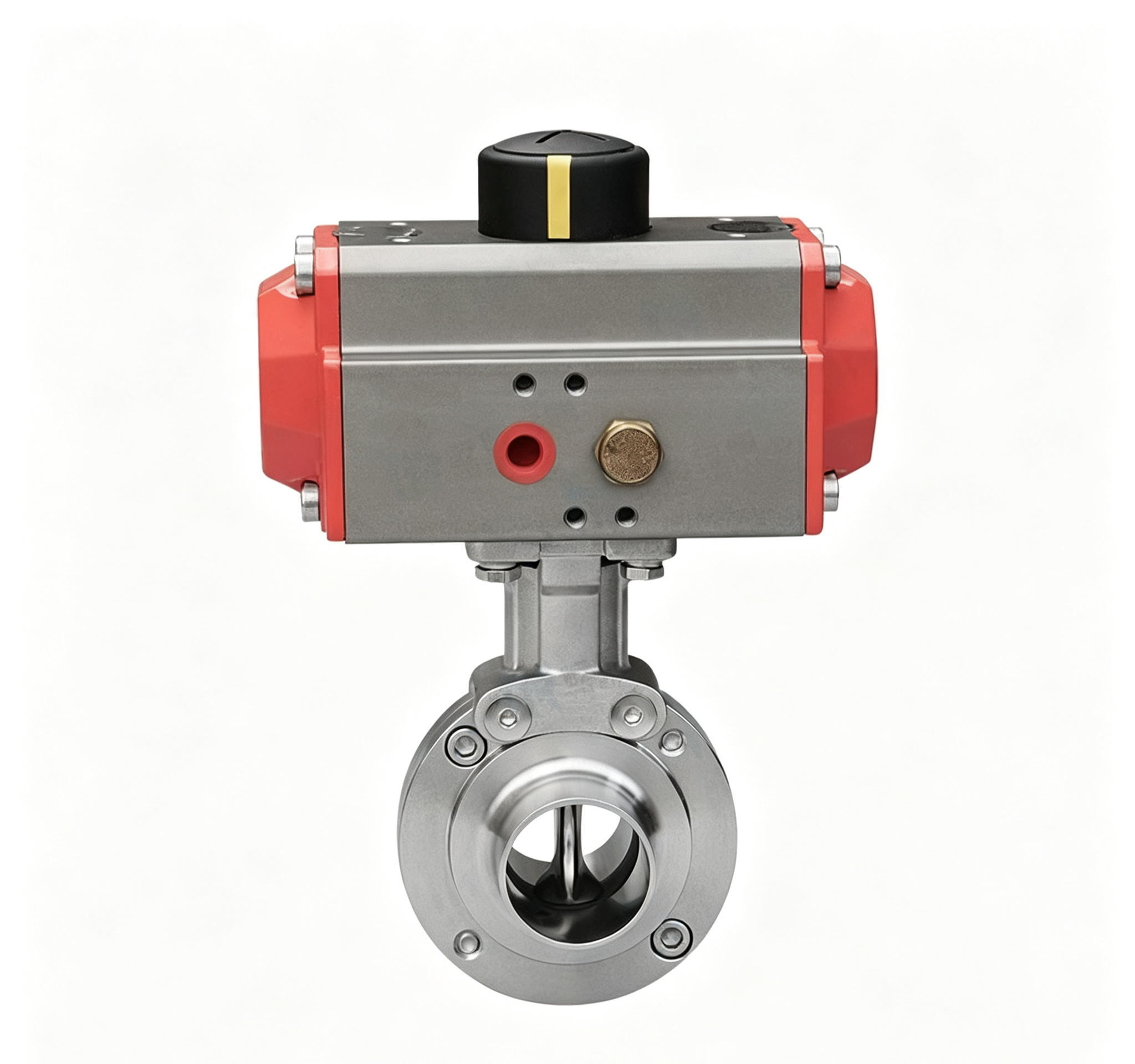

What Is a Pneumatic Welding Butterfly Valve?
A Pneumatic Welding Butterfly Valve combines:
- Pneumatic actuation for automated operation
- Welded connection for permanent installation
- Butterfly valve structure for efficient flow control and isolation
The welded configuration is suitable for process systems where a fixed, integrated piping connection is preferred.
Key Features
- Stainless steel sanitary construction
- Available in SS304 and SS316L
- Pneumatic actuator for automated operation
- Welded connection
- Permanent installation
- Suitable for flow control and isolation
- Compact butterfly valve design
- Smooth sanitary surface finish
- Suitable for automated process lines
- Custom configurations available
Material Options
SS304 Stainless Steel
SS304 offers good corrosion resistance for general food, beverage, water and hygienic process applications.
SS316L Stainless Steel
SS316L provides enhanced corrosion resistance for demanding dairy, pharmaceutical, biotech and other sanitary processing environments.
Applications
The Pneumatic Welding Butterfly Valve can be used in:
- Food processing
- Beverage production
- Dairy processing
- Brewing systems
- Pharmaceutical manufacturing
- Biotech processing
- Automated production lines
- Hygienic fluid control
- Sanitary process piping
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Pneumatic Welding Butterfly Valve |
| Product Type | Stainless Steel Sanitary Butterfly Valve |
| Material | SS304 / SS316L |
| Valve Type | Butterfly Valve |
| Operating Method | Pneumatic |
| Connection Type | Welded |
| Installation | Permanent Welded Connection |
| Actuation | Pneumatic Actuator |
| Function | Flow Control / Flow Isolation |
| Surface Finish | Polished / Sanitary Finish |
| Application | Hygienic Process Piping |
| Automation | Suitable for Automated Systems |
| Customization | Available |
Note: Exact actuator specifications, welding dimensions, pressure rating, sealing materials and control accessories should be confirmed according to the actual valve configuration.
Why Choose the Pneumatic Welding Butterfly Valve?
This valve combines automated pneumatic operation with a permanent welded connection.
The pneumatic actuator allows integration into automated process-control systems, while the welded connection provides a fixed connection between the valve and sanitary piping.
Compared with a Pneumatic Quick-Install Butterfly Valve, this model focuses on permanent welded installation rather than removable connection.
FAQ
1. What materials are available?
The valve can be supplied in SS304 or SS316L stainless steel.
2. Is the valve pneumatically operated?
Yes. It is designed with a pneumatic actuator for automated valve operation.
3. What type of connection does it use?
This model uses a welded connection for permanent installation in compatible sanitary piping systems.
4. Can it be integrated into an automated process line?
Yes. The pneumatic actuator allows the valve to be integrated with suitable automated process-control systems.
5. Can the valve be customized?
Yes. Material, valve size, welding configuration, actuator specifications and other requirements can be customized according to the project.
