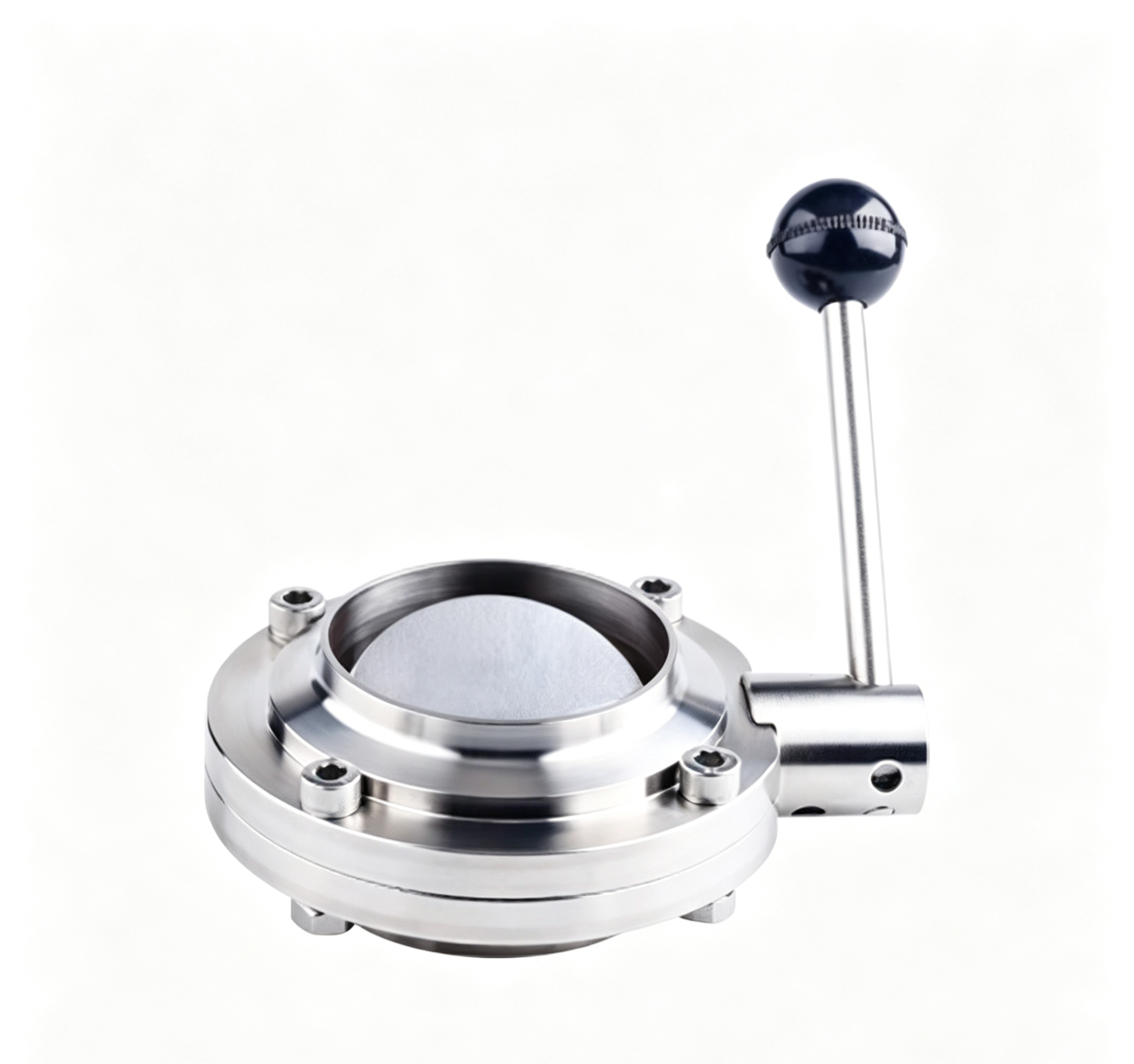

What Is a Welded Butterfly Valve?
A Welded Butterfly Valve uses a welded connection to integrate the valve directly with the sanitary piping system.
The butterfly disc rotates around its shaft to control or shut off fluid flow. The welded design provides a fixed connection and is suitable for permanent sanitary piping installations.
Key Features
- Stainless steel sanitary construction
- Available in SS304 and SS316L
- Welded pipe connection
- Permanent installation
- Butterfly valve design
- Suitable for flow control and isolation
- Compact construction
- Smooth sanitary surface finish
- Suitable for hygienic process piping
- Manual or customized operating options
- Available for different sanitary piping configurations
Material Options
SS304 Stainless Steel
SS304 provides good corrosion resistance and is widely used in food, beverage, water and general sanitary processing systems.
SS316L Stainless Steel
SS316L provides enhanced corrosion resistance and is suitable for more demanding dairy, pharmaceutical, biotech and hygienic process applications.
Applications
Welded Butterfly Valves are commonly used in:
- Food processing
- Beverage production
- Dairy processing
- Brewing systems
- Pharmaceutical manufacturing
- Biotech processing
- Hygienic water systems
- Sanitary process piping
- Fluid flow control and isolation
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Welded Butterfly Valve |
| Product Type | Stainless Steel Sanitary Butterfly Valve |
| Material | SS304 / SS316L |
| Valve Type | Butterfly Valve |
| Connection Type | Welded |
| Installation | Permanent Welded Connection |
| Operating Method | Manual / Customized |
| Function | Flow Control / Flow Isolation |
| Surface Finish | Polished / Sanitary Finish |
| Application | Hygienic Process Piping |
| Industries | Food, Beverage, Dairy, Brewing, Pharmaceutical |
| Customization | Available |
Note: Exact dimensions, welding specifications, sealing materials, pressure ratings and operating configurations should be confirmed according to the specific valve model and application.
Why Choose the Welded Butterfly Valve?
The primary advantage of this valve is its permanent welded connection. It can be integrated directly into a sanitary pipeline, making it suitable for fixed process installations.
Compared with quick-install butterfly valves, the welded version is intended for applications where the valve does not need to be frequently removed from the pipeline.
For automated systems, a pneumatic actuator can also be selected where applicable.
FAQ
1. What material is the welded butterfly valve made from?
It is available in SS304 and SS316L stainless steel.
2. What type of connection does it use?
The valve uses a welded connection for permanent installation in compatible sanitary piping.
3. Can it be used for food and beverage processing?
Yes. Stainless steel sanitary construction makes it suitable for food, beverage, dairy, brewing and other hygienic applications.
4. Is the welded butterfly valve available with pneumatic operation?
Depending on the configuration, a pneumatic actuator can be used for automated operation.
5. Can the valve be customized?
Yes. Material, size, welding configuration, operating method and other specifications can be customized according to project requirements.
Request a Quote
Looking for a Welded Butterfly Valve for your sanitary process piping system?
Send us your required size, material, connection configuration and application, and we can provide a suitable stainless steel sanitary valve solution.
