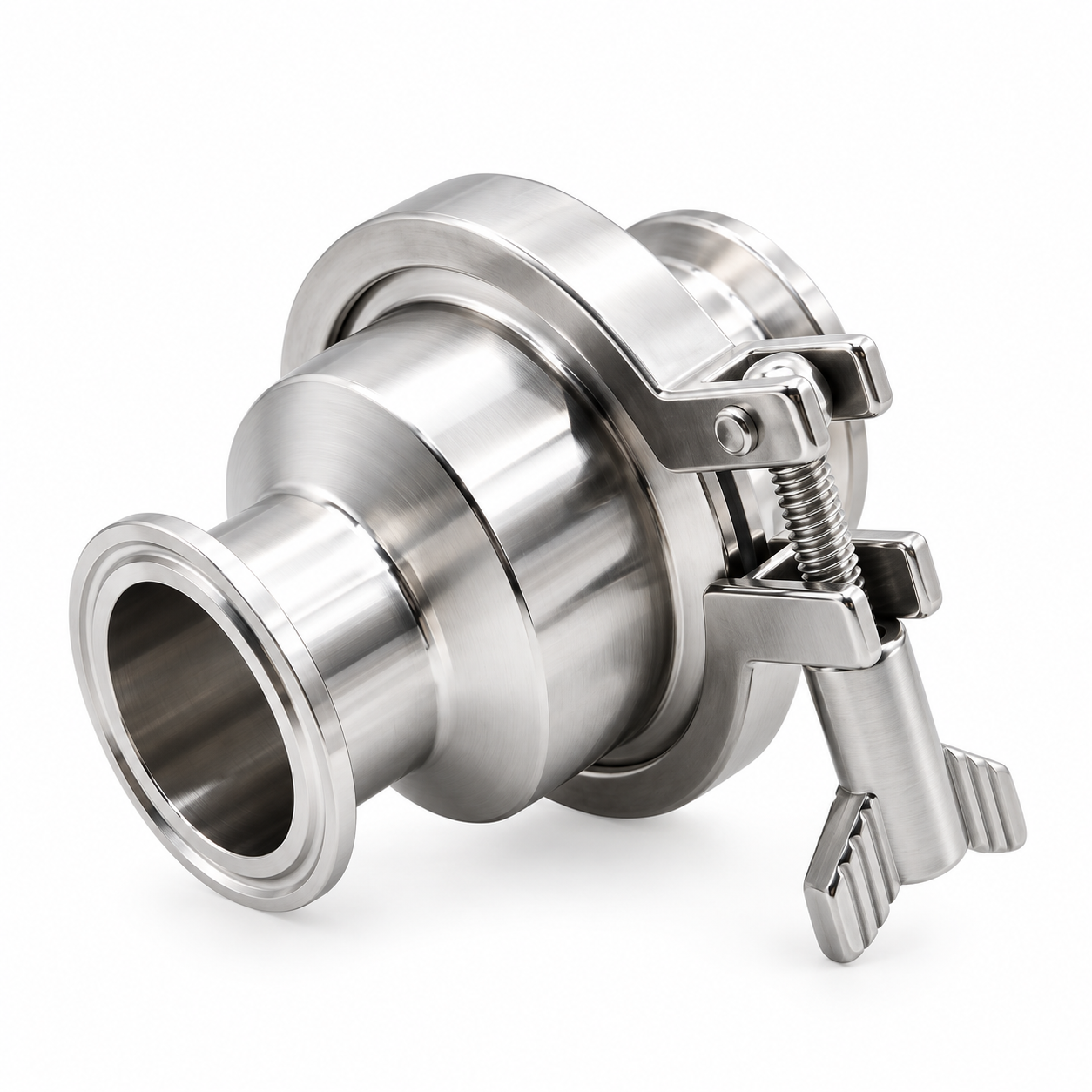

What Is a Quick-Install Check Valve?
A quick-install check valve is a sanitary non-return valve that allows fluid to flow in one direction while helping prevent reverse flow.
Unlike a permanently welded check valve, the quick-install design uses a removable sanitary connection, making it easier to service or replace the valve when required.
Key Features
- Stainless steel sanitary construction
- Available in SS304 and SS316L
- Quick-install removable connection
- Automatic one-way flow control
- Helps prevent backflow
- Easy installation and removal
- Convenient inspection and maintenance
- Compact valve design
- Polished or sanitary surface finish
- Suitable for hygienic process piping
- Custom configurations available
Stainless Steel Material Options
SS304 Stainless Steel
SS304 provides good corrosion resistance and is commonly used in food, beverage, dairy, brewing, and general hygienic process systems.
SS316L Stainless Steel
SS316L provides enhanced corrosion resistance and is commonly selected for pharmaceutical, biotechnology, and demanding hygienic process environments.
Applications
The Quick-Install Check Valve can be used in:
- Food processing systems
- Beverage production
- Dairy processing
- Brewing systems
- Pharmaceutical manufacturing
- Biotechnology processing
- Hygienic liquid transfer
- Sanitary water systems
- Tank and vessel piping
- Pump and process equipment
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Quick-Install Check Valve |
| Product Type | Stainless Steel Sanitary Check Valve |
| Material | SS304 / SS316L |
| Valve Type | Check Valve / Non-Return Valve |
| Flow Direction | One-Way |
| Operating Method | Automatic |
| Connection Type | Quick-Install / Sanitary Clamp |
| Installation | Removable |
| Function | Backflow Prevention |
| Body Construction | Stainless Steel |
| Surface Finish | Polished / Sanitary Finish |
| Application | Hygienic Process Piping |
| Industries | Food / Beverage / Dairy / Brewing / Pharmaceutical |
| Customization | Available |
How Does a Quick-Install Check Valve Work?
The valve allows process fluid to pass through in the intended direction. When the flow reverses, the internal closing mechanism moves toward the closed position, helping prevent unwanted backflow.
Because the valve operates automatically, no manual handle or actuator is normally required.
Advantages of Quick Installation
The removable sanitary connection provides practical benefits for process systems:
- Faster installation
- Easier removal
- Convenient inspection
- Simplified maintenance
- Easier valve replacement
- Greater flexibility during piping modifications
Quick-Install Check Valve vs. Welded Check Valve
| Feature | Quick-Install Check Valve | Welded Check Valve |
|---|---|---|
| Connection | Quick-Install / Clamp | Welded |
| Installation | Removable | Permanent |
| Maintenance | Easier removal | More involved |
| Replacement | Convenient | Requires pipework intervention |
| Typical Use | Maintenance-friendly systems | Permanent process piping |
FAQ
What is a quick-install check valve?
A quick-install check valve is a stainless steel sanitary non-return valve with a removable connection designed for one-way flow and backflow prevention.
What materials are available?
Common options include SS304 and SS316L stainless steel.
Does the valve require manual operation?
No. The check valve normally operates automatically according to the direction and pressure of the process medium.
Is it suitable for food and beverage processing?
Yes. Suitable configurations can be used in food, beverage, dairy, brewing, and other hygienic process systems.
What is the advantage of a quick-install connection?
It allows the valve to be installed, removed, inspected, and serviced more conveniently than a permanently welded valve.
Can the valve be customized?
Yes. Material, connection dimensions, surface finish, and other specifications can be customized according to project requirements.
