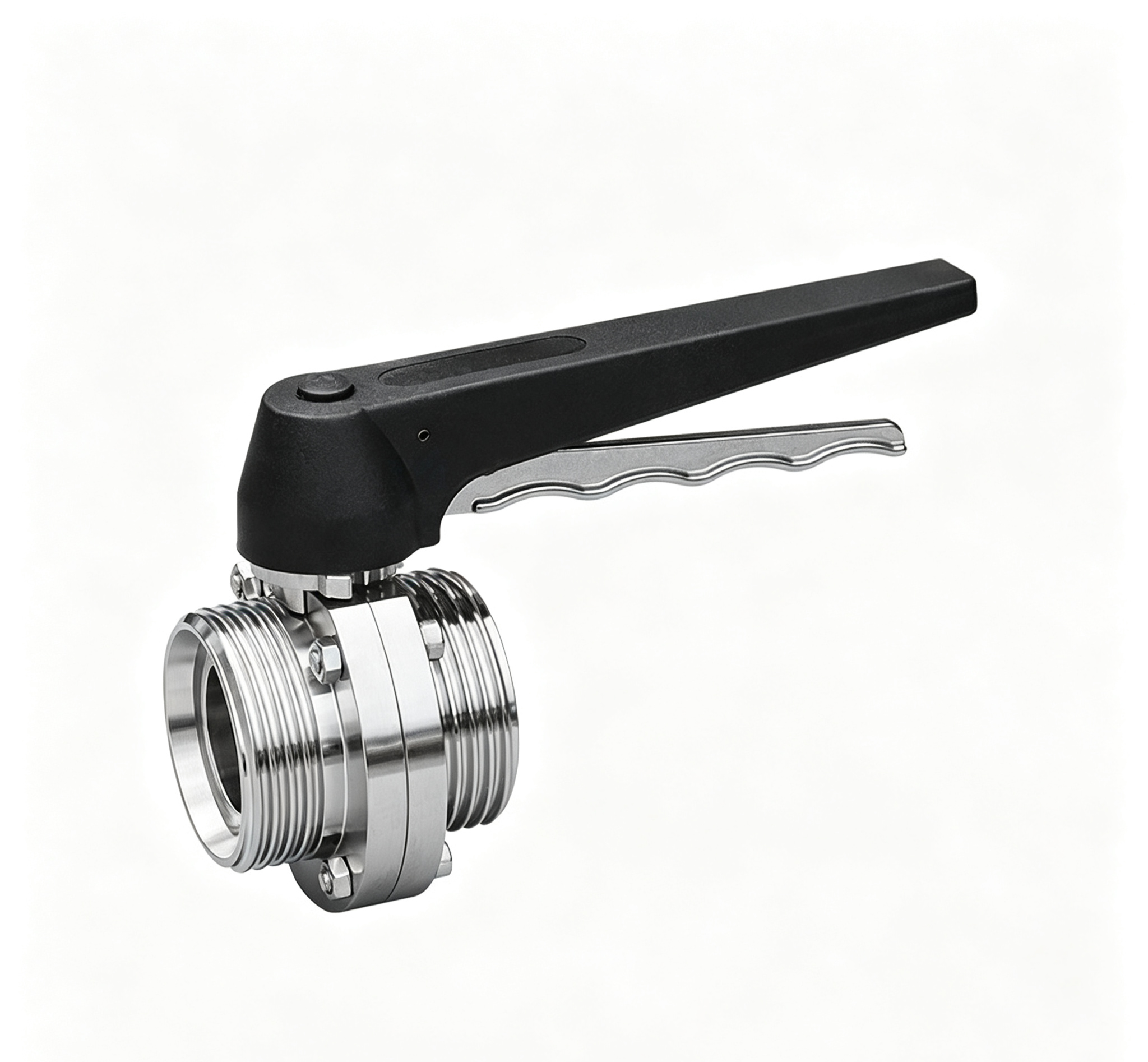

What Is a Duck-Billed External Thread Butterfly Valve?
A Duck-Billed External Thread Butterfly Valve combines three key design features:
- Duck-billed valve structure for the specified valve configuration
- External threaded connection for compatible sanitary piping connections
- Butterfly valve mechanism for flow control and isolation
The valve can be operated manually and is suitable for applications requiring convenient on/off flow control and a compact sanitary valve arrangement.
Key Features
- Stainless steel sanitary construction
- Available in SS304 and SS316L
- Duck-billed structural design
- External threaded connection
- Manual flow control and isolation
- Compact installation design
- Smooth sanitary surface finish
- Suitable for hygienic process piping
- Easy to integrate with compatible threaded piping components
- Custom configurations available according to application requirements
Material Options
SS304 Stainless Steel
SS304 provides good corrosion resistance and is commonly used in food, beverage, water and general hygienic processing systems.
SS316L Stainless Steel
SS316L offers enhanced corrosion resistance and is suitable for more demanding hygienic and pharmaceutical process environments.
Applications
Duck-Billed External Thread Butterfly Valves can be used in:
- Food processing
- Beverage production
- Dairy processing
- Brewing systems
- Pharmaceutical processing
- Biotech equipment
- Hygienic water systems
- Sanitary process piping
- General fluid control applications
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Duck-Billed External Thread Butterfly Valve |
| Product Type | Stainless Steel Sanitary Butterfly Valve |
| Material | SS304 / SS316L |
| Valve Type | Butterfly Valve |
| Structural Design | Duck-Billed |
| Operating Method | Manual / According to Configuration |
| Connection Type | External Thread |
| Thread Specification | According to Configuration |
| Function | Flow Control / Flow Isolation |
| Surface Finish | Polished / Sanitary Finish |
| Application | Hygienic Process Piping |
| Customization | Available |
Note: Exact thread specifications, dimensions, sealing materials and operating configuration should be confirmed according to the customer’s piping requirements.
Why Choose the Duck-Billed External Thread Butterfly Valve?
This valve is designed for applications where butterfly flow control, external threaded connection and the specified duck-billed structure are required in one sanitary valve.
Compared with a welded butterfly valve, the external thread connection provides a different installation method and can be selected for piping systems designed around compatible threaded connections.
FAQ
1. What material is the valve made from?
The valve can be supplied in SS304 or SS316L stainless steel, depending on the application.
2. What type of connection does it use?
This model uses an external threaded connection. The exact thread specification should be confirmed according to the required configuration.
3. Is it suitable for food and beverage applications?
Yes. The stainless steel sanitary construction makes it suitable for food, beverage, dairy, brewing and other hygienic process systems.
4. Is the valve manually operated?
The product can be configured for manual operation. Other operating configurations should be confirmed according to the specific model.
5. Can the valve be customized?
Yes. Material, connection configuration, surface finish and other specifications can be customized according to project requirements.
Request a Quote
Looking for a Duck-Billed External Thread Butterfly Valve for your sanitary piping system?
Send us your required material, size, connection type and application, and we can provide the appropriate stainless steel sanitary butterfly valve configuration.
