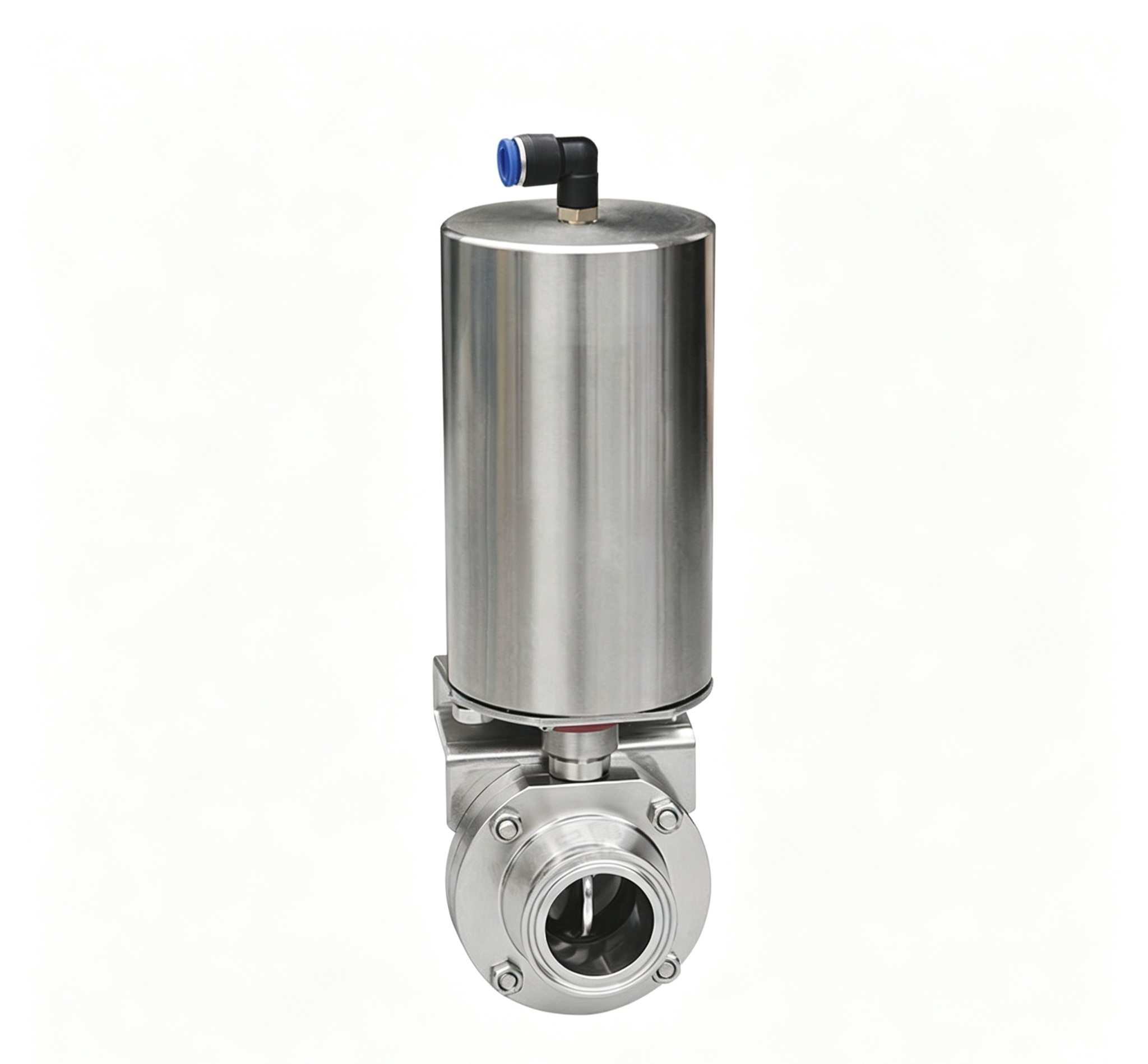

What Is a Pneumatic Quick-Install Butterfly Valve?
A Pneumatic Quick-Install Butterfly Valve combines two key functions:
- Pneumatic actuation for automated valve operation
- Quick-install connection for convenient assembly and disassembly
The pneumatic actuator can be integrated into an automated process-control system, while the quick-install design facilitates installation and maintenance.
Key Features
- Stainless steel sanitary construction
- Available in SS304 and SS316L
- Pneumatic actuator for automated operation
- Quick-install/removable connection
- Fast installation and maintenance
- Suitable for flow control and isolation
- Compact sanitary valve design
- Smooth hygienic surface finish
- Suitable for automated process piping
- Custom configurations available
Material Options
SS304 Stainless Steel
SS304 provides good corrosion resistance and is suitable for general food, beverage, water and hygienic processing applications.
SS316L Stainless Steel
SS316L offers enhanced corrosion resistance and is suitable for more demanding dairy, pharmaceutical, biotech and hygienic process environments.
Applications
The Pneumatic Quick-Install Butterfly Valve can be used in:
- Food processing
- Beverage production
- Dairy processing
- Brewing systems
- Pharmaceutical manufacturing
- Biotech processing
- Automated process lines
- Hygienic fluid control
- Sanitary process piping
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Pneumatic Quick-Install Butterfly Valve |
| Product Type | Stainless Steel Sanitary Butterfly Valve |
| Material | SS304 / SS316L |
| Valve Type | Butterfly Valve |
| Operating Method | Pneumatic |
| Connection Type | Quick-Install / Removable |
| Actuation | Pneumatic Actuator |
| Function | Flow Control / Flow Isolation |
| Surface Finish | Polished / Sanitary Finish |
| Application | Hygienic Process Piping |
| Automation | Suitable for Automated Systems |
| Customization | Available |
Note: Exact actuator specifications, connection dimensions, pressure rating, sealing material and control accessories should be confirmed according to the specific valve configuration and process requirements.
Why Choose the Pneumatic Quick-Install Butterfly Valve?
This valve combines pneumatic automation with a quick-install sanitary connection.
The pneumatic actuator allows the valve to be integrated into automated process systems, while the removable connection can simplify installation, inspection and maintenance.
Compared with a manual quick-install butterfly valve, this configuration is more suitable for applications requiring automated or remotely controlled flow operation.
FAQ
1. What material is the valve available in?
The valve is available in SS304 and SS316L stainless steel.
2. Is this valve manually operated?
No. This model is designed for pneumatic operation, although the exact actuator and control configuration can vary.
3. What is the advantage of the quick-install design?
The quick-install connection allows convenient assembly and disassembly, which can help simplify installation and routine maintenance.
4. Can it be used in automated production lines?
Yes. The pneumatic actuator makes the valve suitable for integration into automated sanitary process-control systems.
5. Can the pneumatic actuator be customized?
Yes. Actuator specifications and control accessories can be selected according to the required application and automation system.
Request a Quote
Looking for a Pneumatic Quick-Install Butterfly Valve for your automated sanitary process system?
Send us your required valve size, material, connection type, actuator requirements and application, and we can provide a suitable configuration.
