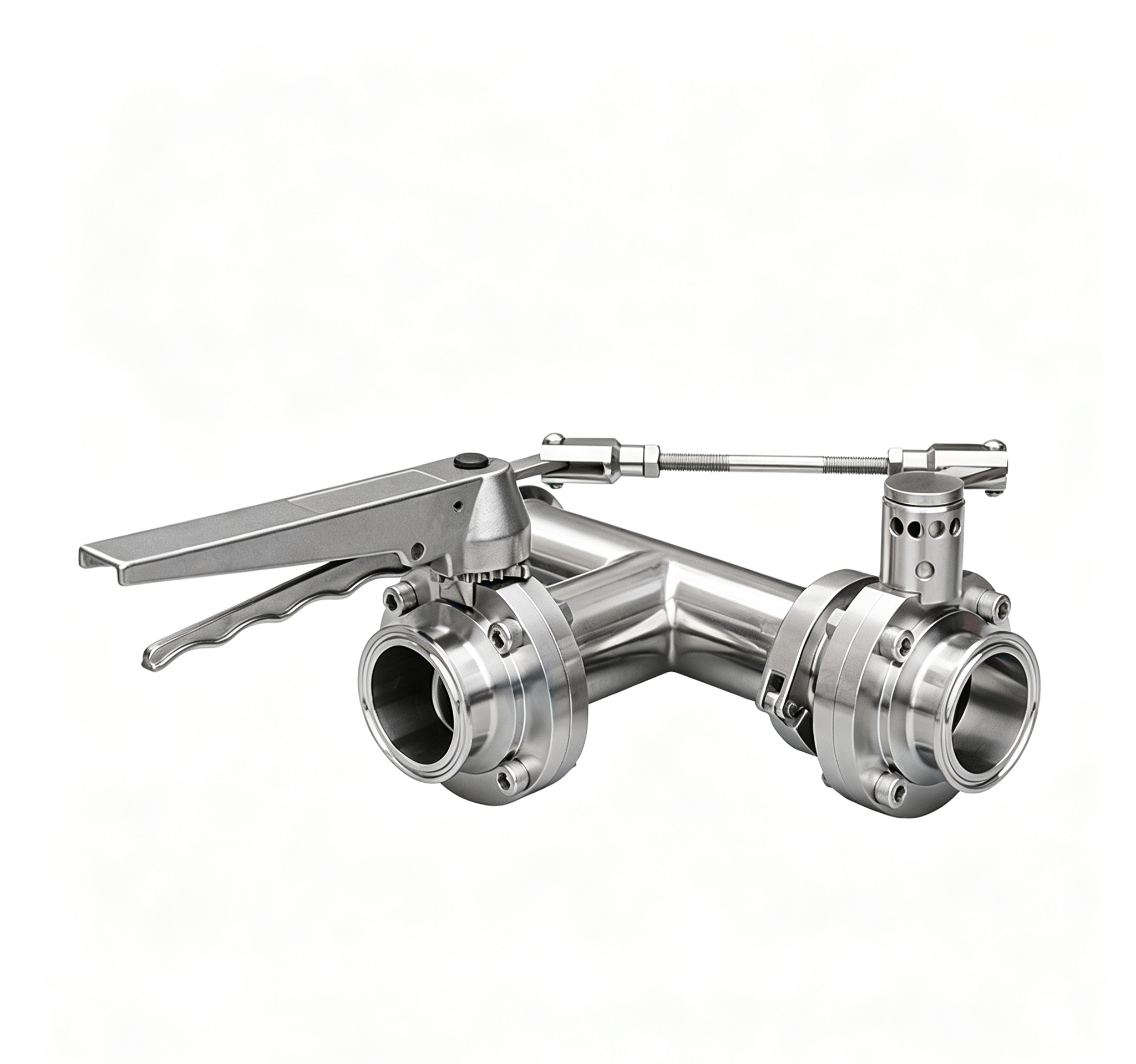

What Is a Three-Way Linkage Butterfly Valve?
A Three-Way Linkage Butterfly Valve combines a three-way piping configuration with a linkage operating mechanism.
The linkage structure allows multiple valve components or flow paths to be coordinated during operation, making it suitable for systems where synchronized flow control or switching is required.
Key Features
- Stainless steel sanitary construction
- Available in SS304 and SS316L
- Three-way flow configuration
- Linkage operating mechanism
- Coordinated flow control
- Suitable for flow switching and isolation
- Compact sanitary valve design
- Smooth and easy-to-clean surface
- Suitable for hygienic process piping
- Custom configurations available
Material Options
SS304 Stainless Steel
SS304 provides good corrosion resistance and is commonly used in food, beverage, water and general sanitary processing systems.
SS316L Stainless Steel
SS316L offers enhanced corrosion resistance and is suitable for demanding dairy, pharmaceutical, biotech and hygienic process applications.
Applications
Three-Way Linkage Butterfly Valves can be used in:
- Food processing
- Beverage production
- Dairy processing
- Brewing systems
- Pharmaceutical processing
- Biotech equipment
- Hygienic fluid systems
- Process flow switching
- Sanitary piping systems
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Three-Way Linkage Butterfly Valve |
| Product Type | Stainless Steel Sanitary Butterfly Valve |
| Material | SS304 / SS316L |
| Valve Type | Butterfly Valve |
| Configuration | Three-Way |
| Operating Mechanism | Linkage |
| Operation | Manual / According to Configuration |
| Connection | Sanitary / Customized |
| Function | Flow Control / Flow Switching / Isolation |
| Surface Finish | Polished / Sanitary Finish |
| Application | Hygienic Process Piping |
| Customization | Available |
Note: The exact linkage structure, port arrangement, connection type, dimensions and operating method should be confirmed according to the specific valve configuration.
Why Choose the Three-Way Linkage Butterfly Valve?
The key feature of this valve is the combination of a three-way configuration and linkage operation. This makes it suitable for piping systems where multiple flow paths need to be coordinated.
Compared with standard two-way butterfly valves, the three-way configuration provides additional flow-path flexibility. The linkage mechanism can also help coordinate the operation of connected valve sections.
FAQ
1. What material is available?
The valve can be supplied in SS304 or SS316L stainless steel.
2. What does “three-way” mean?
Three-way refers to a valve configuration with three connected flow paths, allowing the valve assembly to control or switch flow between different piping routes.
3. What is the purpose of the linkage mechanism?
The linkage mechanism is designed to coordinate the operation of the relevant valve components according to the specific system configuration.
4. Is it suitable for food and beverage processing?
Yes. Stainless steel sanitary construction makes it suitable for food, beverage, dairy, brewing and other hygienic process applications.
5. Can the valve be customized?
Yes. Connection configuration, material, surface finish, operating mechanism and other specifications can be customized according to project requirements.
Request a Quote
Looking for a Three-Way Linkage Butterfly Valve for your sanitary process system?
Send us your required size, material, connection configuration and application, and we can provide a suitable valve configuration.
