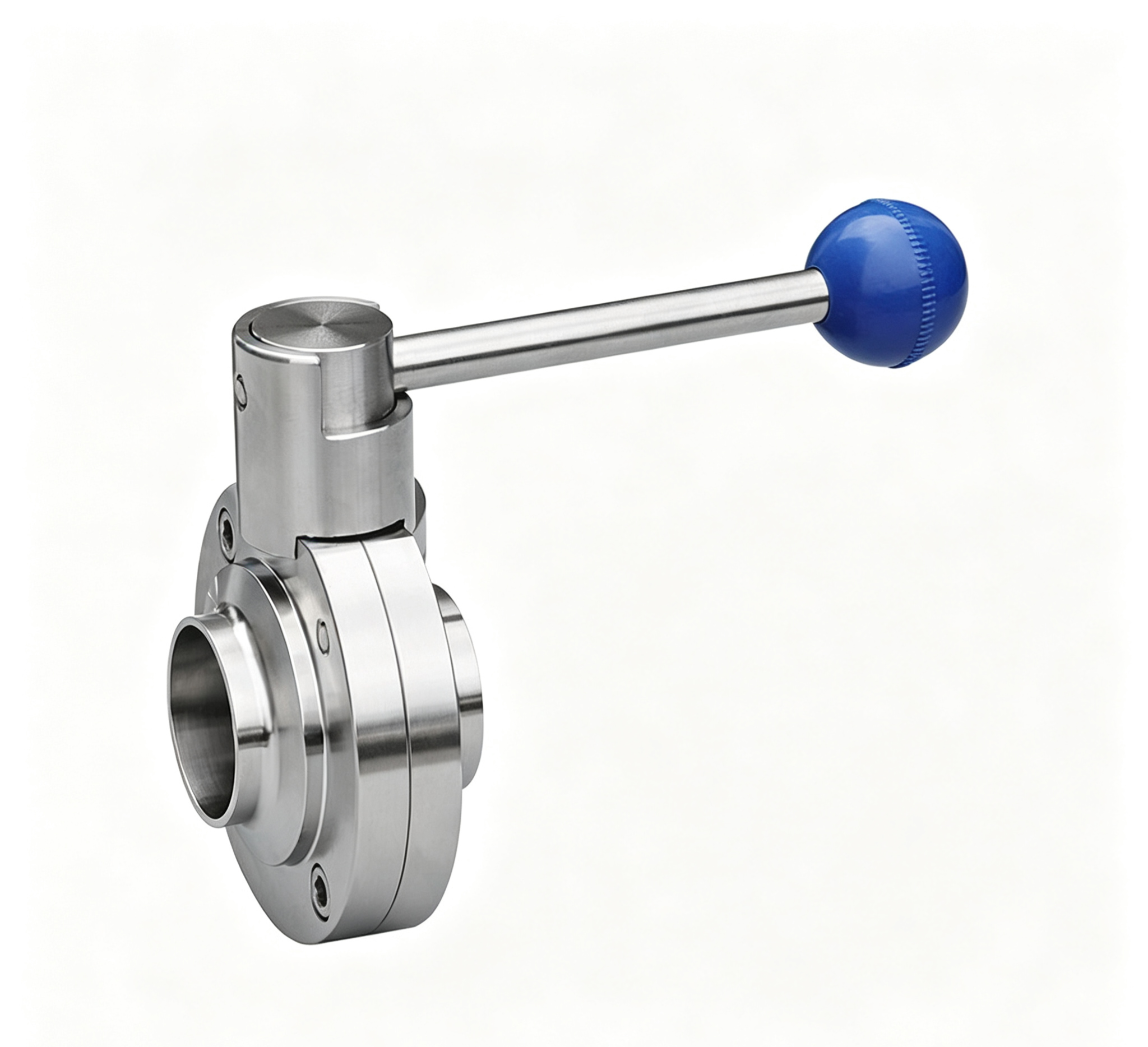

What Is a Pivotal Lever-Type Welded Butterfly Valve?
A Pivotal Lever-Type Welded Butterfly Valve combines a lever-operated butterfly valve mechanism with welded pipe connections.
The lever allows the operator to manually open or close the valve, while the welded connection provides a permanent connection between the valve and the sanitary pipeline. This configuration is suitable for piping systems where a fixed, secure installation is preferred.
Key Features
- Stainless Steel Construction – Available in SS304 and SS316L.
- Lever Operation – Provides straightforward manual flow isolation.
- Welded Connection – Suitable for permanent sanitary piping installation.
- Compact Butterfly Design – Helps save installation space.
- Sanitary Construction – Suitable for hygienic process environments.
- Corrosion Resistance – Stainless steel construction is suitable for food and process applications.
- Easy Operation – Manual lever operation allows quick opening and closing.
- Customizable – Size, material, connection configuration, and finish can be supplied according to requirements.
Applications
The Pivotal Lever-Type Welded Butterfly Valve can be used in:
- Food processing
- Beverage production
- Dairy processing
- Brewing systems
- Pharmaceutical manufacturing
- Biotechnology
- Cosmetic processing
- Hygienic process piping
- Stainless steel fluid transfer systems
- Sanitary processing equipment
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Pivotal Lever-Type Welded Butterfly Valve |
| Product Type | Stainless Steel Sanitary Butterfly Valve |
| Material | SS304 / SS316L |
| Valve Type | Butterfly Valve |
| Operation | Manual Lever |
| Connection | Welded |
| Installation | Permanent Welded Connection |
| Surface Finish | Polished / Sanitary Finish |
| Function | Flow Control / Isolation |
| Application | Hygienic Process Piping |
| Customization | Available |
Why Choose Our Pivotal Lever-Type Welded Butterfly Valve?
The Pivotal Lever-Type Welded Butterfly Valve combines a compact butterfly valve structure with manual lever operation and permanent welded connections.
This configuration is particularly suitable for sanitary piping systems where a fixed installation is preferred and frequent removal of the valve is not required.
SS304 and SS316L material options provide flexibility for different processing environments and corrosion-resistance requirements.
FAQ
What is a Pivotal Lever-Type Welded Butterfly Valve used for?
It is used to manually control or isolate fluid flow in sanitary process piping systems.
What does “welded” mean?
The valve is connected to the sanitary pipeline through welded pipe connections, creating a permanent installation.
How is the valve operated?
The valve uses a manual lever to rotate the butterfly disc between open and closed positions.
What materials are available?
Common material options include SS304 and SS316L stainless steel.
Can this butterfly valve be customized?
Yes. Valve size, material, connection configuration, surface finish, and other specifications can be customized according to project requirements.
Request a Quote
Looking for a stainless steel Pivotal Lever-Type Welded Butterfly Valve for your sanitary process piping system?
Contact us for SS304/SS316L options, valve sizes, welded configurations, customized specifications, and quotation.
