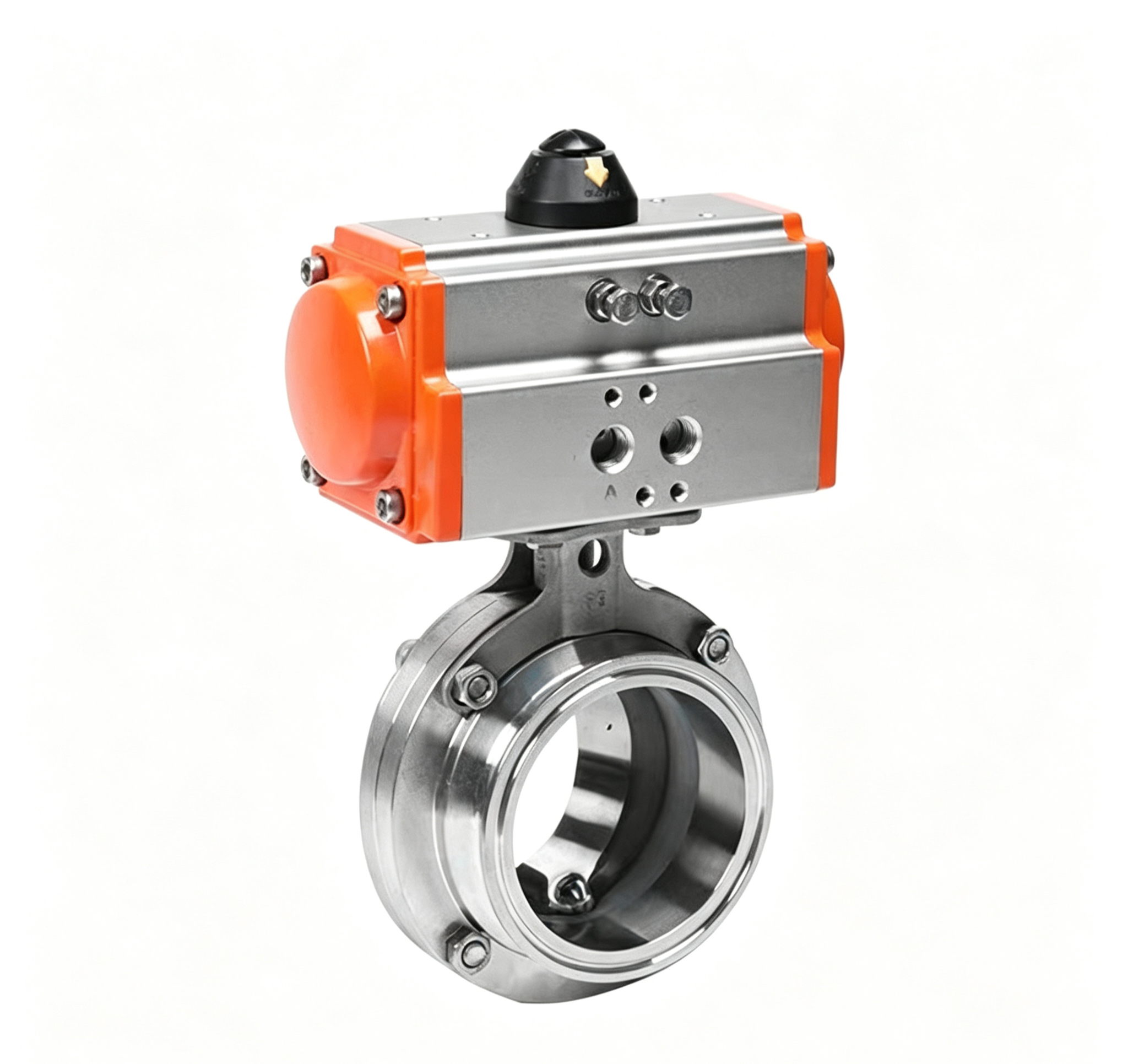

What Is a Quick-Installation Pneumatic Butterfly Valve (Aluminum)?
This valve combines three main features:
- Aluminum pneumatic actuator for automated operation
- Quick-install connection for convenient assembly and disassembly
- Butterfly valve mechanism for flow control and isolation
The aluminum actuator provides a lightweight actuation solution while maintaining compatibility with automated sanitary process systems.
Key Features
- Lightweight aluminum pneumatic actuator
- Quick-install/removable connection
- Pneumatic automated operation
- Butterfly valve design
- Suitable for flow control and isolation
- Convenient installation and maintenance
- Compact actuator configuration
- Suitable for automated process lines
- Stainless steel valve components can be supplied according to configuration
- Custom specifications available
Material and Construction
Aluminum Pneumatic Actuator
The actuator housing is made from aluminum alloy, helping reduce overall actuator weight while providing a practical solution for pneumatic valve automation.
Stainless Steel Valve Body
Depending on the specific configuration, the valve body can be supplied in SS304 or SS316L stainless steel for hygienic process applications.
Applications
The Quick-Installation Pneumatic Butterfly Valve (Aluminum) can be used in:
- Food processing
- Beverage production
- Dairy processing
- Brewing
- Pharmaceutical processing
- Biotech equipment
- Water treatment
- Automated process piping
- Hygienic fluid control
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Quick-Installation Pneumatic Butterfly Valve (Aluminum) |
| Product Type | Pneumatic Butterfly Valve |
| Actuator Material | Aluminum Alloy |
| Valve Body Material | SS304 / SS316L, According to Configuration |
| Valve Type | Butterfly Valve |
| Operating Method | Pneumatic |
| Connection Type | Quick Installation / Removable |
| Actuation | Pneumatic Actuator |
| Function | Flow Control / Flow Isolation |
| Surface Finish | Polished / Sanitary Finish |
| Application | Hygienic / Process Piping |
| Automation | Suitable for Automated Systems |
| Customization | Available |
Note: Exact valve material, actuator specifications, connection dimensions, pressure rating, sealing material and control accessories should be confirmed according to the specific configuration.
Why Choose the Aluminum Pneumatic Version?
The key feature of this configuration is the combination of a lightweight aluminum pneumatic actuator and quick-install butterfly valve.
The aluminum actuator can help reduce actuator weight, while the pneumatic design supports automated valve operation. The quick-install connection makes installation and removal more convenient for maintenance.
Compared with a manually operated quick-install butterfly valve, this version is designed specifically for automated pneumatic control.
FAQ
1. What is the actuator made from?
The pneumatic actuator uses an aluminum alloy housing.
2. Is the valve body stainless steel?
Depending on the configuration, the valve body can be supplied in SS304 or SS316L stainless steel.
3. Is the valve suitable for automated systems?
Yes. The pneumatic actuator is designed for integration with suitable automated process-control systems.
4. What is the advantage of the quick-install connection?
It allows convenient assembly and disassembly, making installation, inspection and maintenance easier.
5. Can the actuator and valve configuration be customized?
Yes. Actuator specifications, valve material, connection configuration and other technical requirements can be customized according to the application.
