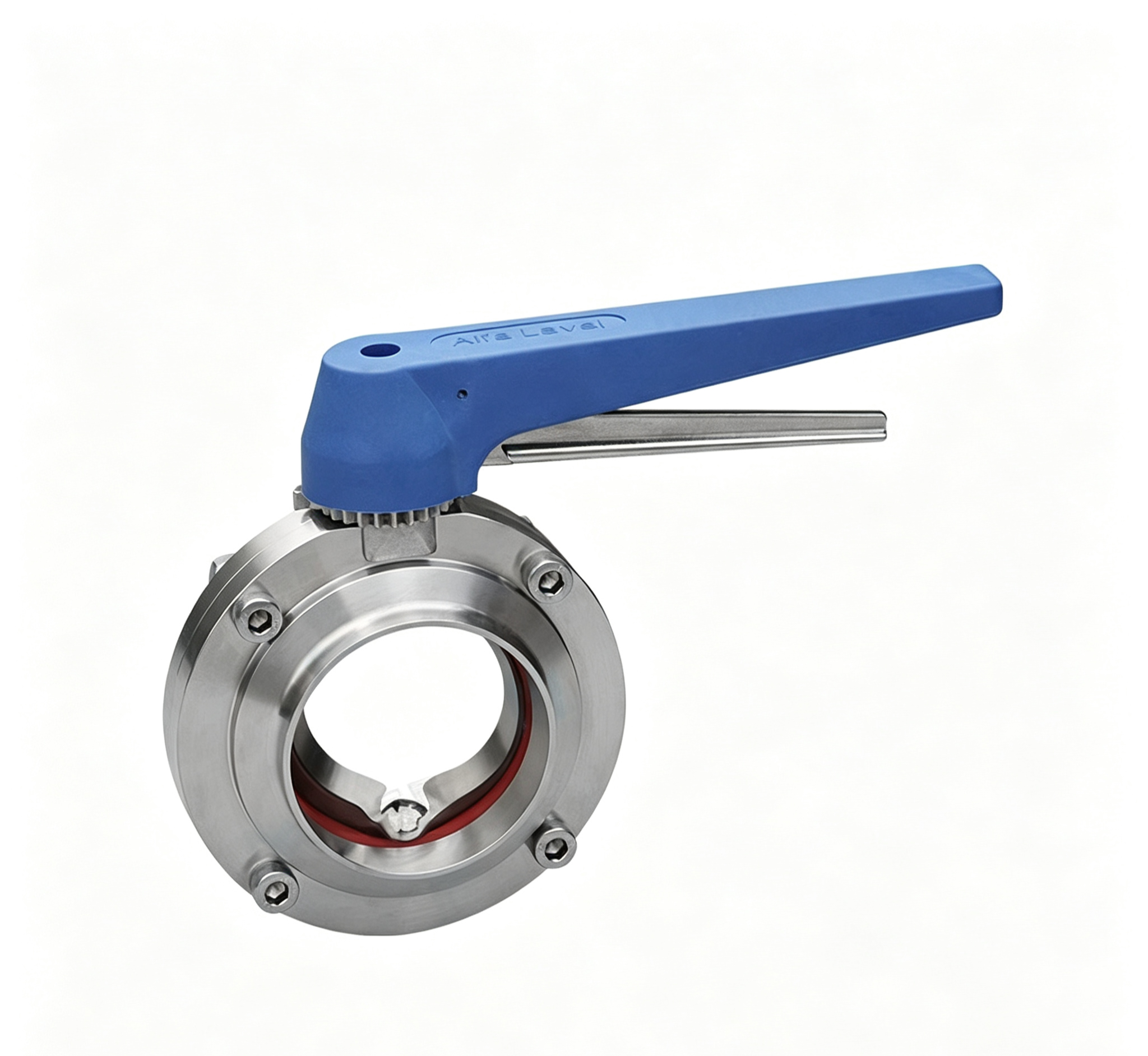

What Is a Manual Welding Butterfly Valve?
A Manual Welding Butterfly Valve combines:
- Manual operation for direct flow control
- Welded connection for permanent installation
- Butterfly valve design for efficient flow isolation and regulation
The welded connection integrates the valve directly into the sanitary pipeline, while the manual handle provides straightforward operation without requiring pneumatic or electric actuation.
Key Features
- Stainless steel sanitary construction
- Available in SS304 and SS316L
- Manual handle operation
- Welded pipe connection
- Permanent installation
- Suitable for flow control and isolation
- Compact butterfly valve structure
- Smooth sanitary surface finish
- No external power or air supply required
- Suitable for hygienic process piping
- Custom configurations available
Material Options
SS304 Stainless Steel
SS304 provides good corrosion resistance and is commonly used in food, beverage, water and general sanitary processing systems.
SS316L Stainless Steel
SS316L offers enhanced corrosion resistance and is suitable for demanding dairy, pharmaceutical, biotech and other hygienic process environments.
Applications
The Manual Welding Butterfly Valve can be used in:
- Food processing
- Beverage production
- Dairy processing
- Brewing systems
- Pharmaceutical manufacturing
- Biotech equipment
- Hygienic water systems
- Sanitary process piping
- Fluid flow control and isolation
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Manual Welding Butterfly Valve |
| Product Type | Stainless Steel Sanitary Butterfly Valve |
| Material | SS304 / SS316L |
| Valve Type | Butterfly Valve |
| Operating Method | Manual |
| Handle Type | Manual Handle / According to Configuration |
| Connection Type | Welded |
| Installation | Permanent Welded Connection |
| Function | Flow Control / Flow Isolation |
| Surface Finish | Polished / Sanitary Finish |
| Application | Hygienic Process Piping |
| Industries | Food, Beverage, Dairy, Brewing, Pharmaceutical |
| Customization | Available |
Note: Exact dimensions, welding specifications, handle configuration, sealing materials and pressure ratings should be confirmed according to the specific valve model.
Why Choose the Manual Welding Butterfly Valve?
The main advantage of this valve is its combination of manual operation and permanent welded installation.
The manual design provides simple and direct operation without pneumatic or electrical equipment, while the welded connection is suitable for fixed sanitary piping systems.
Compared with a Pneumatic Welding Butterfly Valve, this model does not require a pneumatic actuator and is designed for manual operation.
FAQ
1. What materials are available?
The valve is available in SS304 and SS316L stainless steel.
2. Is the valve manually operated?
Yes. It is designed for manual operation, typically using a suitable manual handle configuration.
3. What type of connection does it use?
The valve uses a welded connection for permanent installation in compatible sanitary piping.
4. Does it require compressed air or electricity?
No. The manual configuration does not require a pneumatic air supply or electrical actuator.
5. Can the valve be customized?
Yes. Material, size, welding configuration, handle type, surface finish and other specifications can be customized according to project requirements.
Request a Quote
Looking for a Manual Welding Butterfly Valve for your sanitary process piping system?
Send us your required size, material, welding connection and application, and we can provide a suitable stainless steel sanitary valve configuration.
