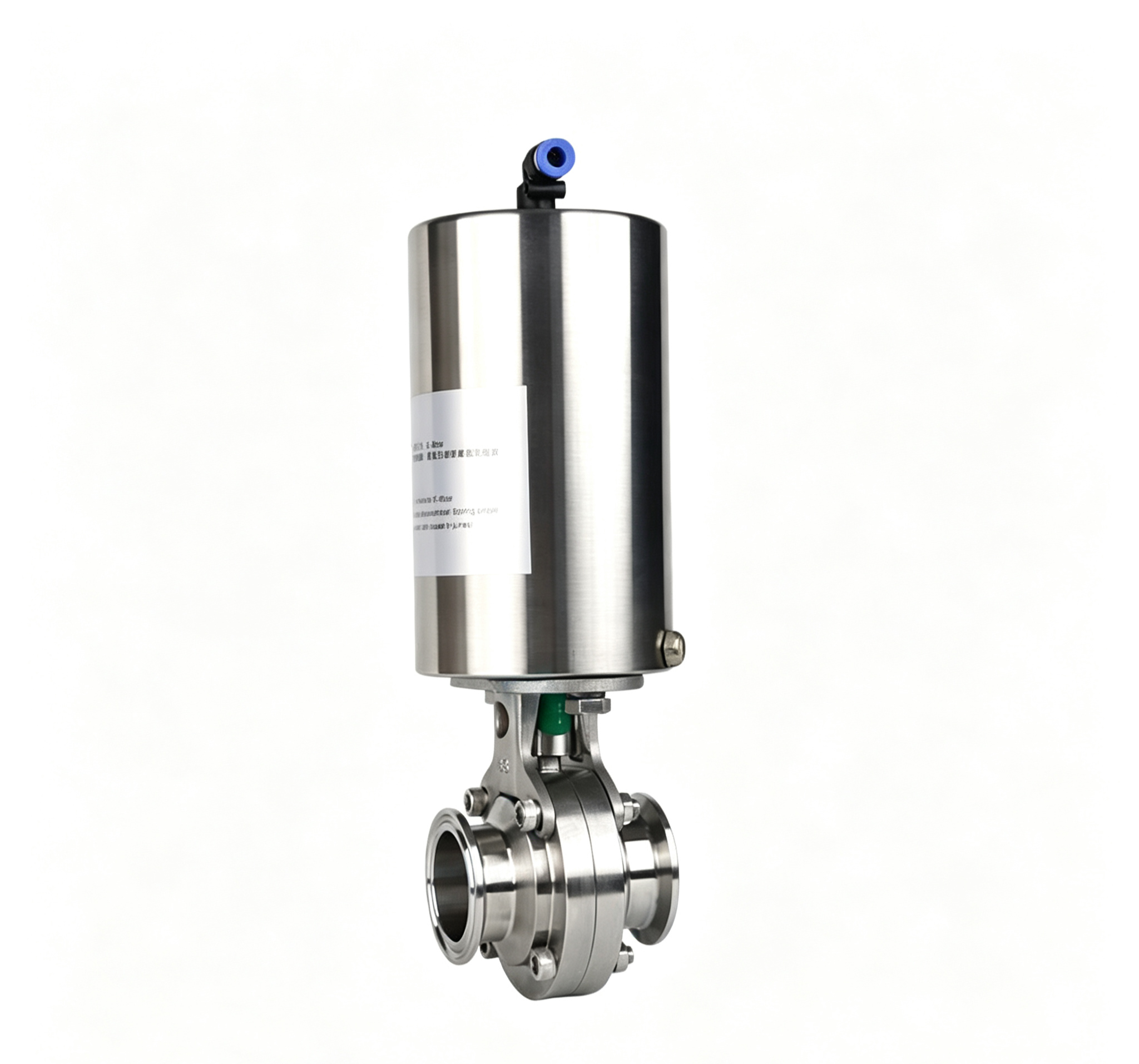

What Is a Sanitary Pneumatic Quick-Release Butterfly Valve?
A sanitary pneumatic quick-release butterfly valve combines a butterfly valve, pneumatic actuator, and quick-release sanitary connection.
Compressed air operates the valve, while the quick-release connection allows convenient installation, removal, and maintenance. This makes it suitable for automated process lines where both fast servicing and remote valve operation are required.
Key Features
- Sanitary stainless steel construction
- Available in SS304 and SS316L
- Pneumatic actuator for automated operation
- Quick-release and removable connection
- Compact butterfly valve structure
- Suitable for flow control and isolation
- Convenient installation and maintenance
- Polished or sanitary surface finish
- Suitable for automated hygienic process systems
- Custom configurations available
Stainless Steel Material Options
SS304 Stainless Steel
SS304 is commonly used in food, beverage, dairy, brewing, and general hygienic processing applications.
SS316L Stainless Steel
SS316L provides enhanced corrosion resistance and is commonly selected for pharmaceutical, biotech, and demanding sanitary process environments.
Applications
The valve is suitable for:
- Food processing systems
- Beverage production lines
- Dairy processing
- Brewing equipment
- Pharmaceutical manufacturing
- Biotechnology processing
- Hygienic liquid transfer
- Sanitary water systems
- Automated process piping
- Tank and vessel flow control
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Sanitary Pneumatic Quick-Release Butterfly Valve |
| Product Type | Stainless Steel Sanitary Butterfly Valve |
| Material | SS304 / SS316L |
| Valve Type | Butterfly Valve |
| Operating Method | Pneumatic |
| Actuation | Pneumatic Actuator |
| Connection Type | Quick-Release / Removable |
| Installation | Quick-Release Connection |
| Function | Flow Control / Flow Isolation |
| Surface Finish | Polished / Sanitary Finish |
| Application | Hygienic Process Piping |
| Automation | Suitable for Automated Systems |
| Customization | Available |
Why Choose a Pneumatic Quick-Release Butterfly Valve?
This configuration combines two important functions: automated pneumatic operation and convenient quick-release maintenance.
Compared with a manually operated sanitary butterfly valve, the pneumatic version can be integrated into an automated control system. Compared with a welded butterfly valve, the quick-release configuration allows easier valve removal and servicing.
Pneumatic vs. Manual Butterfly Valve
| Feature | Pneumatic Quick-Release Butterfly Valve | Manual Butterfly Valve |
|---|---|---|
| Operation | Pneumatic | Manual |
| Automation | Suitable | Limited |
| Installation | Quick-Release | Depends on configuration |
| Maintenance | Convenient | Convenient |
| Flow Control | Automated / Remote | Manual |
| Typical Use | Automated process systems | Manual process systems |
FAQ
What is a sanitary pneumatic quick-release butterfly valve?
It is a stainless steel sanitary butterfly valve operated by a pneumatic actuator and equipped with a quick-release connection for convenient installation and maintenance.
What materials are available?
The valve can be supplied in SS304 or SS316L stainless steel, depending on process requirements.
Can it be used for automated flow control?
Yes. The pneumatic actuator allows the valve to be integrated into suitable automated process-control systems.
What is the advantage of the quick-release connection?
It allows the valve to be removed and serviced more conveniently than a permanently welded valve connection.
Is SS316L suitable for pharmaceutical applications?
SS316L is commonly selected for pharmaceutical and other demanding hygienic process applications, subject to the specific process requirements.
Can the pneumatic actuator configuration be customized?
Yes. Actuator configuration, valve material, connection type, dimensions, surface finish, and other specifications can be customized according to project requirements.
