What Is a Sanitary Sight Glass?
A sanitary sight glass is a visual inspection fitting installed in a process pipeline. The transparent glass section allows operators to observe fluid flow, product condition, and process operation directly.

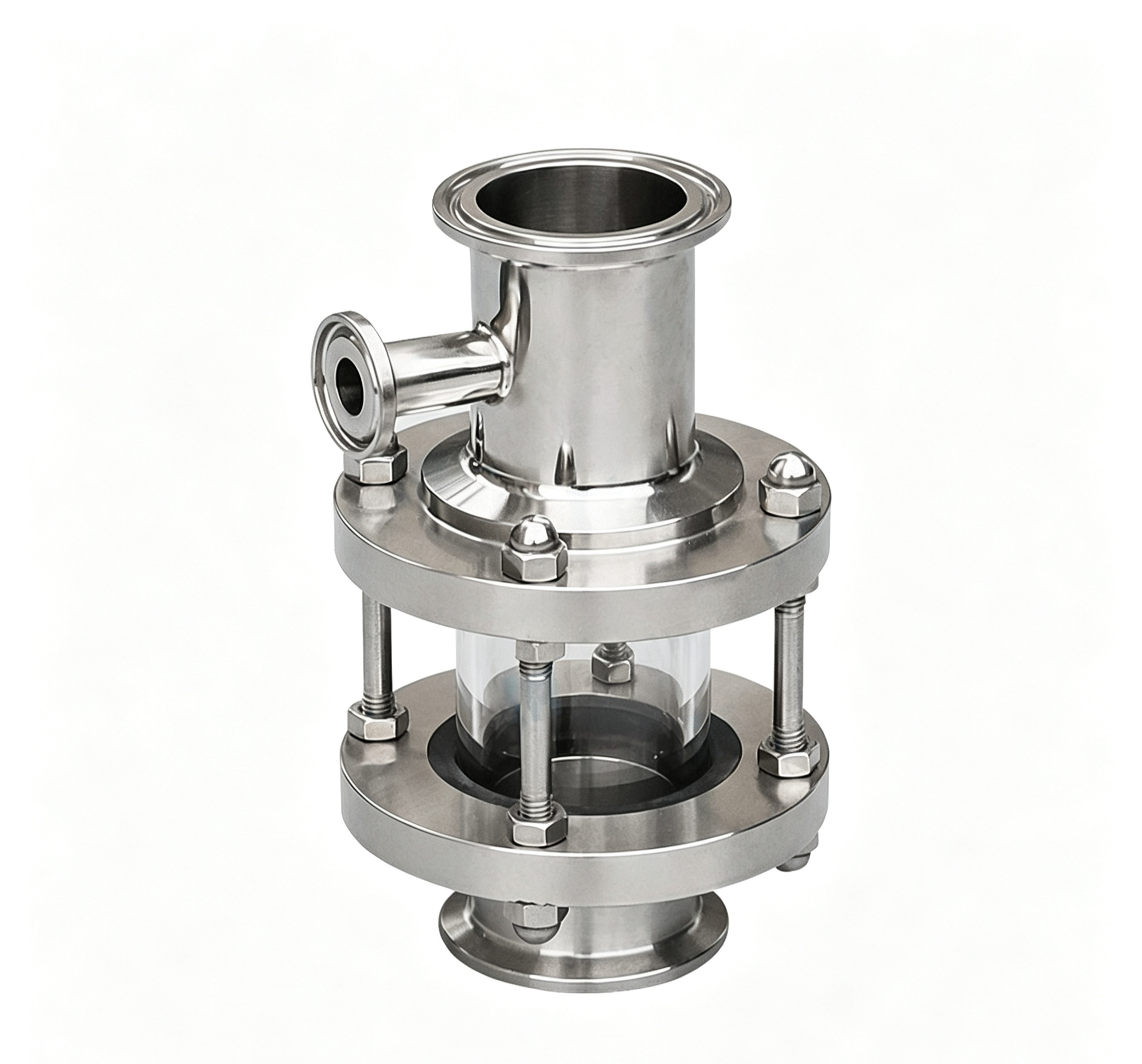

This design features a stainless steel body with a transparent viewing section secured between flanged sections. The side connection can be used according to the specific product configuration.
304 Stainless Steel
SS304 provides good corrosion resistance and is suitable for general food, beverage, dairy, and hygienic process applications.
316L Stainless Steel
SS316L offers enhanced corrosion resistance and is commonly selected for pharmaceutical, biotechnology, and more demanding sanitary process systems.
Key Features
- Clear visual observation of process media
- Stainless steel sanitary construction
- Transparent glass viewing section
- Bolted body design for convenient inspection and maintenance
- Hygienic internal structure
- Good corrosion resistance
- Suitable for sanitary process piping
- Available with customized connection configurations
- SS304 and SS316L material options
Applications
Sanitary sight glasses are commonly used in:
- Food processing
- Beverage production
- Dairy processing
- Brewing systems
- Pharmaceutical manufacturing
- Biotechnology
- Cosmetics production
- Liquid processing systems
- Hygienic process piping
- Stainless steel process equipment
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Sanitary Sight Glass |
| Product Type | Stainless Steel Hygienic Sight Glass |
| Material | SS304 / SS316L |
| Viewing Section | Transparent Glass |
| Body Structure | Bolted / Flanged Construction |
| Connection | Flanged / Customized |
| Side Port | Available According to Configuration |
| Surface Finish | Polished / Sanitary Finish |
| Application | Visual Flow Inspection |
| Industries | Food, Beverage, Dairy, Brewing, Pharmaceutical, Biotechnology |
| Customization | Available |
Why Choose a Sanitary Sight Glass?
The main advantage of a sanitary sight glass is that it allows operators to visually inspect the process without opening the piping system.
The transparent viewing section can help operators monitor fluid movement, flow condition, and product appearance, making it useful for process monitoring and equipment inspection.
The exact glass material, sealing components, pressure rating, connection size, and operating temperature should be selected according to the actual process requirements.
FAQ
What is a sanitary sight glass used for?
A sanitary sight glass is used to visually monitor fluid flow and process conditions inside a hygienic pipeline.
What material is the sight glass available in?
The stainless steel body can typically be supplied in SS304 or SS316L, depending on the application.
Can the sight glass be used in pharmaceutical systems?
Yes. With suitable materials, surface finish, sealing components, and connection configuration, it can be used in pharmaceutical and biotechnology process systems.
What is the transparent part made of?
The viewing section uses transparent glass. The exact glass specification should be selected according to the operating temperature, pressure, and process medium.
Can the connection be customized?
Yes. Connection type, dimensions, material, surface finish, and other specifications can be customized according to project requirements.
Request a Quote
Looking for a stainless steel sanitary sight glass for your process piping system?
Send us your required size, material, connection type, process medium, temperature, and pressure, and we can recommend a suitable configuration.
