What Is a Viewing Mirror?
A Viewing Mirror, also commonly called a Sanitary Sight Glass, is a pipeline inspection fitting that provides direct visual observation of the process medium.
The transparent glass section allows operators to observe:
- Fluid flow
- Product movement
- Flow interruption
- General process conditions
- Product appearance

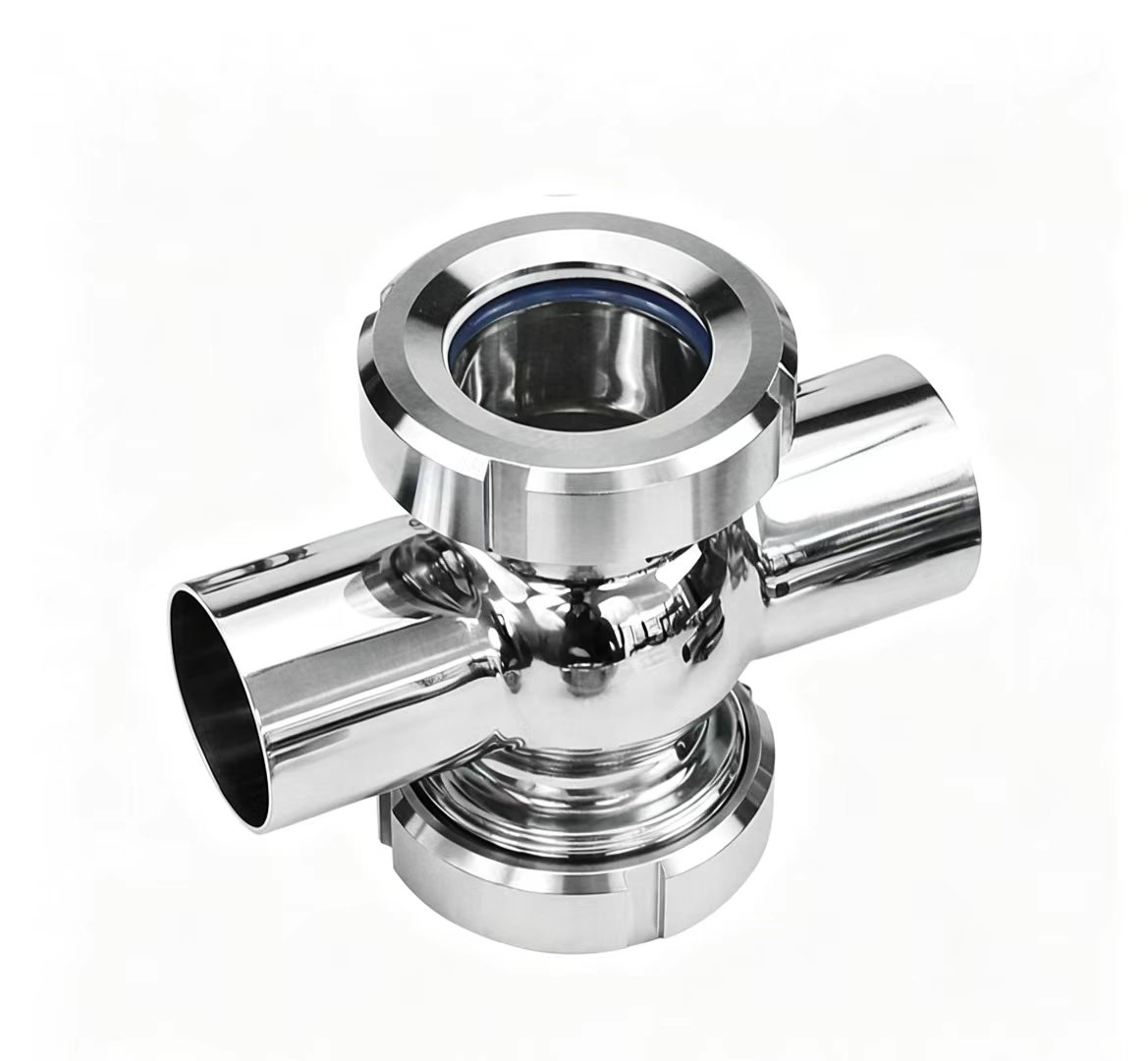

The pictured design features a stainless steel body, transparent viewing section, bolted construction, and sanitary pipe connections.
Key Features
- Transparent viewing window
- Stainless steel SS304 / SS316L construction
- Direct visual flow inspection
- Hygienic sanitary design
- Bolted construction
- Convenient inspection and maintenance
- Good corrosion resistance
- Polished sanitary surface
- Suitable for hygienic process piping
- Customized connection configurations available
Applications
The Viewing Mirror is commonly used in:
- Food processing
- Beverage production
- Dairy processing
- Brewing systems
- Pharmaceutical manufacturing
- Biotechnology
- Cosmetics production
- Liquid processing equipment
- Hygienic process piping
- Stainless steel process equipment
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Viewing Mirror |
| Technical Name | Sanitary Sight Glass |
| Product Type | Stainless Steel Sanitary Sight Glass |
| Material | SS304 / SS316L |
| Viewing Section | Transparent Glass |
| Body Construction | Stainless Steel Bolted Construction |
| Connection | Sanitary / Flanged / Customized |
| Surface Finish | Polished / Sanitary Finish |
| Function | Visual Flow Inspection |
| Application | Hygienic Process Piping |
| Industries | Food, Beverage, Dairy, Brewing, Pharmaceutical, Biotechnology |
| Customization | Available |
Why Choose a Viewing Mirror?
The main advantage of a Viewing Mirror / Sanitary Sight Glass is the ability to visually monitor a closed process line without opening the piping system.
The stainless steel body provides corrosion resistance, while the transparent viewing section helps operators monitor fluid movement and process conditions during production.
The exact glass material, gasket, connection size, pressure rating, and temperature range should be selected according to the actual process requirements.
FAQ
What is a Viewing Mirror used for?
A Viewing Mirror is used to visually inspect fluid flow and process conditions inside a sanitary pipeline.
Is a Viewing Mirror the same as a sanitary sight glass?
For sanitary piping applications, Sanitary Sight Glass is the more widely recognized technical term. “Viewing Mirror” can be retained as the catalog or product name.
Is it available in SS304 and SS316L?
Yes. The stainless steel body can be supplied in SS304 or SS316L according to application requirements.
Can it be used in pharmaceutical piping?
Yes. With appropriate materials, sealing components, surface finish, and connection configuration, it can be used in pharmaceutical and biotechnology process systems.
Can the Viewing Mirror be customized?
Yes. Size, connection configuration, material, surface finish, and other specifications can be customized according to project requirements.
Request a Quote
Looking for a Viewing Mirror / Stainless Steel Sanitary Sight Glass for your process piping system?
Send us your required size, material, connection type, process medium, temperature, and pressure, and we can recommend a suitable configuration.
