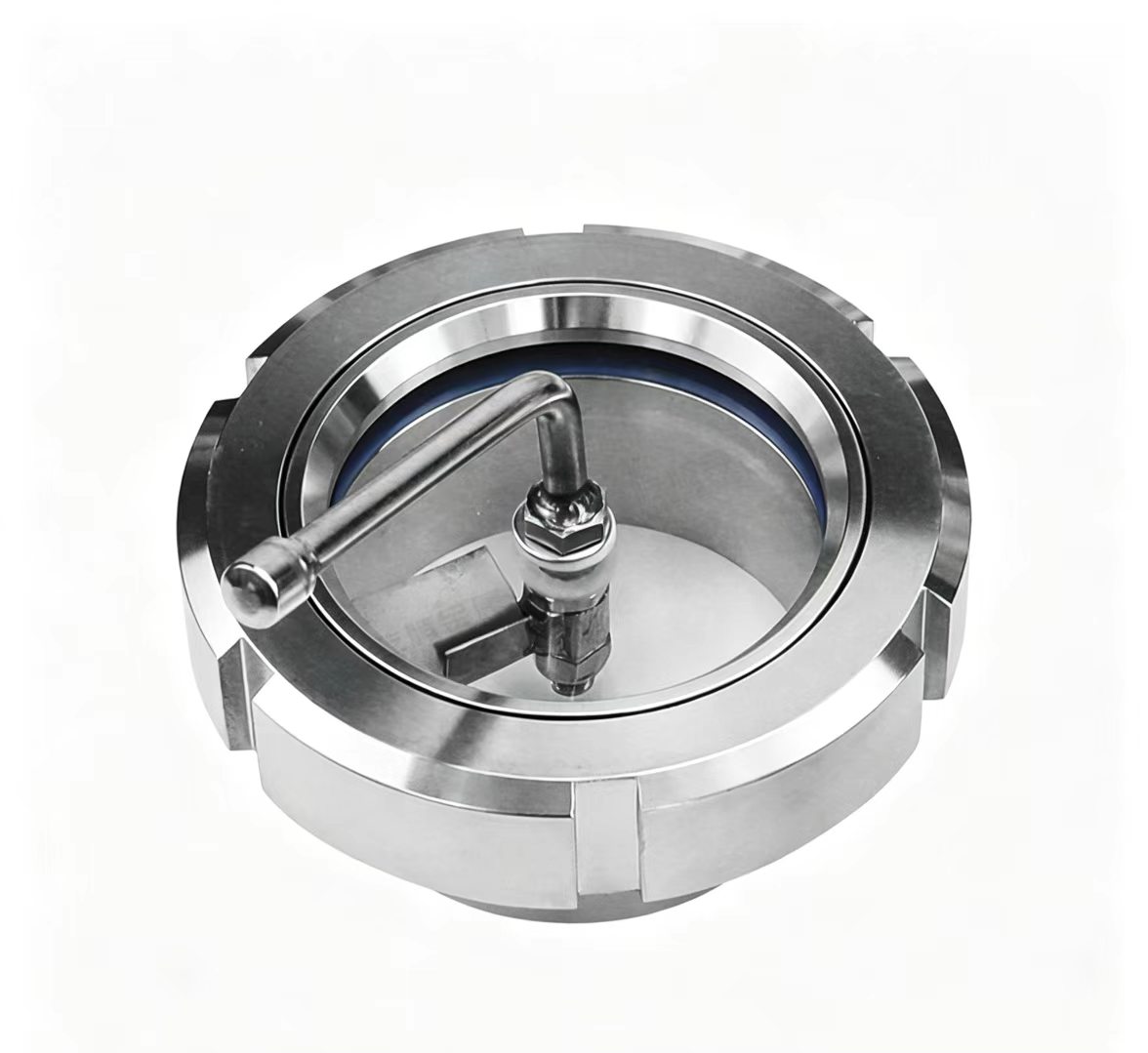

What Is a Viewing Mirror?
A viewing mirror, also commonly described as a sanitary sight glass or pipeline sight glass, is installed in a process pipeline to provide direct visual access to the process medium.
It allows operators to observe:
- Fluid flow
- Product movement
- Process condition
- Flow interruption
- General appearance of the process medium
The exact glass, gasket, connection, and pressure configuration should be selected according to the application.
Key Features
- Clear viewing window
- Stainless steel SS304 / SS316L construction
- Direct visual inspection of process media
- Hygienic sanitary design
- Bolted construction for convenient inspection and maintenance
- Good corrosion resistance
- Suitable for stainless steel process piping
- Multiple connection configurations available
- Custom sizes and specifications available
Applications
The Viewing Mirror can be used in:
- Food processing
- Beverage production
- Dairy processing
- Brewing systems
- Pharmaceutical manufacturing
- Biotechnology
- Cosmetics production
- Liquid processing systems
- Hygienic process piping
- Stainless steel process equipment
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Viewing Mirror |
| Common Industry Term | Sanitary Sight Glass |
| Product Type | Stainless Steel Hygienic Sight Glass |
| Material | SS304 / SS316L |
| Viewing Section | Transparent Glass |
| Body Structure | Stainless Steel Bolted Construction |
| Connection | Flanged / Customized |
| Surface Finish | Polished / Sanitary Finish |
| Function | Visual Flow Inspection |
| Application | Hygienic Process Piping |
| Customization | Available |
Why Choose a Viewing Mirror?
The main advantage of a Viewing Mirror / Sanitary Sight Glass is the ability to visually monitor a process without opening the pipeline.
This makes it useful for production lines where operators need to observe fluid movement and process conditions while maintaining a closed sanitary piping system.
FAQ
What is a viewing mirror used for?
A viewing mirror is used to visually inspect fluid flow and process conditions inside a pipeline.
Is a viewing mirror the same as a sight glass?
In sanitary piping applications, “sanitary sight glass” or “pipeline sight glass” is generally a more standard technical term for this type of product.
Is it available in SS304 and SS316L?
Yes. The stainless steel body can be supplied in SS304 or SS316L according to application requirements.
Can it be used in pharmaceutical piping?
Yes. With appropriate materials, sealing components, surface finish, and connection configuration, it can be used in pharmaceutical and biotechnology process systems.
Can the viewing mirror be customized?
Yes. Size, connection configuration, material, surface finish, and other specifications can be customized according to project requirements.
Request a Quote
Looking for a Viewing Mirror / Sanitary Sight Glass for your stainless steel process piping system?
Send us your required size, material, connection type, process medium, temperature, and pressure, and we can recommend a suitable configuration.
